Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
41J2K2RES 2.2K OHM 5% 1W AXIAL Ohmite |
1,215 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 2.2 kOhms | ±5% | 1W | Wirewound | - | ±20ppm/°C | - | Axial | 0.126" Dia x 0.437" L (3.20mm x 11.10mm) | - | 2 | - |
|
45J3K0E5W 3K0 OHMS SILICONE 5% Ohmite |
3,133 |
|
Datasheet |
Ohmicone® 40 | Box | Active | 3 kOhms | ±5% | 5W | Wirewound | - | ±20ppm/°C | -55°C ~ 275°C | Axial | 0.343" Dia x 0.937" L (8.70mm x 23.80mm) | - | 2 | - |
|
TA303PA1K00JERES 1K OHM 5% 3W POWERCHIP Ohmite |
3,461 |
|
Datasheet |
Power Chip® TA | Bulk | Active | 1 kOhms | ±5% | 3W | Thick Film | - | ±50ppm/°C | -55°C ~ 180°C | Powerchip® | 0.500" L x 0.100" W (12.70mm x 2.54mm) | 0.620" (15.75mm) | 2 | - |
|

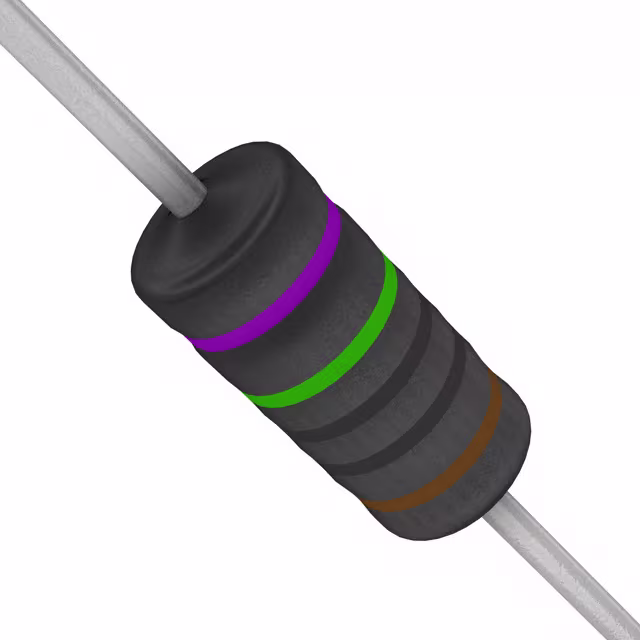

WHB750FETRES 750 OHM 1% 1W AXIAL Ohmite |
2,290 |
|
Datasheet |
WH | Tape & Reel (TR) | Active | 750 Ohms | ±1% | 1W | Wirewound | - | ±20ppm/°C | -55°C ~ 150°C | Axial | 0.130" Dia x 0.276" L (3.30mm x 7.00mm) | - | 2 | - |
|
TA303PA10K0JERES 10K OHM 5% 3W POWERCHIP Ohmite |
1,089 |
|
Datasheet |
Power Chip® TA | Bulk | Active | 10 kOhms | ±5% | 3W | Thick Film | - | ±50ppm/°C | -55°C ~ 180°C | Powerchip® | 0.500" L x 0.100" W (12.70mm x 2.54mm) | 0.620" (15.75mm) | 2 | - |
|
27J1R0RES 1 OHM 5% 7W AXIAL Ohmite |
4,314 |
|
Datasheet |
20 | Bulk | Active | 1 Ohms | ±5% | 7W | Wirewound | Flame Retardant Coating, Safety | ±50ppm/°C | - | Axial | 0.394" Dia x 1.264" L (10.00mm x 32.10mm) | - | 2 | - |
|
45FR30E5W 0.3 OHMS SILICONE 1% Ohmite |
4,595 |
|
Datasheet |
Ohmicone® 40 | Box | Active | 300 mOhms | ±1% | 5W | Wirewound | - | ±90ppm/°C | -55°C ~ 275°C | Axial | 0.343" Dia x 0.937" L (8.70mm x 23.80mm) | - | 2 | - |
|
OC2K6R8ERES 6.8 OHM 10% AXIAL Ohmite |
2,454 |
|
Datasheet |
OC | Bulk | Active | 6.8 Ohms | ±10% | - | Ceramic | High Voltage, Pulse Withstanding | 0/ -800ppm/°C | -55°C ~ 230°C | Axial | 0.311" Dia x 0.752" L (7.90mm x 19.10mm) | - | 2 | - |
|
|
OC2K333E-TRRES 33K OHM 10% 1W AXIAL Ohmite |
3,328 |
|
Datasheet |
OC | Tape & Reel (TR) | Obsolete | 33 kOhms | ±10% | 1W | Ceramic | High Voltage, Pulse Withstanding | 0/ -800ppm/°C | -55°C ~ 230°C | Axial | 0.311" Dia x 0.752" L (7.90mm x 19.10mm) | - | 2 | - |
|
|
TA303PA1K50JERES 1.5K OHM 5% 3W POWERCHIP Ohmite |
4,277 |
|
Datasheet |
Power Chip® TA | Bulk | Active | 1.5 kOhms | ±5% | 3W | Thick Film | - | ±50ppm/°C | -55°C ~ 180°C | Powerchip® | 0.500" L x 0.100" W (12.70mm x 2.54mm) | 0.620" (15.75mm) | 2 | - |
