Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B8J9K0E8W 9000 OHMS VIT 5% Ohmite |
3,287 |
|
Datasheet |
Brown Devil® 200 | Box | Active | 9 kOhms | ±5% | 8W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | Axial | 0.313" Dia x 1.000" L (7.94mm x 25.40mm) | - | 2 | - |
|
21J5R0E1W 5 OHMS VITREOUS 5% Ohmite |
2,688 |
|
Datasheet |
20 | Bulk | Active | 5 Ohms | ±5% | 1W | Wirewound | Flame Retardant Coating, Safety | ±50ppm/°C | - | Axial | 0.157" Dia x 0.421" L (4.00mm x 10.70mm) | - | 2 | - |
|

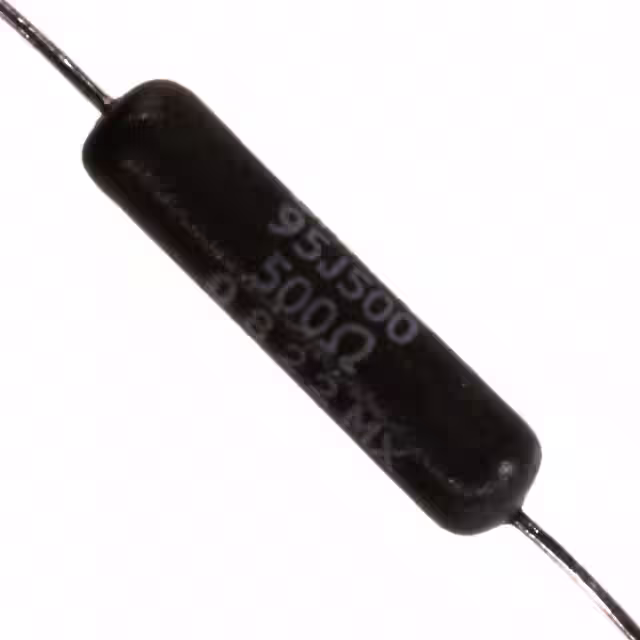

95J500RES 500 OHM 5% 5W AXIAL Ohmite |
3,010 |
|
Datasheet |
90 | Bulk | Active | 500 Ohms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.264" Dia x 0.969" L (6.70mm x 24.60mm) | - | 2 | - |
|
B5J2K4RES 2.4K OHM 5% 5.25W AXIAL Ohmite |
4,411 |
|
Datasheet |
Brown Devil® 200 | Bulk | Active | 2.4 kOhms | ±5% | 5.25W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | Axial | 0.250" Dia x 0.625" L (6.35mm x 15.88mm) | - | 2 | - |
|
95J6005W 600 OHMS VIT MOLD 5% Ohmite |
1,324 |
|
Datasheet |
90 | Box | Active | 600 Ohms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.264" Dia x 0.969" L (6.70mm x 24.60mm) | - | 2 | - |
|
B5J4K75.25W 4700 OHMS VIT 5% Ohmite |
4,521 |
|
Datasheet |
Brown Devil® 200 | Box | Active | 4.7 kOhms | ±5% | 5.25W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | Axial | 0.250" Dia x 0.625" L (6.35mm x 15.88mm) | - | 2 | - |
|
B5J2K05.25W 2000 OHMS VIT 5% Ohmite |
1,633 |
|
Datasheet |
Brown Devil® 200 | Box | Active | 2 kOhms | ±5% | 5.25W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | Axial | 0.250" Dia x 0.625" L (6.35mm x 15.88mm) | - | 2 | - |
|
13FPR075ERES 0.075 OHM 1% 3W AXIAL Ohmite |
1,736 |
|
Datasheet |
10 | Bulk | Active | 75 mOhms | ±1% | 3W | Metal Element | Current Sense, Non-Inductive | ±50ppm/°C | -55°C ~ 200°C | Axial | 0.200" Dia x 0.626" L (5.08mm x 15.90mm) | - | 4 | - |
|
|
13FPR060ERES 0.06 OHM 1% 3W AXIAL Ohmite |
3,205 |
|
Datasheet |
10 | Bulk | Active | 60 mOhms | ±1% | 3W | Metal Element | Current Sense, Non-Inductive | ±50ppm/°C | -55°C ~ 200°C | Axial | 0.200" Dia x 0.626" L (5.08mm x 15.90mm) | - | 4 | - |
|
|
13FPR070ERES 0.07 OHM 1% 3W AXIAL Ohmite |
1,819 |
|
Datasheet |
10 | Bulk | Active | 70 mOhms | ±1% | 3W | Metal Element | Current Sense, Non-Inductive | ±50ppm/°C | -55°C ~ 200°C | Axial | 0.200" Dia x 0.626" L (5.08mm x 15.90mm) | - | 4 | - |
