Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

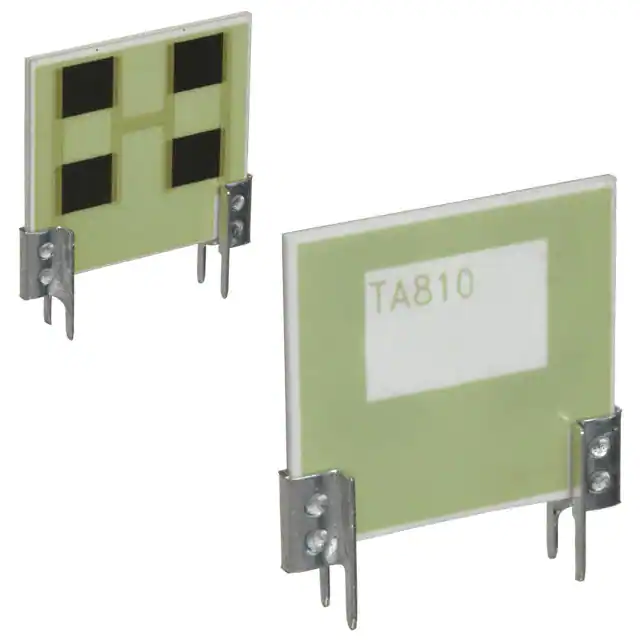

TA810PW510RJERES 510 OHM 5% 10W POWERCHIP Ohmite |
3,651 |
|
Datasheet |
Power Chip® TA | Bulk | Active | 510 Ohms | ±5% | 10W | Thick Film | - | ±50ppm/°C | -55°C ~ 180°C | Powerchip® | 1.085" L x 0.240" W (27.56mm x 6.10mm) | 1.020" (25.91mm) | 4 | - |
|
TA310PA10K0JERES 10K OHM 5% 10W POWERCHIP Ohmite |
1,048 |
|
Datasheet |
Power Chip® TA | Bulk | Active | 10 kOhms | ±5% | 10W | Thick Film | - | ±50ppm/°C | -55°C ~ 180°C | Powerchip® | 1.000" L x 0.100" W (25.40mm x 2.54mm) | 1.020" (25.91mm) | 2 | - |
|
TA310PA1K50JERES 1.5K OHM 5% 10W POWERCHIP Ohmite |
4,444 |
|
Datasheet |
Power Chip® TA | Bulk | Active | 1.5 kOhms | ±5% | 10W | Thick Film | - | ±50ppm/°C | -55°C ~ 180°C | Powerchip® | 1.000" L x 0.100" W (25.40mm x 2.54mm) | 1.020" (25.91mm) | 2 | - |
|
MOX-750231003JERES 100K OHM 5% 1W AXIAL Ohmite |
3,129 |
|
Datasheet |
Mini-Mox | Bulk | Active | 100 kOhms | ±5% | 1W | Thick Film | High Voltage | ±25ppm/°C | -55°C ~ 220°C | Axial | 0.165" Dia x 0.880" L (4.19mm x 22.35mm) | - | 2 | - |
|
81F2K0RES 2K OHM 1% 1W AXIAL Ohmite |
3,424 |
|
Datasheet |
Acrasil® 80 | Bulk | Active | 2 kOhms | ±1% | 1W | Wirewound | - | ±20ppm/°C | - | Axial | 0.126" Dia x 0.437" L (3.20mm x 11.10mm) | - | 2 | - |
|
|
81F3K011W 3K01 OHMS SILICONE 1% Ohmite |
2,637 |
|
Datasheet |
Acrasil® 80 | Box | Active | 3.01 kOhms | ±1% | 1W | Wirewound | - | ±20ppm/°C | - | Axial | 0.126" Dia x 0.437" L (3.20mm x 11.10mm) | - | 2 | - |
|
SM204032003JESLIM-MOX204, 200K OHM, 5% Ohmite |
2,807 |
|
Datasheet |
Mini-Mox | Bulk | Active | 200 kOhms | ±5% | 2W | Thick Film | Current Sense, High Voltage, Non-Inductive | 50ppm/°C | -55°C ~ 110°C | Radial | 1.080" L x 0.100" W (27.43mm x 2.54mm) | - | 2 | - |
|
B12J20KRES 20K OHM 5% 12W AXIAL Ohmite |
3,934 |
|
Datasheet |
Brown Devil® 200 | Bulk | Active | 20 kOhms | ±5% | 12W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | - | 0.313" Dia x 1.750" L (7.94mm x 44.45mm) | - | 2 | - |
|
90J1R2ERES 1.2 OHM 5% 11W AXIAL Ohmite |
4,536 |
|
Datasheet |
90 | Bulk | Active | 1.2 Ohms | ±5% | 11W | Wirewound | Flame Retardant Coating, Safety | ±100ppm/°C | - | Axial | 0.343" Dia x 1.811" L (8.70mm x 46.00mm) | - | 2 | - |
|
90J2R0ERES 2 OHM 5% 11W AXIAL Ohmite |
1,878 |
|
Datasheet |
90 | Bulk | Active | 2 Ohms | ±5% | 11W | Wirewound | Flame Retardant Coating, Safety | ±100ppm/°C | - | Axial | 0.343" Dia x 1.811" L (8.70mm x 46.00mm) | - | 2 | - |
