Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B8J22K5ERES 22.5K OHM 5% 8W AXIAL Ohmite |
4,510 |
|
Datasheet |
Brown Devil® 200 | Bulk | Active | 22.5 kOhms | ±5% | 8W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | Axial | 0.313" Dia x 1.000" L (7.94mm x 25.40mm) | - | 2 | - |
|
|
B8J20KE8W 20000 OHMS VIT 5% Ohmite |
2,546 |
|
Datasheet |
Brown Devil® 200 | Box | Active | 20 kOhms | ±5% | 8W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | Axial | 0.313" Dia x 1.000" L (7.94mm x 25.40mm) | - | 2 | - |
|
B8J25KE8W 25000 OHMS VIT 5% Ohmite |
2,201 |
|
Datasheet |
Brown Devil® 200 | Box | Active | 25 kOhms | ±5% | 8W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | Axial | 0.313" Dia x 1.000" L (7.94mm x 25.40mm) | - | 2 | - |
|
AP101 3K3 J100 WATTS TO-247 THICK FILMNN3.3 Ohmite |
4,366 |
|
Datasheet |
ARCOL, AP101 | Tube | Active | 3.3 kOhms | ±5% | 100W | Thick Film | Moisture Resistant, Non-Inductive | ±100ppm/°C | -65°C ~ 175°C | TO-247 | 0.620" L x 0.195" W (15.75mm x 4.95mm) | 0.965" (24.51mm) | 2 | - |
|

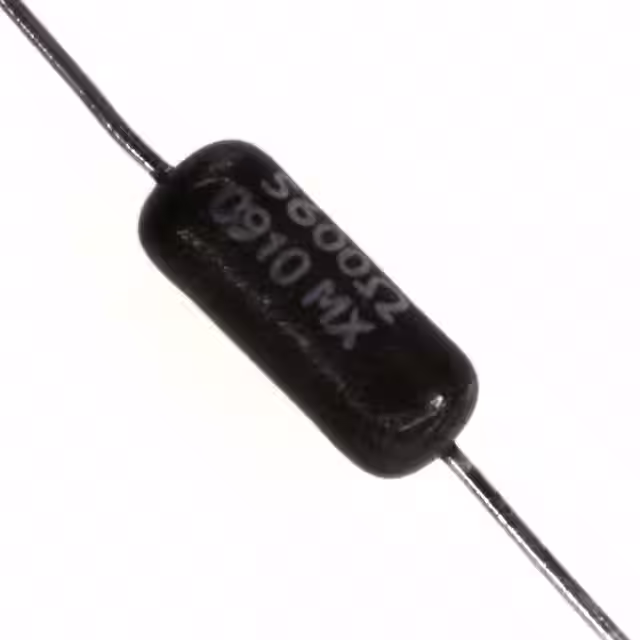

93J5K6RES 5.6K OHM 5% 3.25W AXIAL Ohmite |
3,486 |
|
Datasheet |
90 | Bulk | Active | 5.6 kOhms | ±5% | 3.25W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.233" Dia x 0.579" L (5.90mm x 14.70mm) | - | 2 | - |
|
93J5K03.25W 5K0 OHMS VIT MOLD 5% Ohmite |
3,331 |
|
Datasheet |
90 | Box | Active | 5 kOhms | ±5% | 3.25W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.232" Dia x 0.579" L (5.90mm x 14.70mm) | - | 2 | - |
|
80F75K10W 75K OHMS SILICONE 1% Ohmite |
1,201 |
|
Datasheet |
Acrasil® 80 | Box | Active | 75 kOhms | ±1% | 10W | Wirewound | - | ±20ppm/°C | - | Axial | 0.406" Dia x 1.843" L (10.30mm x 46.80mm) | - | 2 | - |
|
93J8K03.25W 8K0 OHMS VIT MOLD 5% Ohmite |
3,012 |
|
Datasheet |
90 | Box | Active | 8 kOhms | ±5% | 3.25W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.232" Dia x 0.579" L (5.90mm x 14.70mm) | - | 2 | - |
|
95J2K5RES 2.5K OHM 5% 5W AXIAL Ohmite |
4,041 |
|
Datasheet |
90 | Bulk | Active | 2.5 kOhms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.264" Dia x 0.969" L (6.70mm x 24.60mm) | - | 2 | - |
|
95J3K0RES 3K OHM 5% 5W AXIAL Ohmite |
4,738 |
|
Datasheet |
90 | Bulk | Active | 3 kOhms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.264" Dia x 0.969" L (6.70mm x 24.60mm) | - | 2 | - |
