Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TAH20PR240JERES 0.24 OHM 5% 20W TO220 Ohmite |
2,145 |
|
Datasheet |
TAH | Tube | Active | 240 mOhms | ±5% | 20W | Thick Film | Moisture Resistant, Pulse Withstanding | - | - | TO-220 | 0.410" L x 0.125" W (10.41mm x 3.18mm) | 0.650" (16.52mm) | 2 | - |
|
|
TAH20PR390JERES 0.39 OHM 5% 20W TO220 Ohmite |
1,159 |
|
Datasheet |
TAH | Tube | Active | 390 mOhms | ±5% | 20W | Thick Film | Moisture Resistant, Pulse Withstanding | - | - | TO-220 | 0.410" L x 0.125" W (10.41mm x 3.18mm) | 0.650" (16.52mm) | 2 | - |
|
|
TAH20PR470JERES 0.47 OHM 5% 20W TO220 Ohmite |
2,359 |
|
Datasheet |
TAH | Tube | Active | 470 mOhms | ±5% | 20W | Thick Film | Moisture Resistant, Pulse Withstanding | - | - | TO-220 | 0.410" L x 0.125" W (10.41mm x 3.18mm) | 0.650" (16.52mm) | 2 | - |
|
|
TAH20PR750JERES 0.75 OHM 5% 20W TO220 Ohmite |
3,321 |
|
Datasheet |
TAH | Tube | Active | 750 mOhms | ±5% | 20W | Thick Film | Moisture Resistant, Pulse Withstanding | - | - | TO-220 | 0.410" L x 0.125" W (10.41mm x 3.18mm) | 0.650" (16.52mm) | 2 | - |
|
TA025PW82R0JERES 82 OHM 5% 25W POWERCHIP Ohmite |
3,238 |
|
Datasheet |
Power Chip® TA | Bulk | Active | 82 Ohms | ±5% | 25W | Thick Film | - | ±100ppm/°C | -55°C ~ 180°C | Powerchip® | 2.220" L x 0.240" W (56.39mm x 6.10mm) | 1.189" (30.21mm) | 4 | - |
|
B20J65KE20W 65000 OHMS VIT 5% Ohmite |
2,405 |
|
Datasheet |
Brown Devil® 200 | Box | Active | 65 kOhms | ±5% | 20W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | Axial | 0.437" Dia x 2.000" L (11.11mm x 50.80mm) | - | 2 | - |
|
|
B20J60KE20W 60000 OHMS VIT 5% Ohmite |
1,217 |
|
Datasheet |
Brown Devil® 200 | Box | Active | 60 kOhms | ±5% | 20W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | Axial | 0.437" Dia x 2.000" L (11.11mm x 50.80mm) | - | 2 | - |
|
21J1K5E1W 1K5 OHMS VITREOUS 5% Ohmite |
3,780 |
|
Datasheet |
20 | Box | Active | 1.5 kOhms | ±5% | 1W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.157" Dia x 0.421" L (4.00mm x 10.70mm) | - | 2 | - |
|
21J1K0E1W 1K0 OHMS VITREOUS 5% Ohmite |
3,335 |
|
Datasheet |
20 | Box | Active | 1 kOhms | ±5% | 1W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.157" Dia x 0.421" L (4.00mm x 10.70mm) | - | 2 | - |
|

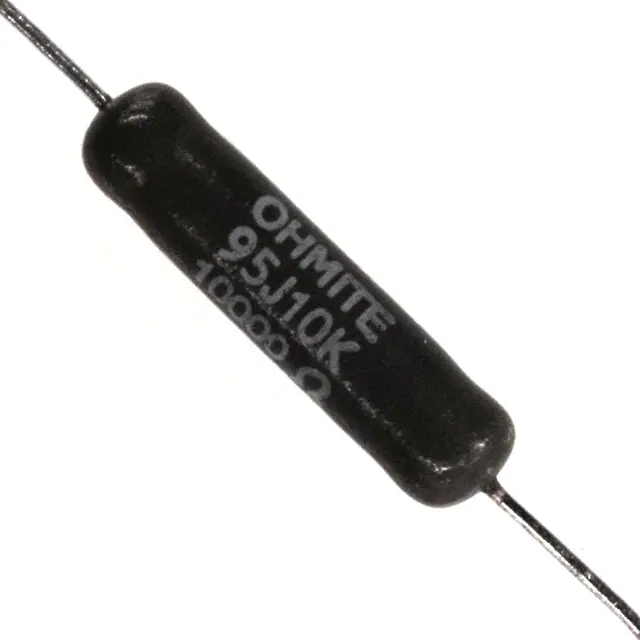

95J10KRES 10K OHM 5% 5W AXIAL Ohmite |
4,637 |
|
Datasheet |
90 | Bulk | Active | 10 kOhms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.264" Dia x 0.969" L (6.70mm x 24.60mm) | - | 2 | - |
