Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TEH140P10R0FERESISTOR Ohmite |
4,398 |
|
Datasheet |
TEH140P | Tube | Active | 10 Ohms | ±1% | 140W | - | Non-Inductive, Pulse Withstanding | - | -55°C ~ 175°C | TO-247 | 0.614" L x 0.197" W (15.60mm x 5.00mm) | 0.965" (24.50mm) | 2 | - |
|
|
TEH140P50R0FERESISTOR Ohmite |
2,604 |
|
Datasheet |
TEH140P | Tube | Active | 50 Ohms | ±1% | 140W | - | Non-Inductive, Pulse Withstanding | ±50ppm/°C | -55°C ~ 175°C | TO-247 | 0.614" L x 0.197" W (15.60mm x 5.00mm) | 0.965" (24.50mm) | 2 | - |
|
|
TEH140P1R00FERESISTOR Ohmite |
2,826 |
|
Datasheet |
TEH140P | Tube | Active | 1 Ohms | ±1% | 140W | - | Non-Inductive, Pulse Withstanding | - | -55°C ~ 175°C | TO-247 | 0.614" L x 0.197" W (15.60mm x 5.00mm) | 0.965" (24.50mm) | 2 | - |
|
|
TEH140P100RFERESISTOR Ohmite |
1,320 |
|
Datasheet |
TEH140P | Tube | Active | 100 Ohms | ±1% | 140W | - | Non-Inductive, Pulse Withstanding | ±50ppm/°C | -55°C ~ 175°C | TO-247 | 0.614" L x 0.197" W (15.60mm x 5.00mm) | 0.965" (24.50mm) | 2 | - |
|
|
TEH140P500RFE140W HEATSINK RES 5% TO247/WITH Ohmite |
1,122 |
|
Datasheet |
TEH140P | Tube | Active | 500 Ohms | ±1% | 140W | - | Non-Inductive, Pulse Withstanding | ±50ppm/°C | -55°C ~ 175°C | TO-247 | 0.614" L x 0.197" W (15.60mm x 5.00mm) | 0.965" (24.50mm) | 2 | - |
|
|
TEH140P5R00FE140W HEATSINK RES 5% TO247/WITH Ohmite |
4,648 |
|
Datasheet |
TEH140P | Tube | Active | 5 Ohms | ±1% | 140W | - | Non-Inductive, Pulse Withstanding | - | -55°C ~ 175°C | TO-247 | 0.614" L x 0.197" W (15.60mm x 5.00mm) | 0.965" (24.50mm) | 2 | - |
|
CS3FR030E3W PRECISION CURRENT SENSE RES Ohmite |
3,042 |
|
Datasheet |
CS3 | Box | Active | 30 mOhms | ±1% | 3W | Metal Element | Current Sense, Moisture Resistant, Non-Inductive | ±60ppm/°C | -55°C ~ 150°C | 4-SIP | 0.854" L x 0.211" W (21.70mm x 5.35mm) | 0.780" (19.80mm) | 4 | - |
|
|
CS3FR036E3W PRECISION CURRENT SENSE RES Ohmite |
2,045 |
|
Datasheet |
CS3 | Box | Active | 36 mOhms | ±1% | 3W | Metal Element | Current Sense, Moisture Resistant, Non-Inductive | ±60ppm/°C | -55°C ~ 150°C | 4-SIP | 0.854" L x 0.211" W (21.70mm x 5.35mm) | 0.780" (19.80mm) | 4 | - |
|

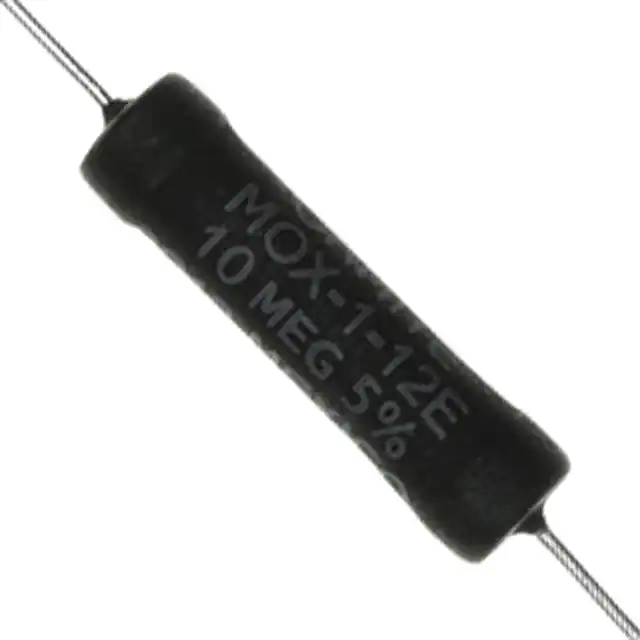

MOX-1-121005JERES 10M OHM 5% 2.5W AXIAL Ohmite |
3,344 |
|
Datasheet |
Maxi-Mox | Bulk | Active | 10 MOhms | ±5% | 2.5W | Thick Film | High Voltage | ±25ppm/°C | -55°C ~ 210°C | Axial | 0.310" Dia x 1.120" L (7.87mm x 28.45mm) | - | 2 | - |
|
MOX-1-121006JERES 100M OHM 5% 2.5W AXIAL Ohmite |
3,941 |
|
Datasheet |
Maxi-Mox | Bulk | Active | 100 MOhms | ±5% | 2.5W | Thick Film | High Voltage | ±50ppm/°C | -55°C ~ 210°C | Axial | 0.310" Dia x 1.120" L (7.87mm x 28.45mm) | - | 2 | - |
