Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

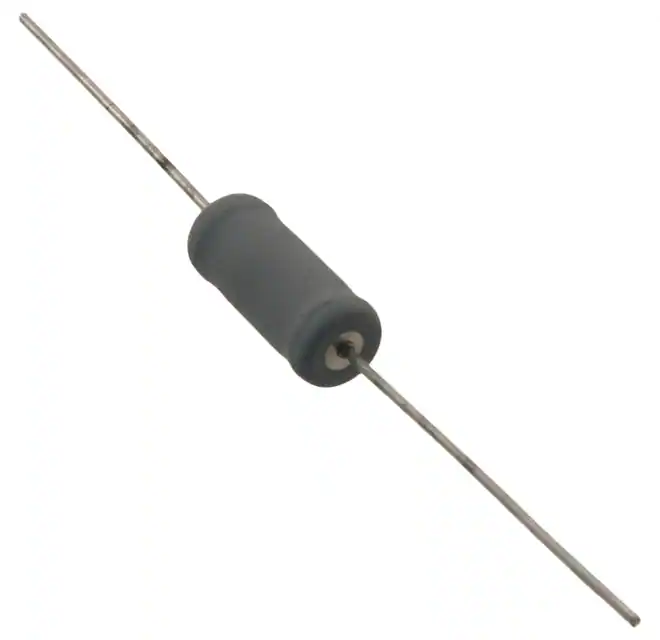

WP2S-100RJA25COMPACT FLAMEPROOF WIREWOUND RES TT Electronics/Welwyn |
2,500 |
|
Datasheet |
WP-S | Cut Tape (CT) | Active | 100 Ohms | ±5% | 2W | Wirewound | Flame Proof, Pulse Withstanding, Safety | 200ppm/°C | -55°C ~ 200°C | Axial | 0.142" Dia x 0.354" L (3.60mm x 9.00mm) | - | 2 | - |
|
|
WP2S-2R2JA25COMPACT FLAMEPROOF WIREWOUND RES TT Electronics/Welwyn |
2,500 |
|
Datasheet |
WP-S | Cut Tape (CT) | Active | 2.2 Ohms | ±5% | 2W | Wirewound | Flame Proof, Pulse Withstanding, Safety | 200ppm/°C | -55°C ~ 200°C | Axial | 0.142" Dia x 0.354" L (3.60mm x 9.00mm) | - | 2 | - |
|
|
ULW2-10RJA25UL WIREWOUND FUSIBLE RESISTOR TT Electronics/Welwyn |
2,500 |
|
Datasheet |
ULW | Cut Tape (CT) | Active | 10 Ohms | ±5% | 2W | Wirewound | Flame Retardant Coating, Fusible, Pulse Withstanding, Safety | ±200ppm/°C | -55°C ~ 200°C | Axial | 0.150" Dia x 0.354" L (3.80mm x 9.00mm) | - | 2 | - |
|
|
ULW2-100RJA25RES 100 OHM 2W 5% AXIAL TT Electronics/Welwyn |
2,500 |
|
Datasheet |
ULW | Cut Tape (CT) | Active | 100 Ohms | ±5% | 2W | Wirewound | Flame Retardant Coating, Fusible, Pulse Withstanding, Safety | ±200ppm/°C | -55°C ~ 155°C | Axial | 0.150" Dia x 0.354" L (3.80mm x 9.00mm) | - | 2 | - |
|
|
ULW2-33RJA25RES 33 OHM 2W 5% AXIAL TT Electronics/Welwyn |
2,490 |
|
Datasheet |
ULW | Cut Tape (CT) | Active | 33 Ohms | ±5% | 2W | Wirewound | Flame Retardant Coating, Fusible, Pulse Withstanding, Safety | ±200ppm/°C | -55°C ~ 155°C | Axial | 0.150" Dia x 0.354" L (3.80mm x 9.00mm) | - | 2 | - |
|
|
ULW5-47RJT075RES 47 OHM 5W 5% AXIAL TT Electronics/Welwyn |
625 |
|
Datasheet |
ULW | Tape & Reel (TR) | Active | 47 Ohms | ±5% | 5W | Wirewound | Flame Retardant Coating, Fusible, Pulse Withstanding, Safety | ±200ppm/°C | -55°C ~ 155°C | Axial | 0.283" Dia x 0.650" L (7.20mm x 16.50mm) | - | 2 | - |
|
W22-200RJIFixed Resistor, Wire Wound, 7W, TT Electronics/Welwyn |
1,928 |
|
- |
* | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|

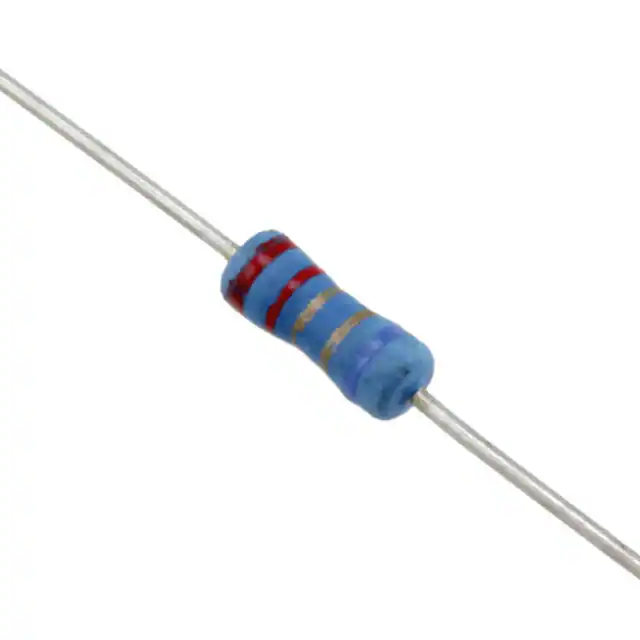

SPP1UL1500JLFRES 150 OHM 5% 1W AXIAL TT Electronics/IRC |
5,863 |
|
Datasheet |
SPP | Tape & Reel (TR) | Active | 150 Ohms | ±5% | 1W | Wirewound | Fusible, Moisture Resistant, Safety, Weldable | ±300ppm/°C | -55°C ~ 200°C | Axial | 0.150" Dia x 0.402" L (3.80mm x 10.20mm) | - | 2 | - |
|
W21-R20JIRES 0.2 OHM 3W 5% AXIAL TT Electronics/Welwyn |
2,188 |
|
Datasheet |
W20 | Tape & Reel (TR) | Active | 200 mOhms | ±5% | 3W | Wirewound | Flame Proof, Safety | ±75ppm/°C | -55°C ~ 200°C | Axial | 0.220" Dia x 0.500" L (5.60mm x 12.70mm) | - | 2 | - |
|
|
SPP1UL15R0JLFRES 15 OHM 5% 1W AXIAL TT Electronics/IRC |
7,600 |
|
Datasheet |
SPP | Cut Tape (CT) | Active | 15 Ohms | ±5% | 1W | Wirewound | Fusible, Moisture Resistant, Safety, Weldable | ±300ppm/°C | -55°C ~ 200°C | Axial | 0.150" Dia x 0.402" L (3.80mm x 10.20mm) | - | 2 | - |
