Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RSF200JB-73-18KRES 18K OHM 5% 2W AXIAL YAGEO |
1,365 |
|
Datasheet |
RSF | Bulk | Active | 18 kOhms | ±5% | 2W | Metal Oxide Film | Flame Proof, Safety | - | -55°C ~ 235°C | Axial | 0.197" Dia x 0.610" L (5.00mm x 15.50mm) | - | 2 | - |
|
RSF200JB-73-6K8RES 6.8K OHM 5% 2W AXIAL YAGEO |
2,804 |
|
Datasheet |
RSF | Bulk | Active | 6.8 kOhms | ±5% | 2W | Metal Oxide Film | Flame Proof, Safety | - | -55°C ~ 235°C | Axial | 0.197" Dia x 0.610" L (5.00mm x 15.50mm) | - | 2 | - |
|
HHV-50JT-52-1MRES 1M OHM 5% 1/2W AXIAL YAGEO |
4,924 |
|
Datasheet |
HHV | Cut Tape (CT) | Active | 1 MOhms | ±5% | 0.5W, 1/2W | Metal Film | Flame Retardant Coating, High Voltage, Safety | ±200ppm/°C | -55°C ~ 155°C | Axial | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) | - | 2 | - |
|
HHV-50FR-52-10MRES 10M OHM 1% 1/2W AXIAL YAGEO |
1,088 |
|
Datasheet |
HHV | Tape & Reel (TR) | Active | 10 MOhms | ±1% | 0.5W, 1/2W | Metal Film | Flame Retardant Coating, High Voltage, Safety | ±200ppm/°C | -55°C ~ 155°C | Axial | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) | - | 2 | - |
|

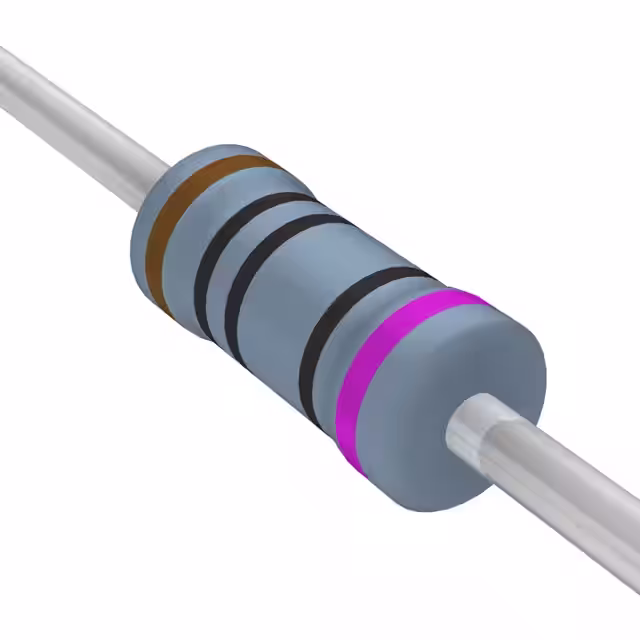

MFP-25BRD52-100RRES 100 OHM 0.1% 1/4W AXIAL YAGEO |
3,211 |
|
Datasheet |
MFP | Tape & Reel (TR) | Active | 100 Ohms | ±0.1% | 0.25W, 1/4W | Metal Film | - | ±25ppm/°C | -55°C ~ 155°C | Axial | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | - | 2 | - |
|
FKN3WSJT-73-47RRES 47 OHM 5% 3W AXIAL YAGEO |
2,784 |
|
Datasheet |
FKN | Cut Tape (CT) | Active | 47 Ohms | ±5% | 3W | Wirewound | Flame Proof, Fusible, Safety | - | -40°C ~ 155°C | Axial | 0.197" Dia x 0.610" L (5.00mm x 15.50mm) | - | 2 | - |
|
FKN3WSJT-73-100RRES 100 OHM 5% 3W AXIAL YAGEO |
4,072 |
|
Datasheet |
FKN | Cut Tape (CT) | Active | 100 Ohms | ±5% | 3W | Wirewound | Flame Proof, Fusible, Safety | - | -40°C ~ 155°C | Axial | 0.197" Dia x 0.610" L (5.00mm x 15.50mm) | - | 2 | - |
|
FMP300FTF73-47KRES 47K OHM 1% 3W AXIAL YAGEO |
4,237 |
|
Datasheet |
FMP | Cut Tape (CT) | Active | 47 kOhms | ±1% | 3W | Metal Film | Flame Proof, Safety | ±100ppm/°C | -55°C ~ 155°C | Axial | 0.197" Dia x 0.610" L (5.00mm x 15.50mm) | - | 2 | - |
|
FKN200JR-73-8R2RES 8.2 OHM 5% 2W AXIAL YAGEO |
3,045 |
|
Datasheet |
FKN | Tape & Reel (TR) | Active | 8.2 Ohms | ±5% | 2W | Wirewound | Flame Proof, Fusible, Safety | - | -40°C ~ 155°C | Axial | 0.197" Dia x 0.610" L (5.00mm x 15.50mm) | - | 2 | - |
|
SQP500JB-4R3RES 4.3 OHM 5% 5W AXIAL YAGEO |
4,534 |
|
Datasheet |
SQP | Tray | Active | 4.3 Ohms | ±5% | 5W | Cement | Flame Proof, Pulse Withstanding, Safety | - | -55°C ~ 155°C | Axial | 0.374" x 0.354" Rectangular x 0.866" L (9.50mm x 9.00mm x 22.00mm) | - | 2 | - |
