Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ERD-S1TJ3R0VRES 3 OHM 5% 1/2W AXIAL Panasonic Electronic Components |
4,915 |
|
Datasheet |
ERDS1 | Cut Tape (CT) | Obsolete | 3 Ohms | ±5% | 0.5W, 1/2W | Carbon Film | - | ±350ppm/°C | -55°C ~ 155°C | Axial | 0.091" Dia x 0.250" L (2.30mm x 6.35mm) | - | 2 | - |
|
ERD-S1TJ3R3VRES 3.3 OHM 5% 1/2W AXIAL Panasonic Electronic Components |
3,294 |
|
Datasheet |
ERDS1 | Cut Tape (CT) | Obsolete | 3.3 Ohms | ±5% | 0.5W, 1/2W | Carbon Film | - | ±350ppm/°C | -55°C ~ 155°C | Axial | 0.091" Dia x 0.250" L (2.30mm x 6.35mm) | - | 2 | - |
|
ERD-S1TJ3R6VRES 3.6 OHM 5% 1/2W AXIAL Panasonic Electronic Components |
4,725 |
|
Datasheet |
ERDS1 | Cut Tape (CT) | Obsolete | 3.6 Ohms | ±5% | 0.5W, 1/2W | Carbon Film | - | ±350ppm/°C | -55°C ~ 155°C | Axial | 0.091" Dia x 0.250" L (2.30mm x 6.35mm) | - | 2 | - |
|
ERD-S1TJ4R3VRES 4.3 OHM 5% 1/2W AXIAL Panasonic Electronic Components |
4,742 |
|
Datasheet |
ERDS1 | Cut Tape (CT) | Obsolete | 4.3 Ohms | ±5% | 0.5W, 1/2W | Carbon Film | - | ±350ppm/°C | -55°C ~ 155°C | Axial | 0.091" Dia x 0.250" L (2.30mm x 6.35mm) | - | 2 | - |
|
ERD-S1TJ4R7VRES 4.7 OHM 5% 1/2W AXIAL Panasonic Electronic Components |
4,537 |
|
Datasheet |
ERDS1 | Cut Tape (CT) | Obsolete | 4.7 Ohms | ±5% | 0.5W, 1/2W | Carbon Film | - | -150/ -350ppm/°C | -55°C ~ 155°C | Axial | 0.091" Dia x 0.250" L (2.30mm x 6.35mm) | - | 2 | - |
|
ERD-S1TJ5R1VRES 5.1 OHM 5% 1/2W AXIAL Panasonic Electronic Components |
3,461 |
|
Datasheet |
ERDS1 | Cut Tape (CT) | Obsolete | 5.1 Ohms | ±5% | 0.5W, 1/2W | Carbon Film | - | -150/ -350ppm/°C | -55°C ~ 155°C | Axial | 0.091" Dia x 0.250" L (2.30mm x 6.35mm) | - | 2 | - |
|
ERD-S1TJ5R6VRES 5.6 OHM 5% 1/2W AXIAL Panasonic Electronic Components |
2,694 |
|
Datasheet |
ERDS1 | Cut Tape (CT) | Obsolete | 5.6 Ohms | ±5% | 0.5W, 1/2W | Carbon Film | - | -150/ -350ppm/°C | -55°C ~ 155°C | Axial | 0.091" Dia x 0.250" L (2.30mm x 6.35mm) | - | 2 | - |
|
ERD-S1TJ6R8VRES 6.8 OHM 5% 1/2W AXIAL Panasonic Electronic Components |
2,086 |
|
Datasheet |
ERDS1 | Cut Tape (CT) | Obsolete | 6.8 Ohms | ±5% | 0.5W, 1/2W | Carbon Film | - | -150/ -350ppm/°C | -55°C ~ 155°C | Axial | 0.091" Dia x 0.250" L (2.30mm x 6.35mm) | - | 2 | - |
|
ERD-S1TJ7R5VRES 7.5 OHM 5% 1/2W AXIAL Panasonic Electronic Components |
1,351 |
|
Datasheet |
ERDS1 | Cut Tape (CT) | Obsolete | 7.5 Ohms | ±5% | 0.5W, 1/2W | Carbon Film | - | -150/ -350ppm/°C | -55°C ~ 155°C | Axial | 0.091" Dia x 0.250" L (2.30mm x 6.35mm) | - | 2 | - |
|

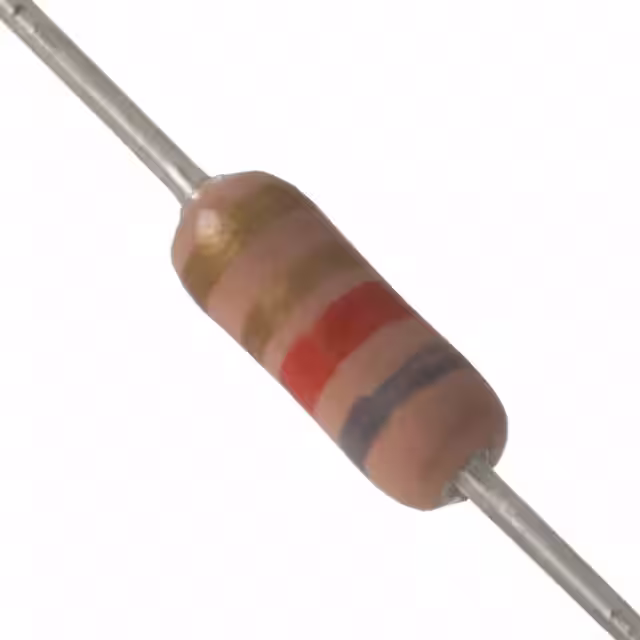

ERD-S1TJ8R2VRES 8.2 OHM 5% 1/2W AXIAL Panasonic Electronic Components |
3,496 |
|
Datasheet |
ERDS1 | Cut Tape (CT) | Obsolete | 8.2 Ohms | ±5% | 0.5W, 1/2W | Carbon Film | - | -150/ -350ppm/°C | -55°C ~ 155°C | Axial | 0.091" Dia x 0.250" L (2.30mm x 6.35mm) | - | 2 | - |
