Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

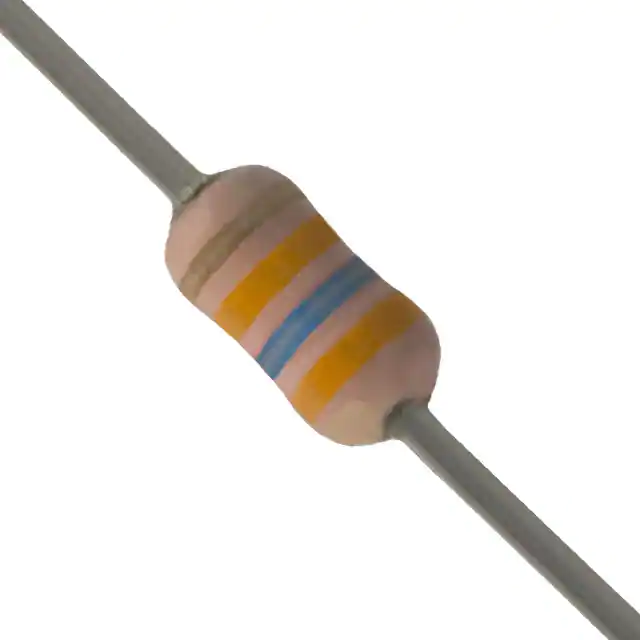

ERD-S2TJ363VRES 36K OHM 5% 1/4W AXIAL Panasonic Electronic Components |
1,728 |
|
Datasheet |
ERDS2 | Cut Tape (CT) | Obsolete | 36 kOhms | ±5% | 0.25W, 1/4W | Carbon Film | - | -150/ -350ppm/°C | -55°C ~ 155°C | Axial | 0.067" Dia x 0.126" L (1.70mm x 3.20mm) | - | 2 | - |
|
ERG-3SJ110ARES 11 OHM 5% 3W AXIAL Panasonic Electronic Components |
3,000 |
|
Datasheet |
ERG | Tape & Reel (TR) | Obsolete | 11 Ohms | ±5% | 3W | Metal Oxide Film | Flame Proof, Safety | ±300ppm/°C | -55°C ~ 235°C | Axial | 0.217" Dia x 0.591" L (5.50mm x 15.00mm) | - | 2 | - |
|
|
ERG-3SJ161ARES 160 OHM 5% 3W AXIAL Panasonic Electronic Components |
1,500 |
|
Datasheet |
ERG | Tape & Reel (TR) | Obsolete | 160 Ohms | ±5% | 3W | Metal Oxide Film | Flame Proof, Safety | ±300ppm/°C | -55°C ~ 235°C | Axial | 0.217" Dia x 0.591" L (5.50mm x 15.00mm) | - | 2 | - |
|
ERD-S1TJ1R6VRES 1.6 OHM 5% 1/2W AXIAL Panasonic Electronic Components |
5,850 |
|
Datasheet |
ERDS1 | Cut Tape (CT) | Obsolete | 1.6 Ohms | ±5% | 0.5W, 1/2W | Carbon Film | - | ±350ppm/°C | -55°C ~ 155°C | Axial | 0.091" Dia x 0.250" L (2.30mm x 6.35mm) | - | 2 | - |
|

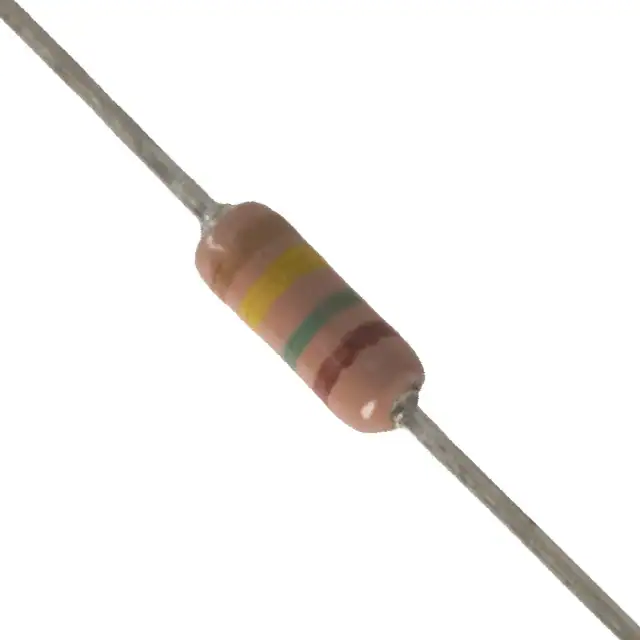

ERD-S1TJ154VRES 150K OHM 5% 1/2W AXIAL Panasonic Electronic Components |
3,760 |
|
Datasheet |
ERDS1 | Cut Tape (CT) | Obsolete | 150 kOhms | ±5% | 0.5W, 1/2W | Carbon Film | - | -150/ -500ppm/°C | -55°C ~ 155°C | Axial | 0.091" Dia x 0.250" L (2.30mm x 6.35mm) | - | 2 | - |
|

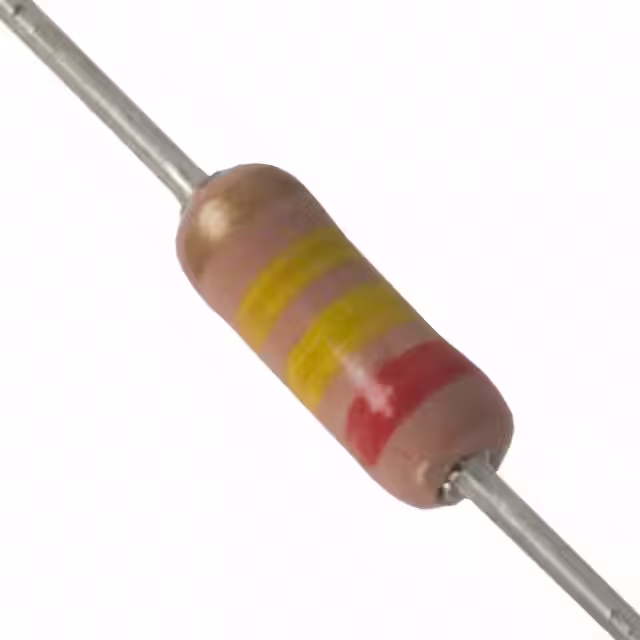

ERD-S1TJ244VRES 240K OHM 5% 1/2W AXIAL Panasonic Electronic Components |
3,307 |
|
Datasheet |
ERDS1 | Cut Tape (CT) | Obsolete | 240 kOhms | ±5% | 0.5W, 1/2W | Carbon Film | - | -150/ -500ppm/°C | -55°C ~ 155°C | Axial | 0.091" Dia x 0.250" L (2.30mm x 6.35mm) | - | 2 | - |
|
ERD-S1TJ2R4VRES 2.4 OHM 5% 1/2W AXIAL Panasonic Electronic Components |
2,942 |
|
Datasheet |
ERDS1 | Cut Tape (CT) | Obsolete | 2.4 Ohms | ±5% | 0.5W, 1/2W | Carbon Film | - | ±350ppm/°C | -55°C ~ 155°C | Axial | 0.091" Dia x 0.250" L (2.30mm x 6.35mm) | - | 2 | - |
|

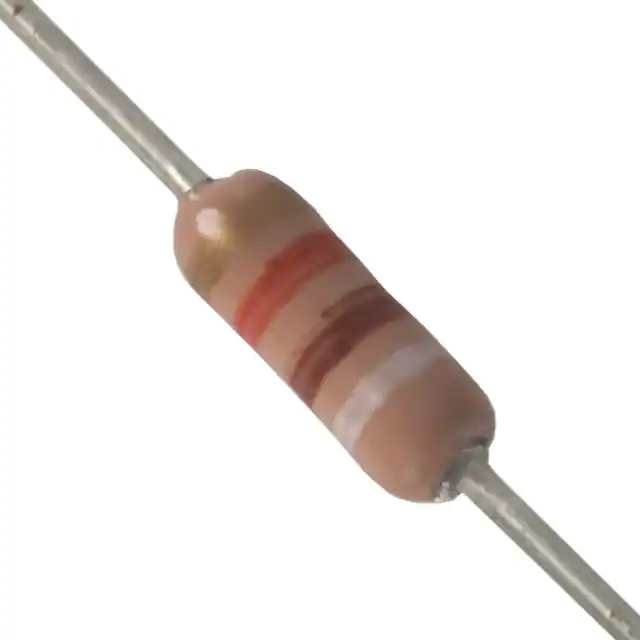

ERD-S1TJ912VRES 9.1K OHM 5% 1/2W AXIAL Panasonic Electronic Components |
2,121 |
|
Datasheet |
ERDS1 | Cut Tape (CT) | Obsolete | 9.1 kOhms | ±5% | 0.5W, 1/2W | Carbon Film | - | -150/ -350ppm/°C | -55°C ~ 155°C | Axial | 0.091" Dia x 0.250" L (2.30mm x 6.35mm) | - | 2 | - |
|

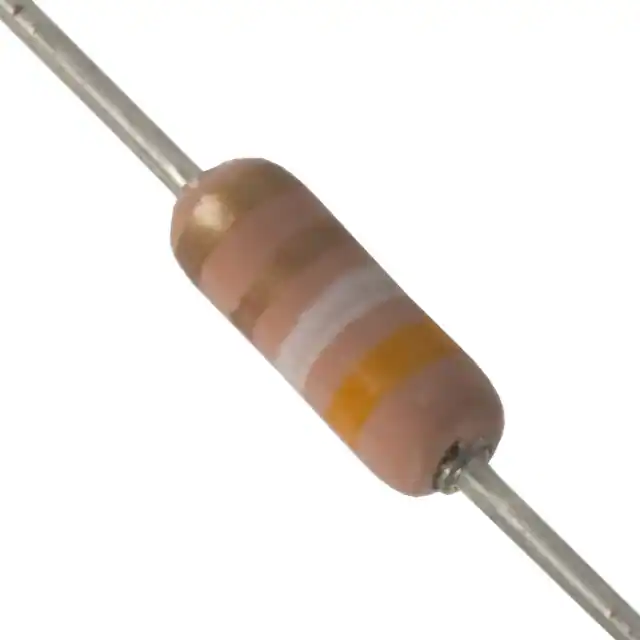

ERD-S1TJ3R9VRES 3.9 OHM 5% 1/2W AXIAL Panasonic Electronic Components |
2,023 |
|
Datasheet |
ERDS1 | Cut Tape (CT) | Obsolete | 3.9 Ohms | ±5% | 0.5W, 1/2W | Carbon Film | - | ±350ppm/°C | -55°C ~ 155°C | Axial | 0.091" Dia x 0.250" L (2.30mm x 6.35mm) | - | 2 | - |
|
ERD-S1TJ624VRES 620K OHM 5% 1/2W AXIAL Panasonic Electronic Components |
1,912 |
|
Datasheet |
ERDS1 | Cut Tape (CT) | Obsolete | 620 kOhms | ±5% | 0.5W, 1/2W | Carbon Film | - | -150/ -700ppm/°C | -55°C ~ 155°C | Axial | 0.091" Dia x 0.250" L (2.30mm x 6.35mm) | - | 2 | - |
