Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D22015BSWITCH TOGGLE SPDT 0.4VA 48V NKK Switches |
1,143 |
|
Datasheet |
D2 | Bulk | Active | Through Hole | SPDT | On-Mom | 0.4VA (AC/DC) | 48 V | 48 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -10°C ~ 70°C |
|

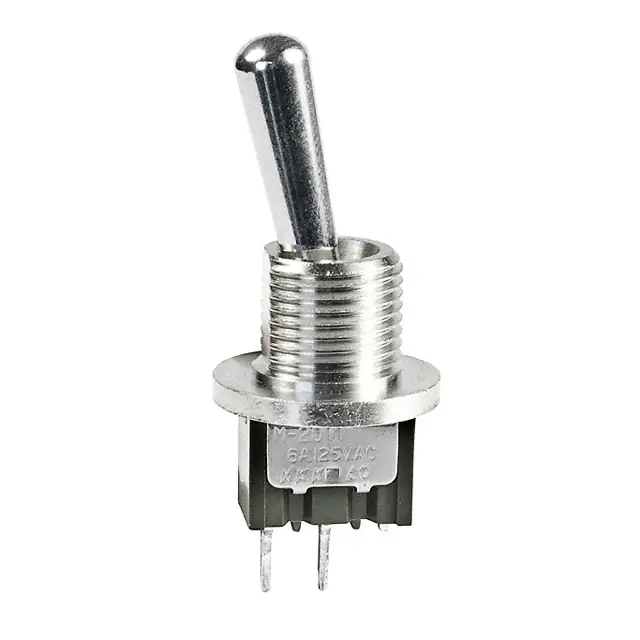

M2011B2B3W03SWITCH TOGGLE SPST 6A 125V NKK Switches |
1,164 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPST | On-Off | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | PC Pin | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2013QD3G01SWITCH TOGGLE SPDT 0.4VA 28V NKK Switches |
2,498 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 14.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2023BB1W01SWITCH TOGGLE DPDT 6A 125V NKK Switches |
1,764 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
A22EHSWITCH TOGGLE DPDT 0.4VA 28V NKK Switches |
3,662 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Flatted | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|

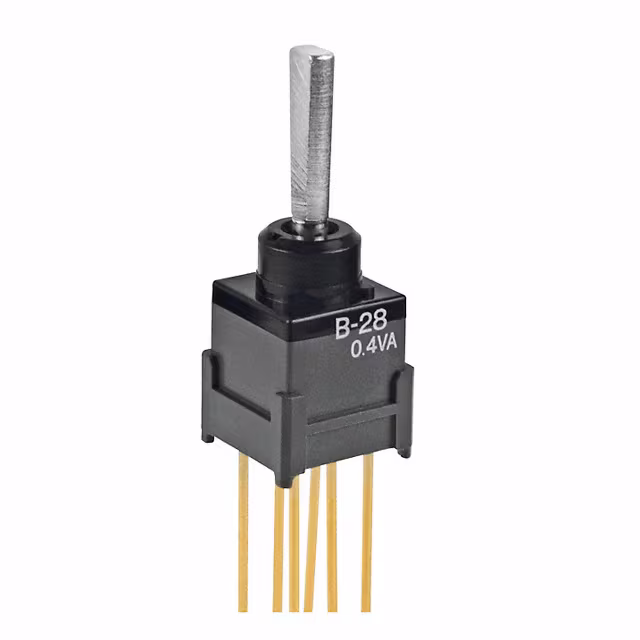

B28EWSWITCH TOGGLE DPDT 0.4VA 28V NKK Switches |
1,879 |
|
Datasheet |
B | Bulk | Active | Through Hole | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Flatted | 10.00mm | Non-Illuminated | - | - | Wire Wrap | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
A22HHSWITCH TOGGLE DPDT 0.4VA 28V NKK Switches |
1,412 |
|
Datasheet |
A | Tray | Active | Through Hole, Right Angle | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Flatted | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
B29HWSWITCH TOGGLE DPDT 0.4VA 28V NKK Switches |
4,422 |
|
Datasheet |
B | Bulk | Active | Through Hole | DPDT | On-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Flatted | 6.30mm | Non-Illuminated | - | - | Wire Wrap | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2025B2B1W01SWITCH TOGGLE DPDT 6A 125V NKK Switches |
4,874 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2012ES1W06/3SWITCH TOGGLE SPDT 6A 125V NKK Switches |
2,619 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Flatted | 11.40mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.50mm Dia | 1/4-40 | - | Black Actuator | -30°C ~ 85°C |
