Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G19APSWITCH TOGGLE SPDT 0.4VA 28V NKK Switches |
130 |
|
Datasheet |
G | Tray | Active | Through Hole | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -25°C ~ 85°C |
|

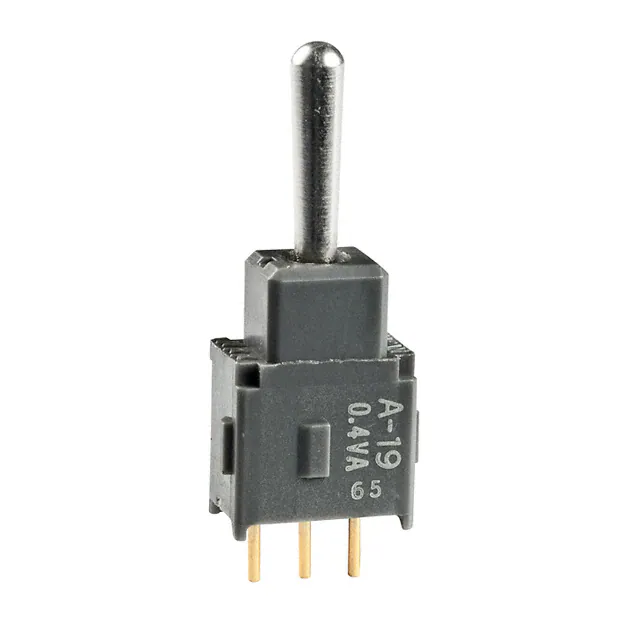

A19APSWITCH TOGGLE SPDT 0.4VA 28V NKK Switches |
243 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
A22JV-JASWITCH TOGGLE DPDT 0.4VA 28V NKK Switches |
2,047 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round with Cap | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Black Cap | -30°C ~ 85°C |
|

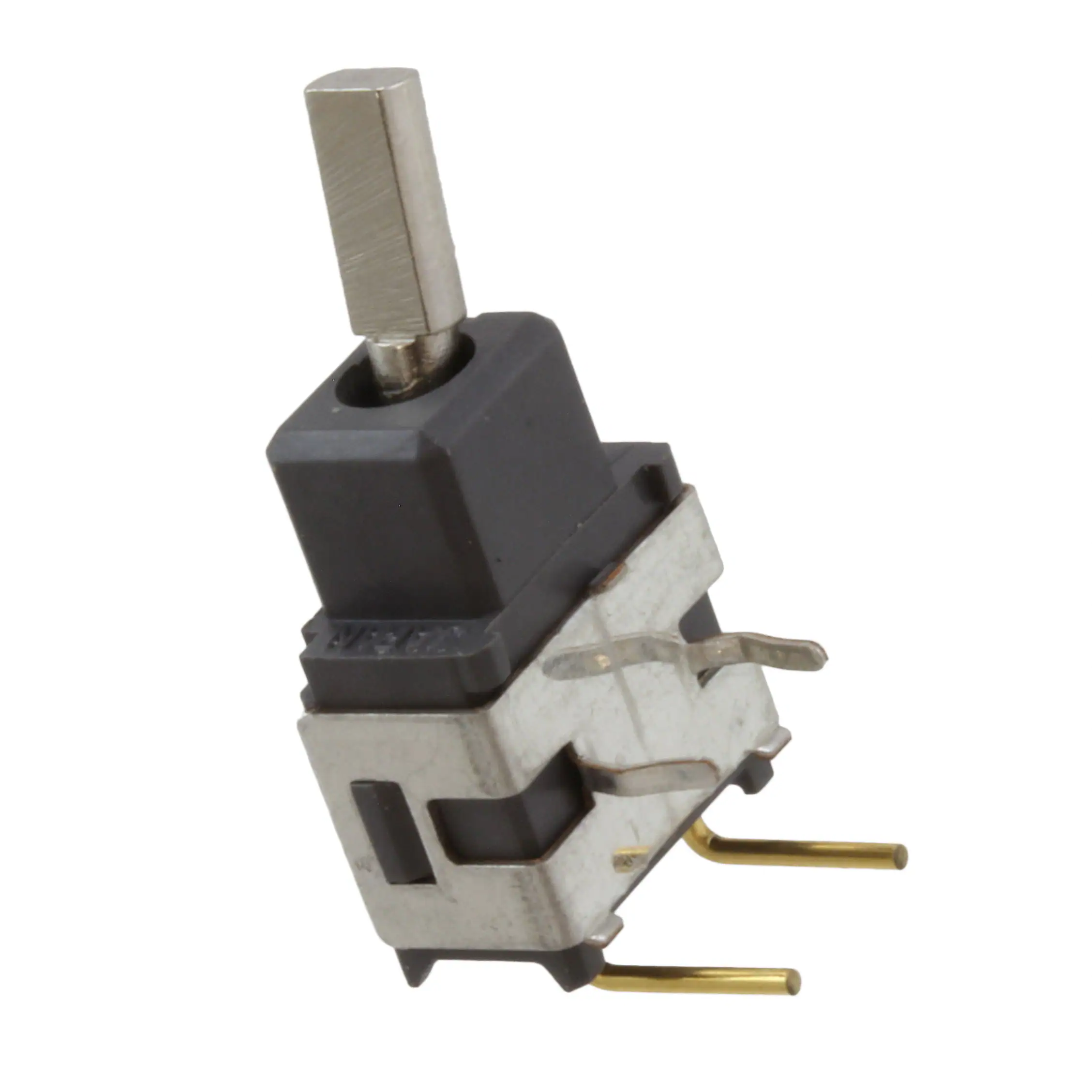

A11HHSWITCH TOGGLE SPST 0.4VA 28V NKK Switches |
105 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle | SPST | On-Off | 0.4VA (AC/DC) | 28 V | 28 V | Flatted | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
D22018BSWITCH TOGGLE SPDT 0.4VA 48V NKK Switches |
2,241 |
|
Datasheet |
D2 | Bulk | Active | Through Hole | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 48 V | 48 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -10°C ~ 70°C |
|

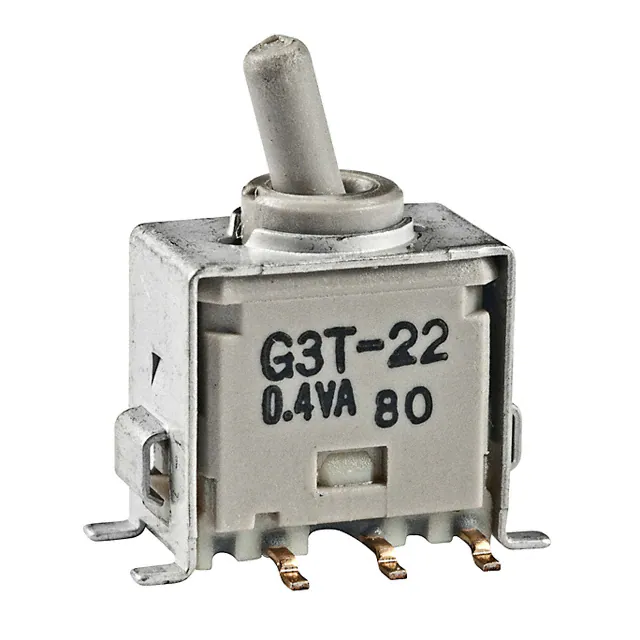

G3T22ABSWITCH TOGGLE DPDT 0.4VA 28V NKK Switches |
164 |
|
Datasheet |
G3T | Tray | Active | Surface Mount | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.81mm | Non-Illuminated | - | - | Gull Wing | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|

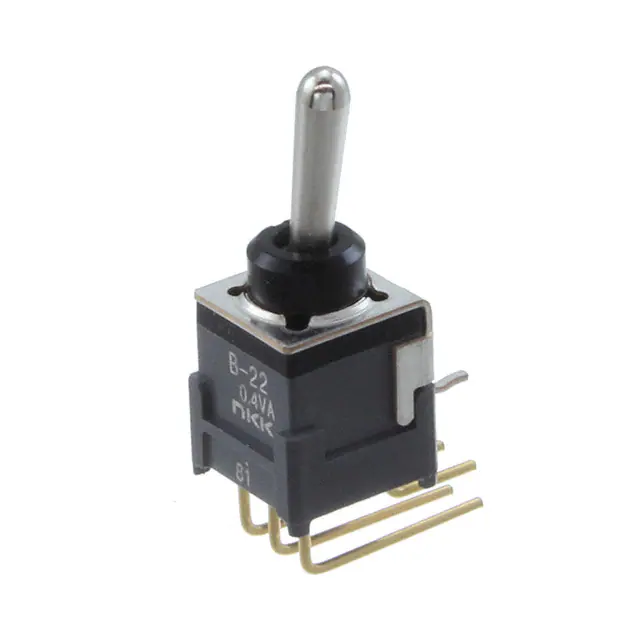

B22AHSWITCH TOGGLE DPDT 0.4VA 28V NKK Switches |
106 |
|
Datasheet |
B | Tray | Active | Through Hole, Right Angle | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

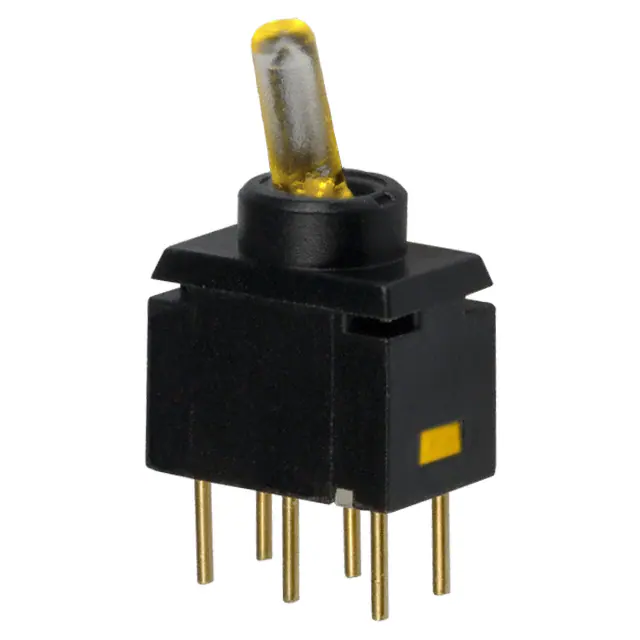

G12JPDSWITCH TOGGLE SPDT 0.4VA 28V NKK Switches |
132 |
|
Datasheet |
G | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.80mm | Illuminated | LED, Amber | 2 VDC | PC Pin | - | Unthreaded | - | Process Sealed | -25°C ~ 85°C |
|

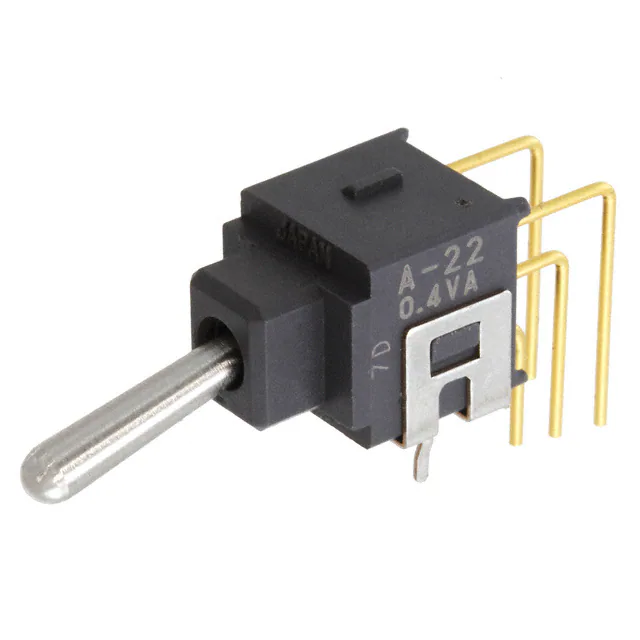

A22AVSWITCH TOGGLE DPDT 0.4VA 28V NKK Switches |
1,460 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|

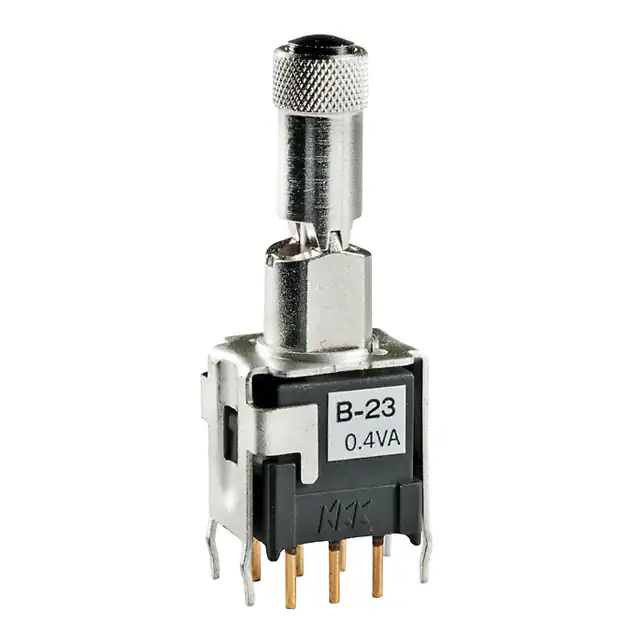

B23LBSWITCH TOGGLE DPDT 0.4VA 28V NKK Switches |
1,803 |
|
Datasheet |
B | Tray | Active | Through Hole | DPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Locking Lever | 12.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
