Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2045B2B1W01-AT401SBUSHING MOUNT MINIATURE TOGGLE NKK Switches |
1,132 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 4PDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
M2045B2B1W01-AT401HBUSHING MOUNT MINIATURE TOGGLE NKK Switches |
3,691 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 4PDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
M2049B2B1W01-AT401SBUSHING MOUNT MINIATURE TOGGLE NKK Switches |
3,832 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 4PDT | On-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
M2049B2B1W01-AT401HBUSHING MOUNT MINIATURE TOGGLE NKK Switches |
1,615 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 4PDT | On-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
M2045B2B1W01-AT4181BUSHING MOUNT MINIATURE TOGGLE NKK Switches |
2,061 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 4PDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
M2049B2B1W01-AT4181BUSHING MOUNT MINIATURE TOGGLE NKK Switches |
3,580 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 4PDT | On-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
M2048B2B1W01-AT401ABUSHING MOUNT MINIATURE TOGGLE NKK Switches |
3,576 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 4PDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|

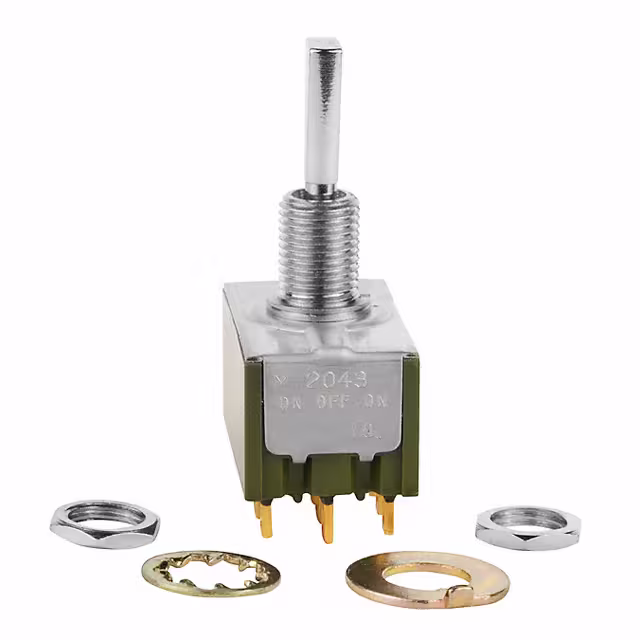

M2043ES1G01SWITCH TOGGLE 4PDT 0.4VA 28V NKK Switches |
3,884 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 4PDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Flatted | 11.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2048B2B1W01-AT401SBUSHING MOUNT MINIATURE TOGGLE NKK Switches |
2,239 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 4PDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
M2048B2B1W01-AT401HBUSHING MOUNT MINIATURE TOGGLE NKK Switches |
3,466 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 4PDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
