Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B12JP-JCSWITCH TOGGLE SPDT 0.4VA 28V NKK Switches |
2,482 |
|
Datasheet |
B | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round with Cap | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Red Cap | -30°C ~ 85°C |
|
|
MN12EA2W13BRACKET PC MOUNT MINIATURE TOGGL NKK Switches |
2,802 |
|
Datasheet |
M | Bulk | Active | Through Hole | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Flatted | 11.40mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C |
|
A22JWSWITCH TOGGLE DPDT 0.4VA 28V NKK Switches |
4,662 |
|
Datasheet |
A | Tube | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.30mm | Non-Illuminated | - | - | Wire Wrap | - | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
|
M2021LL1G01SWITCH TOGGLE DPST 0.4VA 28V NKK Switches |
2,114 |
|
- |
M | Bulk | Obsolete | Panel Mount | DPST | On-Off | 0.4VA (AC/DC) | 28 V | 28 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

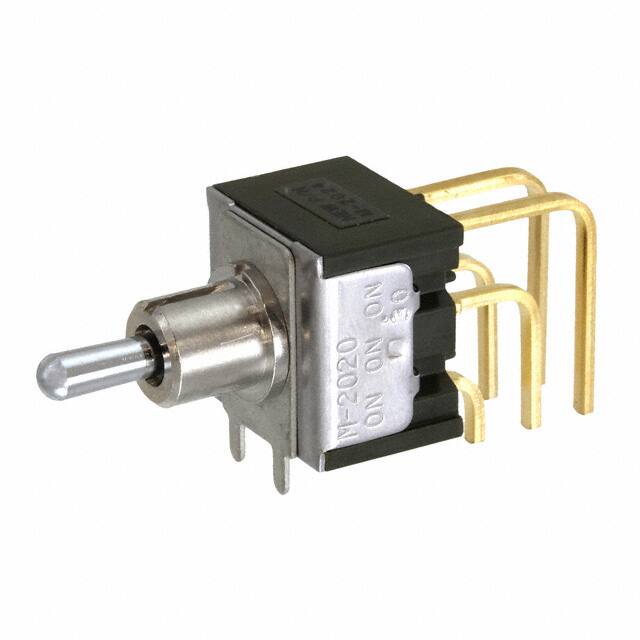

M2024S2A2G40SWITCH TOGGLE SP3T 0.4VA 28V NKK Switches |
1,493 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle, Vertical | SP3T | On-On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
M2011SS1A01-BGSWITCH TOGGLE SPST 6A 125V NKK Switches |
2,376 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPST | On-Off | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Blue Cap | -30°C ~ 85°C |
|
|
M2011SS1A01-BASWITCH TOGGLE SPST 6A 125V NKK Switches |
2,881 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPST | On-Off | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Black Cap | -30°C ~ 85°C |
|

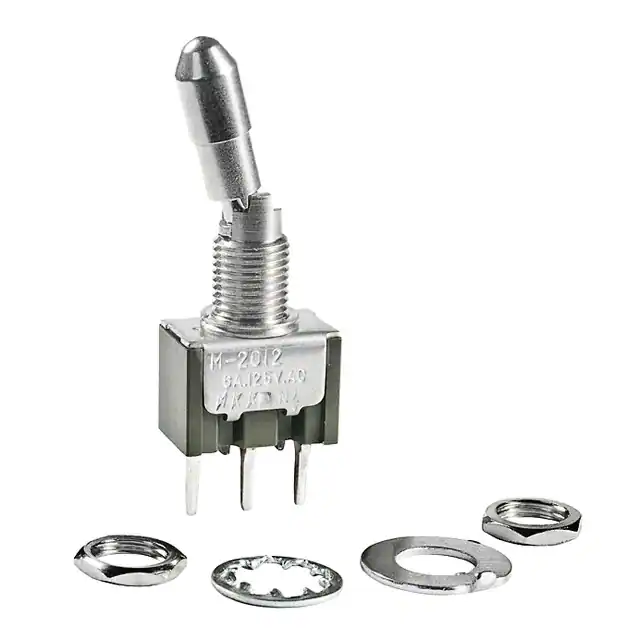

M2012LL1W03SWITCH TOGGLE SPDT 6A 125V NKK Switches |
2,281 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
G3T13AB-SSWITCH TOGGLE SPDT 0.4VA 28V NKK Switches |
1,762 |
|
Datasheet |
G3T | Tube | Active | Surface Mount | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.81mm | Non-Illuminated | - | - | Gull Wing | - | Unthreaded | - | - | -30°C ~ 85°C |
|
|
M2032SD3W03-BASWITCH TOGGLE 3PDT 6A 125V NKK Switches |
2,228 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 3PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Black Cap | -30°C ~ 85°C |
