Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A24KBSWITCH TOGGLE SP3T 0.4VA 28V NKK Switches |
3,562 |
|
Datasheet |
A | Bulk | Active | Through Hole | SP3T | On-On-On | 0.4VA (AC/DC) | 28 V | 28 V | Lever for Cap | 5.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
G28AHSWITCH TOGGLE DPDT 0.4VA 28V NKK Switches |
3,793 |
|
Datasheet |
G | Bulk | Active | Through Hole, Right Angle | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -25°C ~ 85°C |
|
|
G28AVSWITCH TOGGLE DPDT 0.4VA 28V NKK Switches |
3,279 |
|
Datasheet |
G | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -25°C ~ 85°C |
|
|
G29AVSWITCH TOGGLE DPDT 0.4VA 28V NKK Switches |
4,017 |
|
Datasheet |
G | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -25°C ~ 85°C |
|
|
MN22BB1W03BUSHING MOUNT MINIATURE TOGGLE NKK Switches |
1,247 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MN13ES2W13BRACKET PC MOUNT MINIATURE TOGGL NKK Switches |
1,188 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MN23SS4W03SWITCH TOGGLE NKK Switches |
1,196 |
|
- |
M | Bulk | Active | Panel Mount | DPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | M6 x 0.75 | - | - | -30°C ~ 85°C |
|

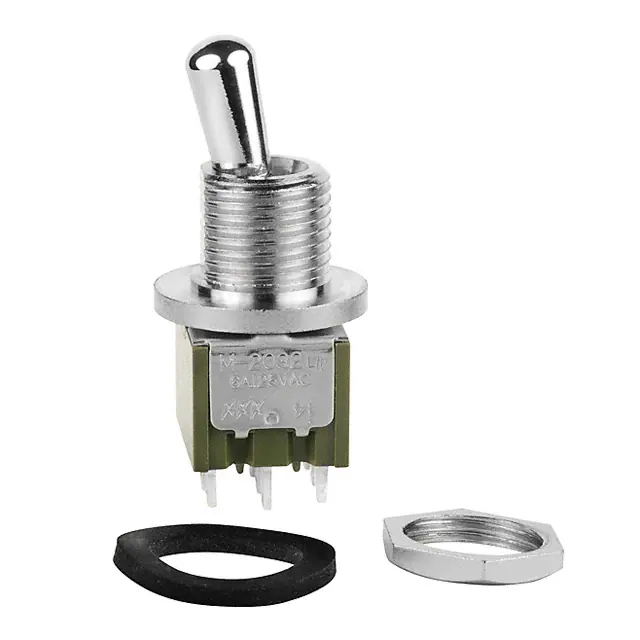

M2032BB3W01SWITCH TOGGLE 3PDT 6A 125V NKK Switches |
2,279 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 3PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

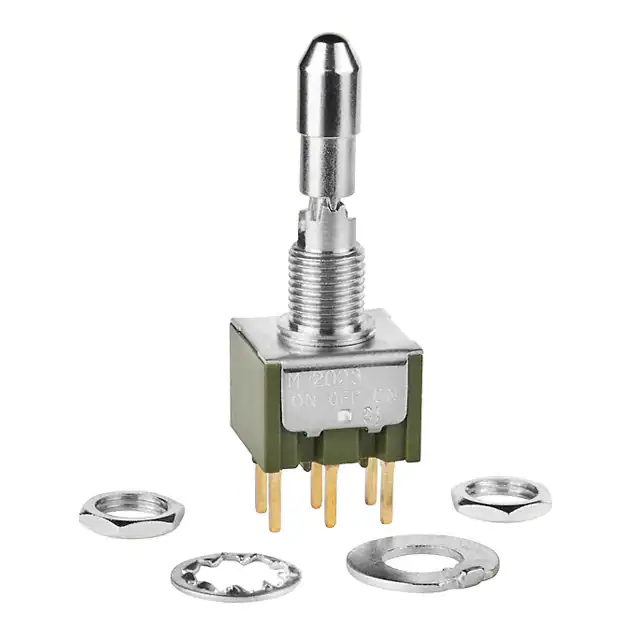

M2023LL1G03SWITCH TOGGLE DPDT 0.4VA 28V NKK Switches |
2,896 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2033S2A2W30SWITCH TOGGLE 3PDT 6A 125V NKK Switches |
1,583 |
|
- |
M | Bulk | Obsolete | Through Hole, Right Angle | 3PDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
