Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D22012LHSWITCH TOGGLE SPDT 0.4VA 48V NKK Switches |
2,524 |
|
Datasheet |
D2 | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 48 V | 48 V | Locking Lever | 19.40mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -10°C ~ 70°C |
|
|
D22028PSWITCH TOGGLE DPDT 0.4VA 48V NKK Switches |
1,763 |
|
Datasheet |
D2 | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 48 V | 48 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | M6 x 0.75 | - | - | -10°C ~ 70°C |
|
|
D22029PSWITCH TOGGLE DPDT 0.4VA 48V NKK Switches |
4,242 |
|
Datasheet |
D2 | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 0.4VA (AC/DC) | 48 V | 48 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | M6 x 0.75 | - | - | -10°C ~ 70°C |
|

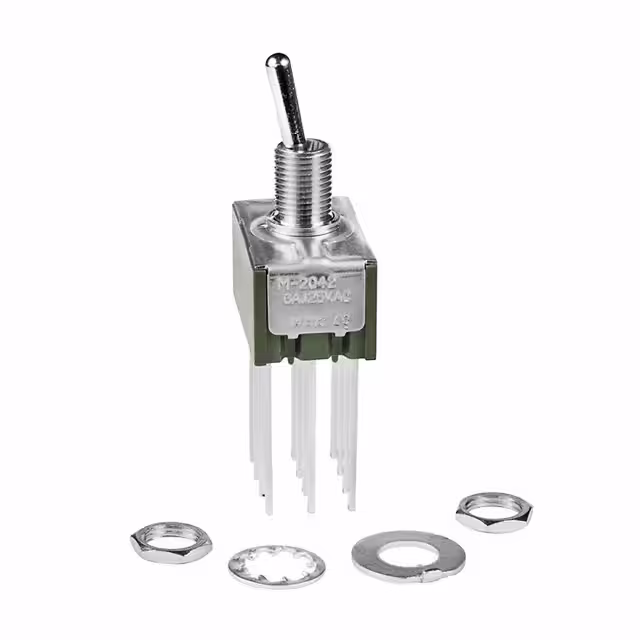

M2042SS1W06SWITCH TOGGLE 4PDT 6A 125V NKK Switches |
2,639 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 4PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
MN19ES2G13BRACKET PC MOUNT MINIATURE TOGGL NKK Switches |
4,820 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MN24SS1W01-CCSWITCH TOGGLE NKK Switches |
4,297 |
|
- |
M | Bulk | Active | Panel Mount | SP3T | On-On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Standard Round with Cap | 13.10mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
MN29SS4G03SWITCH TOGGLE NKK Switches |
2,023 |
|
- |
M | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | M6 x 0.75 | - | - | -30°C ~ 85°C |
|
|
MN24SS1W01-BASWITCH TOGGLE NKK Switches |
4,225 |
|
- |
M | Bulk | Active | Panel Mount | SP3T | On-On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
MN24SS1W01-BBSWITCH TOGGLE NKK Switches |
2,056 |
|
- |
M | Bulk | Active | Panel Mount | SP3T | On-On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
MN33SS1W03BUSHING MOUNT MINIATURE TOGGLE NKK Switches |
4,606 |
|
Datasheet |
M | Bulk | Active | Through Hole | 3PDT | On-Off-On | 4A (AC), 2A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C |
