Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MN22SS2G45SWITCH TOGGLE NKK Switches |
4,878 |
|
- |
M | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -30°C ~ 85°C |
|
|
MN22S3S2G30ANGLE PC MOUNT MINIATURE TOGGLE NKK Switches |
3,887 |
|
- |
M | Bulk | Active | Through Hole, Right Angle | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | - |
|
D22018LVSWITCH TOGGLE SPDT 0.4VA 48V NKK Switches |
1,355 |
|
Datasheet |
D2 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 48 V | 48 V | Locking Lever | 19.40mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -10°C ~ 70°C |
|
|
D22019LVSWITCH TOGGLE SPDT 0.4VA 48V NKK Switches |
4,495 |
|
Datasheet |
D2 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 48 V | 48 V | Locking Lever | 19.40mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -10°C ~ 70°C |
|

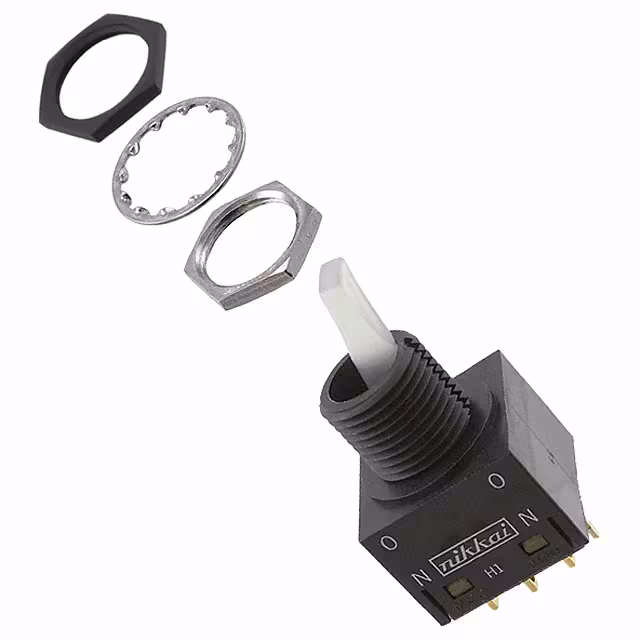

TL22SFAG015FSWITCH TOGGLE DPDT 0.4VA 28V NKK Switches |
3,963 |
|
Datasheet |
TL | Tray | Obsolete | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Flatted | 11.00mm | Illuminated | LED, Green | 2.3 VDC | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP65 - Dust Tight, Water Resistant | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
|
S331T/USWITCH TOGGLE DPST 15A 125V NKK Switches |
3,740 |
|
Datasheet |
S300 | Bulk | Active | Panel Mount | DPST | On-Off | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
TL22SDAG015DSWITCH TOGGLE DPDT 0.4VA 28V NKK Switches |
1,812 |
|
Datasheet |
TL | Bulk | Obsolete | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Flatted | 11.00mm | Illuminated | LED, Amber | 2.1 VDC | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP65 - Dust Tight, Water Resistant | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
|
MN18B2B1W01-AT401HSWITCH TOGGLE NKK Switches |
4,940 |
|
- |
M | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
MN18B2B1W01-AT401ASWITCH TOGGLE NKK Switches |
4,608 |
|
- |
M | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
MN13B2B1W01-VE-AT4181SWITCH TOGGLE NKK Switches |
2,773 |
|
- |
M | Bulk | Active | Panel Mount | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round with Cap | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
