Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A11JB1-JASWITCH TOGGLE SPST 0.4VA 28V NKK Switches |
4,510 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPST | On-Off | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round with Cap | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Black Cap | -30°C ~ 85°C |
|
|
A11AB1-GASWITCH TOGGLE SPST 0.4VA 28V NKK Switches |
1,749 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPST | On-Off | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round with Cap | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Black Cap | -30°C ~ 85°C |
|
|
A11AB-GCSWITCH TOGGLE SPST 0.4VA 28V NKK Switches |
2,214 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPST | On-Off | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round with Cap | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Red Cap | -30°C ~ 85°C |
|
|
B15AV-GASWITCH TOGGLE SPDT 0.4VA 28V NKK Switches |
4,825 |
|
Datasheet |
B | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round with Cap | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Black Cap | -30°C ~ 85°C |
|
|
B15AV-GBSWITCH TOGGLE SPDT 0.4VA 28V NKK Switches |
4,482 |
|
Datasheet |
B | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round with Cap | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | White Cap | -30°C ~ 85°C |
|
M2018SS1W01SWITCH TOGGLE SPDT 6A 125V NKK Switches |
797 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

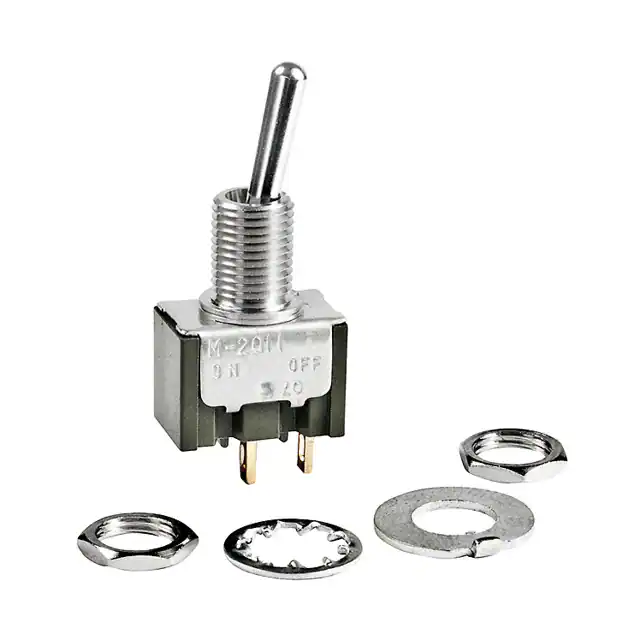

M2011SS1G01SWITCH TOGGLE SPST 0.4VA 28V NKK Switches |
144 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPST | On-Off | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2022S2A2W40/UCSWITCH TOGGLE DPDT 6A 125V NKK Switches |
2,936 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle, Vertical | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
A12JV1SWITCH TOGGLE SPDT 0.4VA 28V NKK Switches |
4,234 |
|
Datasheet |
A | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
|
B13KHSWITCH TOGGLE SPDT 0.4VA 28V NKK Switches |
3,364 |
|
Datasheet |
B | Bulk | Active | Through Hole, Right Angle | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Lever for Cap | 5.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
