Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S425SWITCH TOGGLE DPDT 15A 125V NKK Switches |
2,621 |
|
Datasheet |
S400 | Bulk | Active | Panel Mount | DPDT | On-Mom | 15A (AC) | 125 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|

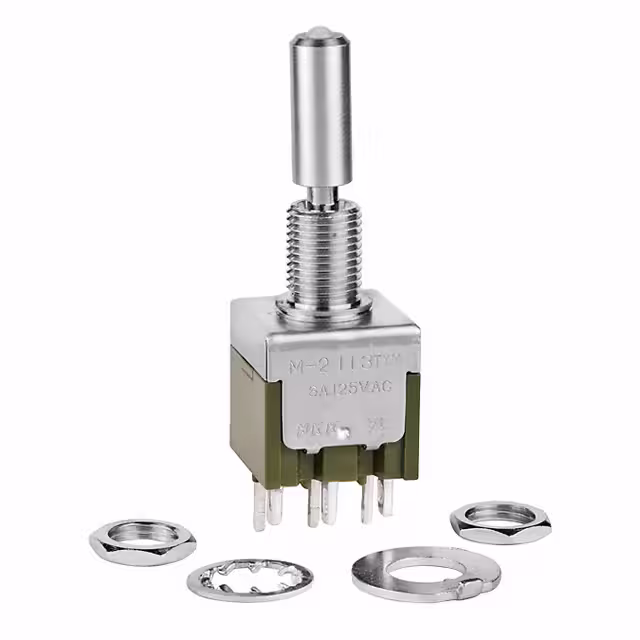

M2113TEFW01SWITCH TOGGLE SPDT 6A 125V NKK Switches |
3,945 |
|
Datasheet |
M2100 | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 14.70mm | Illuminated | LED, Green/Yellow | 2.1 VDC | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
|
MN13ES1W01/3SWITCH TOGGLE NKK Switches |
4,238 |
|
- |
M | Bulk | Active | Panel Mount | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Flatted | 11.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
TL22DFAW015F-AT401PFULLY ILLUMINATED TOGGLE NKK Switches |
3,576 |
|
- |
TL | Bulk | Obsolete | Panel Mount | DPDT | On-On | 6A (AC/DC) | 125 V | 12 V | Flatted | 17.50mm | Illuminated | LED, Green | 2.3 VDC | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP65 - Dust Tight, Water Resistant | - | -10°C ~ 55°C |
|
|
S333F/U-AT402ASWITCH TOGGLE DPDT 20A 125V NKK Switches |
4,390 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | On-Off-On | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
S821/UCSWITCH TOGGLE DPST 30A 125V NKK Switches |
4,030 |
|
Datasheet |
S | Bulk | Obsolete | Panel Mount | DPST | On-Off | 30A (AC/DC) | 125 V | 30 V | Standard Round | 22.00mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
MN44BB1W01BUSHING MOUNT MINIATURE TOGGLE NKK Switches |
2,400 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
M2035B2B1W01-AT401HBUSHING MOUNT MINIATURE TOGGLE NKK Switches |
1,409 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 3PDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
MN27LL2G30SWITCH TOGGLE NKK Switches |
3,579 |
|
- |
M | Bulk | Active | Through Hole, Right Angle | SP3T | On-On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -30°C ~ 85°C |
|
|
MN33LL4G03BUSHING MOUNT MINIATURE TOGGLE NKK Switches |
3,268 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
