Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

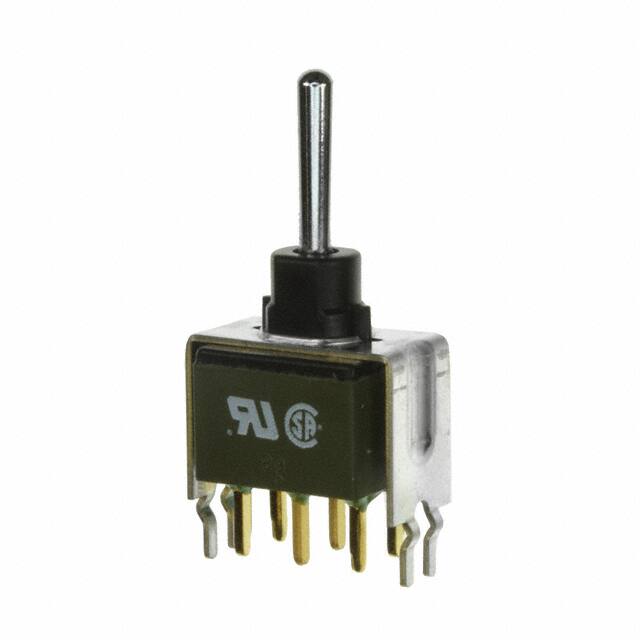

M2T28SA5A13/UCSWITCH TOGGLE DPDT 6A 125V NKK Switches |
3,951 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole | DPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|

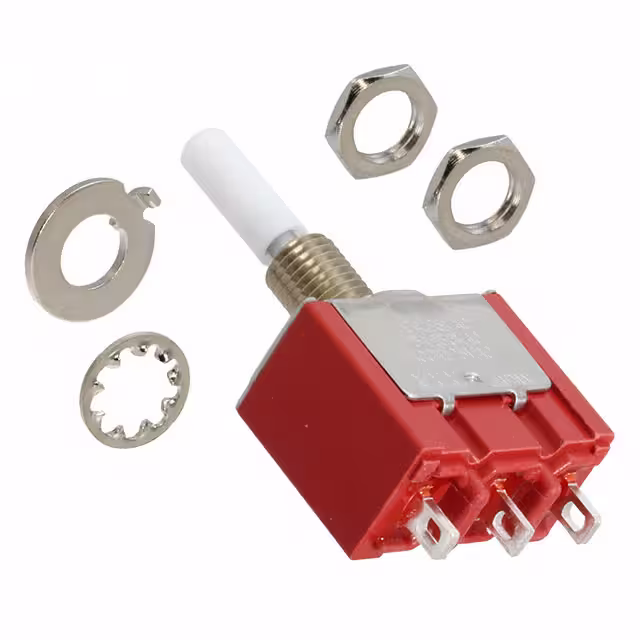

P2013SWITCH TOGGLE SPDT 10A 125V NKK Switches |
2,028 |
|
Datasheet |
P | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 10A (AC) | 125 V | - | Standard Round with Cap | 13.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | M6 x 0.75 | - | White Cap | -10°C ~ 85°C |
|
S331R/215SWITCH TOGGLE DPST 25A 125V NKK Switches |
1,288 |
|
Datasheet |
S300R | Bulk | Obsolete | Panel Mount | DPST | On-Off | 25A (AC/DC) | 125 V | 30 V | Flatted | 27.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | Black Actuator | -10°C ~ 70°C |
|
S3BSWITCH TOGGLE SPDT 5A 125V NKK Switches |
3,356 |
|
Datasheet |
S | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 5A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
TL22SNAW016FSWITCH TOGGLE DPDT 6A 125V NKK Switches |
3,916 |
|
Datasheet |
TL | Bulk | Obsolete | Panel Mount | DPDT | On-On | 6A (AC/DC) | 125 V | 12 V | Flatted | 11.00mm | Illuminated | LED, Green | 3.5 VDC | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP65 - Dust Tight, Water Resistant | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
|
M2044B2B3W01-VASWITCH TOGGLE DP3T 6A 125V NKK Switches |
4,513 |
|
- |
M | Bulk | Obsolete | Panel Mount | DP3T | On-On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round with Cap | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|

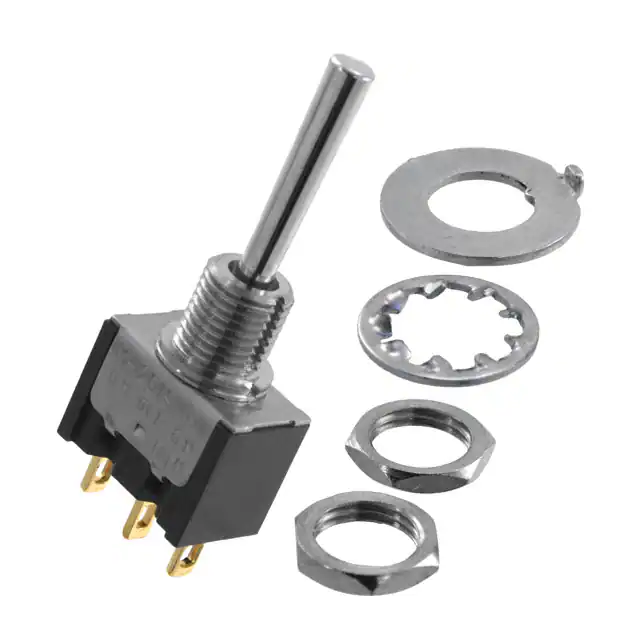

M2019QA1G01SWITCH TOGGLE SPDT 0.4VA 28V NKK Switches |
2,932 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 14.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
A13JW/3SWITCH TOGGLE SPDT 0.4VA 28V NKK Switches |
2,209 |
|
Datasheet |
A | Bulk | Obsolete | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.30mm | Non-Illuminated | - | - | Wire Wrap | - | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
|
M2011S2D1G01SWITCH TOGGLE SPST 0.4VA 28V NKK Switches |
1,350 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPST | On-Off | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 5.08mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2011S2D3G03SWITCH TOGGLE SPST 0.4VA 28V NKK Switches |
3,124 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPST | On-Off | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 5.08mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
