Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2T13S4A5W30SWITCH TOGGLE SPDT 6A 125V NKK Switches |
4,162 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole, Right Angle | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2T13SA5A13SWITCH TOGGLE SPDT 6A 125V NKK Switches |
1,699 |
|
Datasheet |
M2 | Bulk | Active | Through Hole | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2T13SA5G13SWITCH TOGGLE SPDT 0.4VA 28V NKK Switches |
3,012 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|

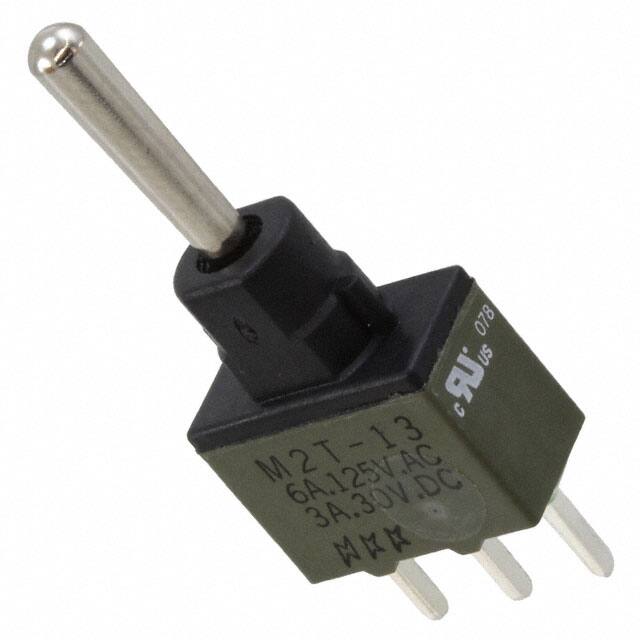

M2T13SA5W03/CULSWITCH TOGGLE SPDT 6A 125V NKK Switches |
4,962 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2T13SA5W05SWITCH TOGGLE SPDT 6A 125V NKK Switches |
2,773 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|

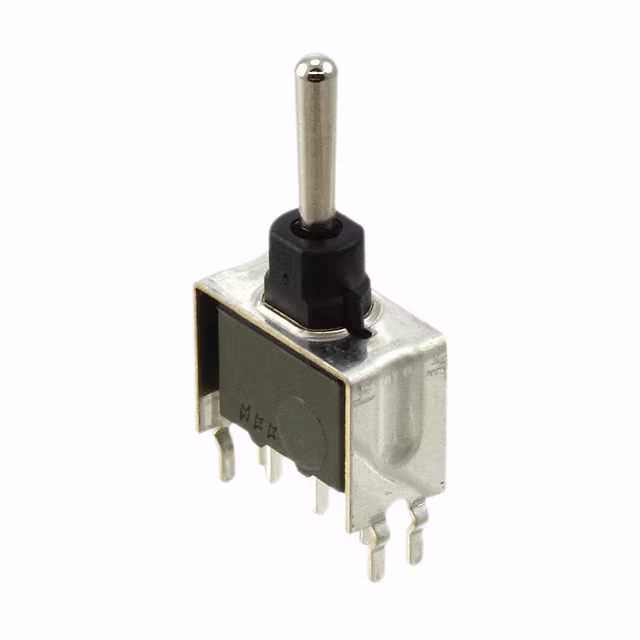

M2T13SA5W13SWITCH TOGGLE SPDT 6A 125V NKK Switches |
1,982 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2T15S4A5G30SWITCH TOGGLE SPDT 0.4VA 28V NKK Switches |
4,592 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole, Right Angle | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2T15S4A5G40SWITCH TOGGLE SPDT 0.4VA 28V NKK Switches |
4,014 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole, Right Angle, Vertical | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2T15S4A5W13SWITCH TOGGLE SPDT 6A 125V NKK Switches |
1,293 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2T18S4A5G13SWITCH TOGGLE SPDT 0.4VA 28V NKK Switches |
1,424 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
