Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S31F-AT401SSWITCH TOGGLE 3PST 20A 125V NKK Switches |
2,994 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 3PST | On-Off | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
S41F/CULSWITCH TOGGLE 4PST 20A 125V NKK Switches |
4,924 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 4PST | On-Off | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
S332F-AT401ASWITCH TOGGLE DPDT 20A 125V NKK Switches |
2,637 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | On-On | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
S332F-AT401HSWITCH TOGGLE DPDT 20A 125V NKK Switches |
1,414 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | On-On | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
S32F/CULSWITCH TOGGLE 3PDT 20A 125V NKK Switches |
2,159 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 3PDT | On-On | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
S332F-AT402HSWITCH TOGGLE DPDT 20A 125V NKK Switches |
4,294 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | On-On | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
S332F-AT402ASWITCH TOGGLE DPDT 20A 125V NKK Switches |
3,808 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | On-On | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
S332F-AT402CSWITCH TOGGLE DPDT 20A 125V NKK Switches |
1,160 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | On-On | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|

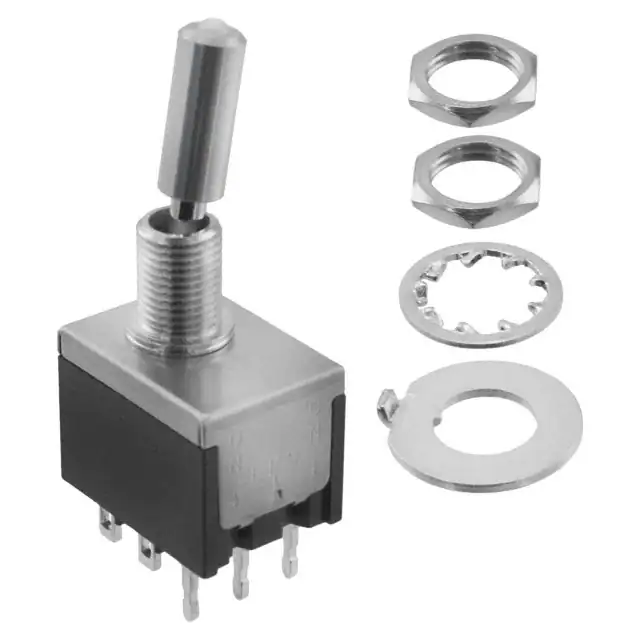

M2122TCFW01SWITCH TOGGLE DPDT 6A 125V NKK Switches |
1,377 |
|
Datasheet |
M2100 | Bulk | Obsolete | Panel Mount | DPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 14.70mm | Illuminated | LED, Green/Red | 1.7, 2 VDC | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
|
S332F-AT401SSWITCH TOGGLE DPDT 20A 125V NKK Switches |
2,404 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | On-On | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
