Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

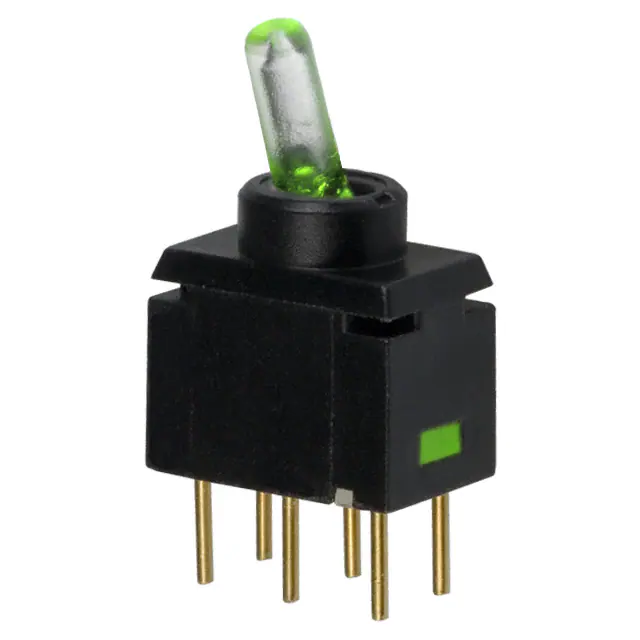

G12JPFSWITCH TOGGLE SPDT 0.4VA 28V NKK Switches |
4,314 |
|
Datasheet |
G | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.80mm | Illuminated | LED, Green | 2.1 VDC | PC Pin | - | Unthreaded | - | Process Sealed | -25°C ~ 85°C |
|
A22AHSWITCH TOGGLE DPDT 0.4VA 28V NKK Switches |
2,590 |
|
Datasheet |
A | Tray | Active | Through Hole, Right Angle | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|

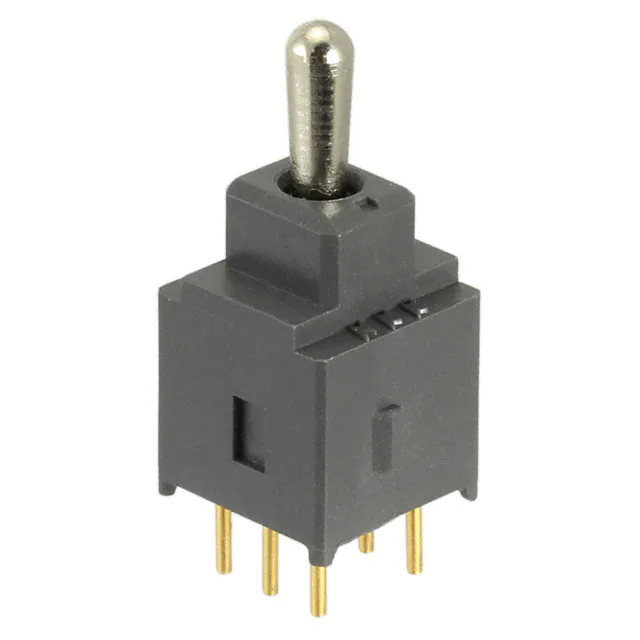

A23JPSWITCH TOGGLE DPDT 0.4VA 28V NKK Switches |
1,303 |
|
Datasheet |
A | Tray | Active | Through Hole | DPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|

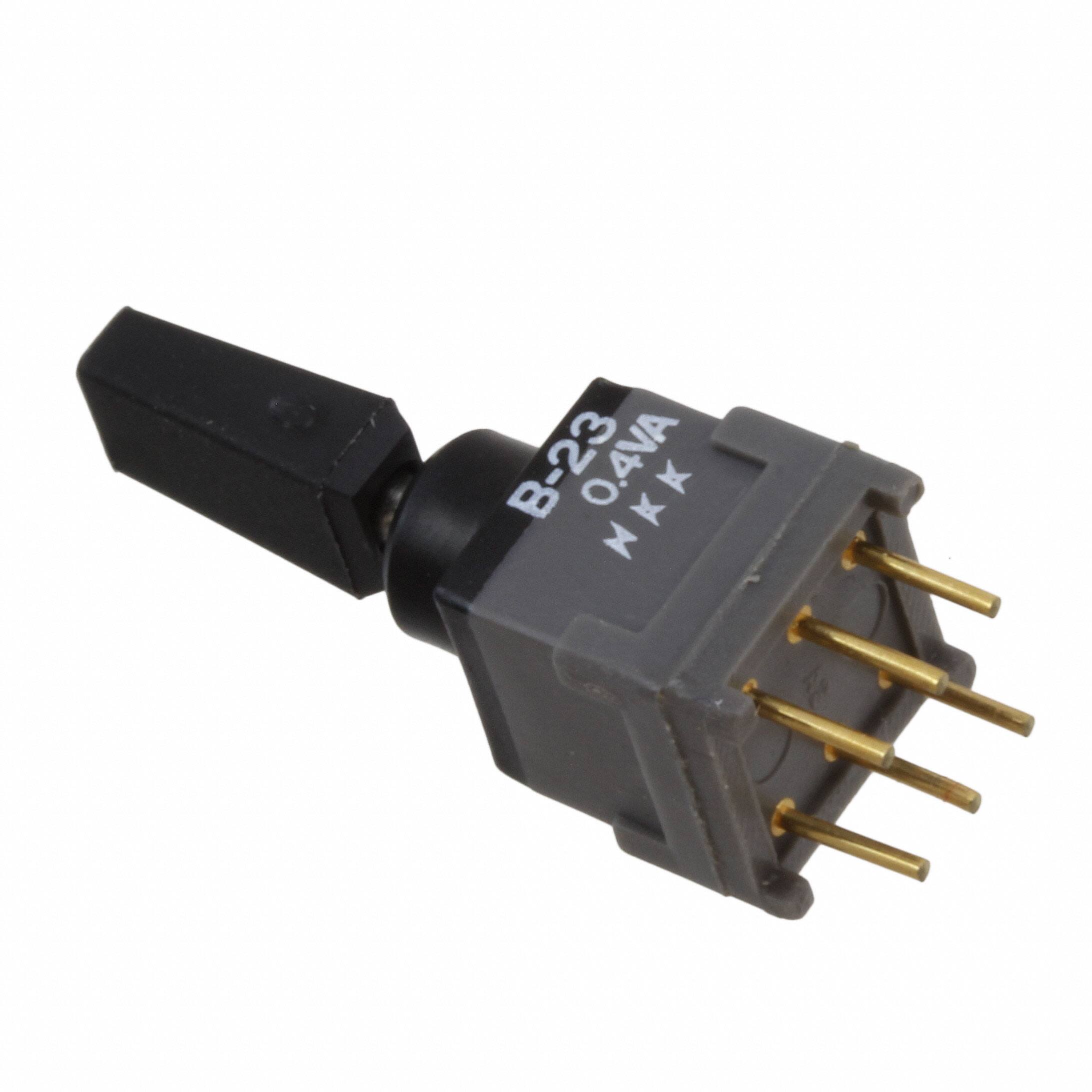

B23KP-AASWITCH TOGGLE DPDT 0.4VA 28V NKK Switches |
4,066 |
|
Datasheet |
B | Bulk | Active | Through Hole | DPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Snap On Paddle | 9.40mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Black Actuator | -30°C ~ 85°C |
|

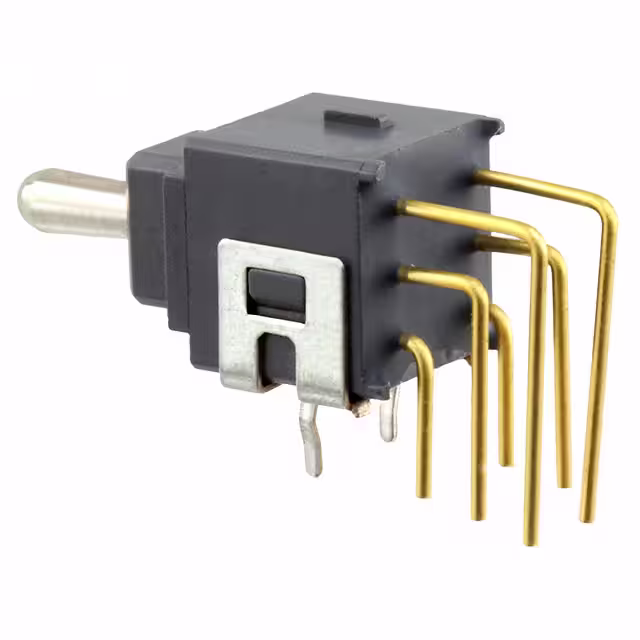

A23JVSWITCH TOGGLE DPDT 0.4VA 28V NKK Switches |
1,323 |
|
Datasheet |
A | Tray | Active | Through Hole, Right Angle, Vertical | DPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|

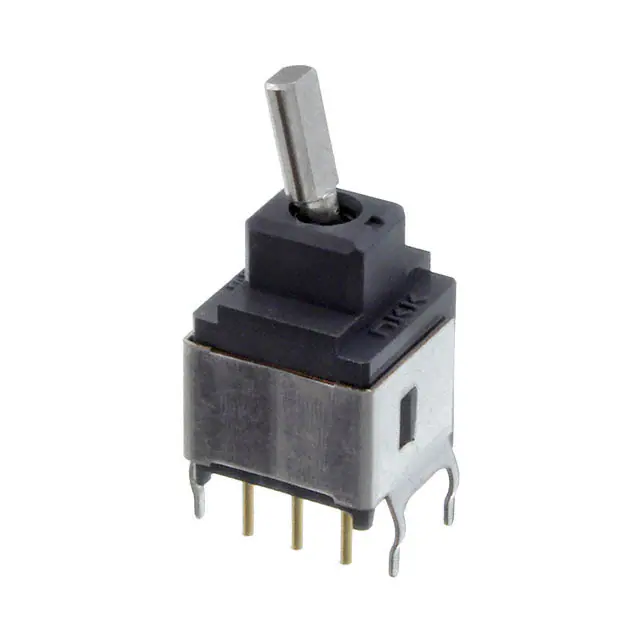

A22HBSWITCH TOGGLE DPDT 0.4VA 28V NKK Switches |
1,263 |
|
Datasheet |
A | Tray | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Flatted | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|

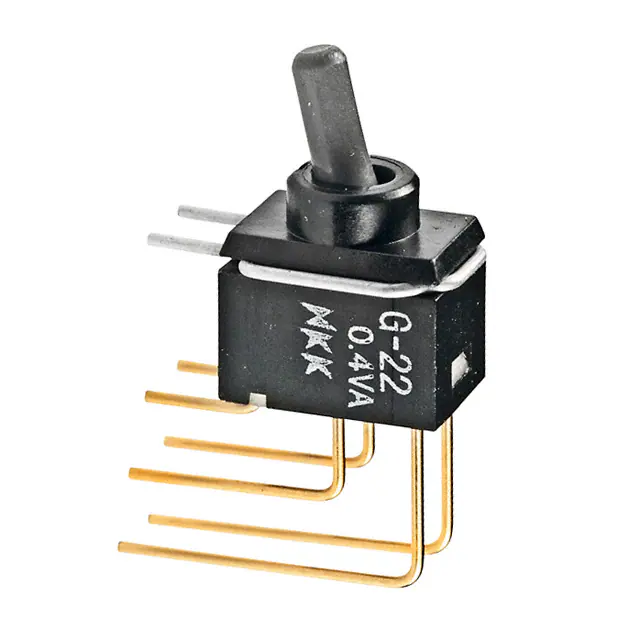

G22AVSWITCH TOGGLE DPDT 0.4VA 28V NKK Switches |
3,976 |
|
Datasheet |
G | Tray | Active | Through Hole, Right Angle, Vertical | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -25°C ~ 85°C |
|
G12JHCSWITCH TOGGLE SPDT 0.4VA 28V NKK Switches |
4,841 |
|
Datasheet |
G | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.80mm | Illuminated | LED, Red | 2 VDC | PC Pin | - | Unthreaded | - | Process Sealed | -25°C ~ 85°C |
|

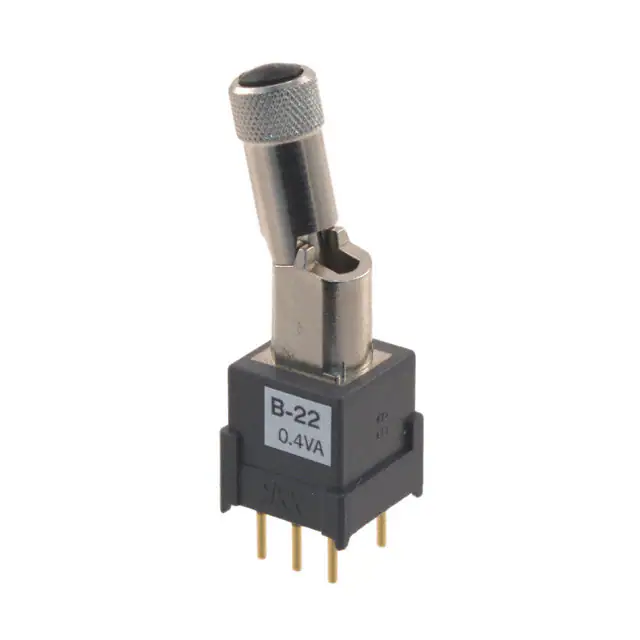

B22LPSWITCH TOGGLE DPDT 0.4VA 28V NKK Switches |
4,113 |
|
Datasheet |
B | Tray | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Locking Lever | 12.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

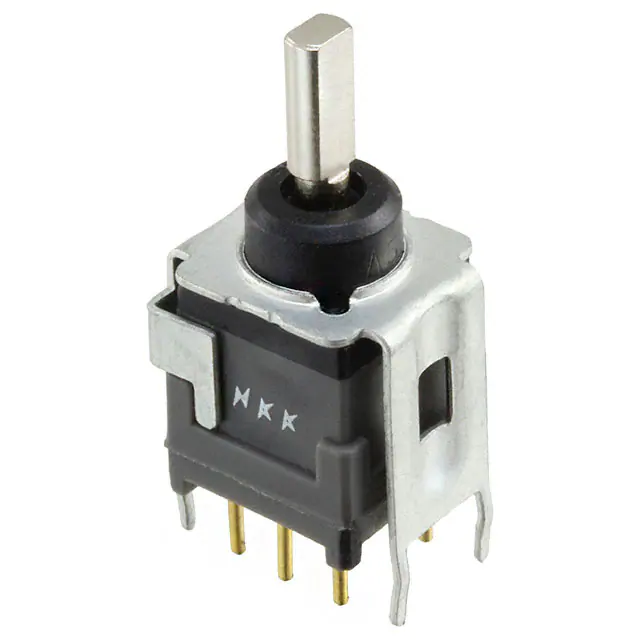

B29HBSWITCH TOGGLE DPDT 0.4VA 28V NKK Switches |
1,911 |
|
Datasheet |
B | Bulk | Active | Through Hole | DPDT | On-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Flatted | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
