Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

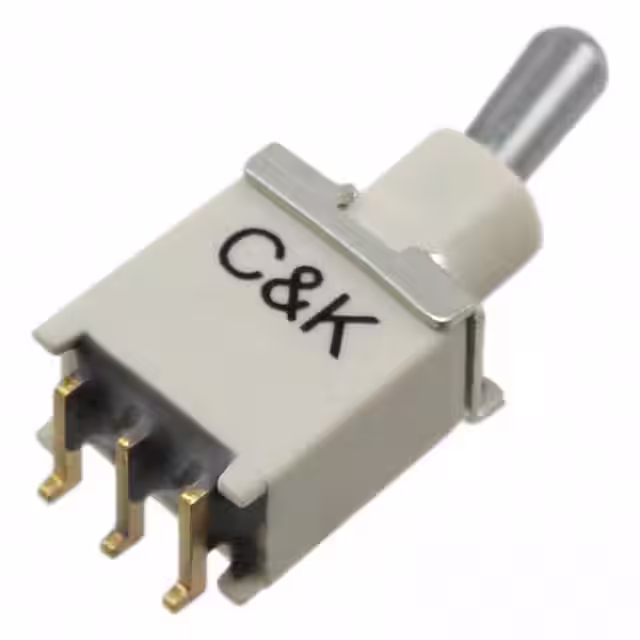

ET08MD1SA1BESWITCH TOGGLE SPDT 0.4VA 20V C&K |
349 |
|
Datasheet |
ET | Tape & Reel (TR) | Active | Surface Mount, Right Angle | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.10mm | Non-Illuminated | - | - | Gull Wing | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

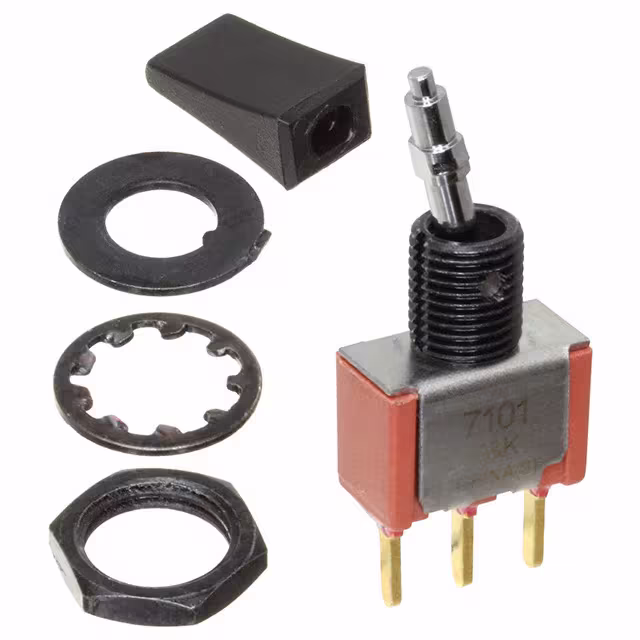

7101L41DCBE22SWITCH TOGGLE SPDT 0.4VA 20V C&K |
342 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 13.49mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Black Actuator | -30°C ~ 85°C |
|
ET05MD1SAPESWITCH TOGGLE SPDT 0.4VA 20V C&K |
149 |
|
Datasheet |
ET | Tape & Reel (TR) | Active | Surface Mount, Right Angle | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.10mm | Non-Illuminated | - | - | Gull Wing | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

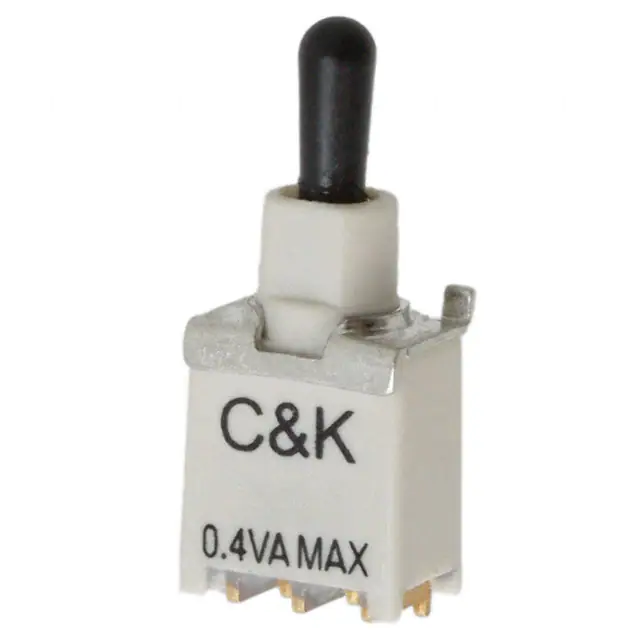

ET05M3D1SA1BESWITCH TOGGLE SPDT 0.4VA 20V C&K |
488 |
|
Datasheet |
ET | Tape & Reel (TR) | Active | Surface Mount, Right Angle | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.10mm | Non-Illuminated | - | - | Gull Wing | - | Unthreaded | IP57 - Dust Protected, Waterproof | Black Antistatic Actuator | -30°C ~ 85°C |
|

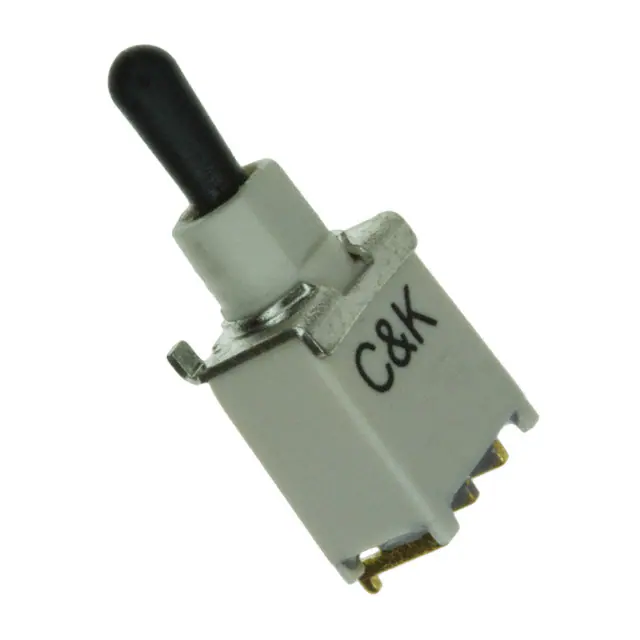

ET03M3D1SA1BESWITCH TOGGLE SPDT 0.4VA 20V C&K |
485 |
|
Datasheet |
ET | Tape & Reel (TR) | Active | Surface Mount, Right Angle | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.10mm | Non-Illuminated | - | - | Gull Wing | - | Unthreaded | IP57 - Dust Protected, Waterproof | Black Antistatic Actuator | -30°C ~ 85°C |
|

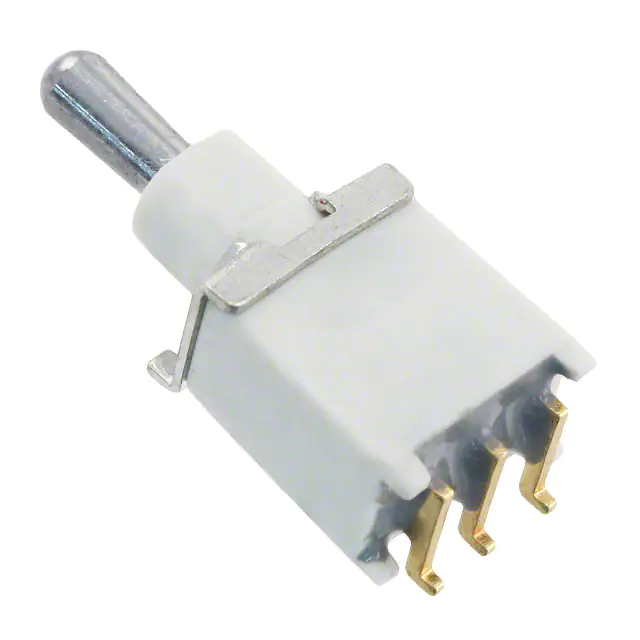

ET03MD1SA1BESWITCH TOGGLE SPDT 0.4VA 20V C&K |
458 |
|
Datasheet |
ET | Tape & Reel (TR) | Active | Surface Mount, Right Angle | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.10mm | Non-Illuminated | - | - | Gull Wing | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

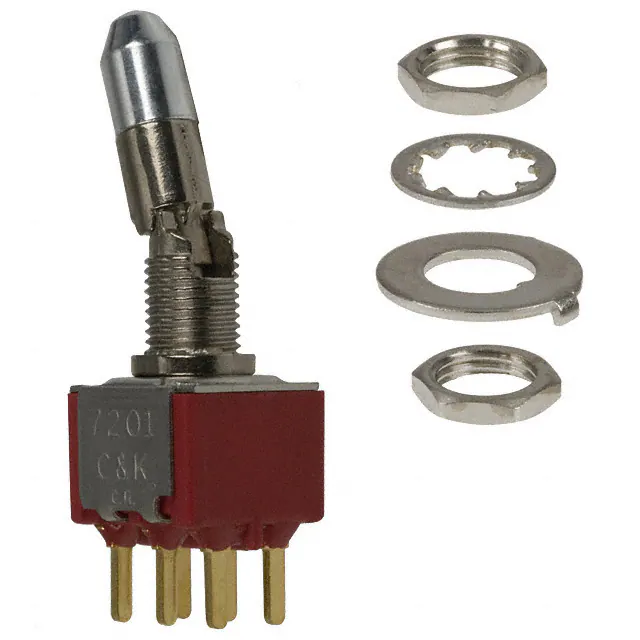

7201K2CBESWITCH TOGGLE DPDT 0.4VA 20V C&K |
182 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Locking Lever | 17.88mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
ET07MD1SA1BESWITCH TOGGLE SPDT 0.4VA 20V C&K |
266 |
|
Datasheet |
ET | Tape & Reel (TR) | Active | Surface Mount, Right Angle | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.10mm | Non-Illuminated | - | - | Gull Wing | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
GT11MAVBESWITCH TOGGLE SPDT 0.4VA 20V C&K |
481 |
|
Datasheet |
GT | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 3.81mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
GT12MAVBESWITCH TOGGLE SPST 0.4VA 20V C&K |
135 |
|
Datasheet |
GT | Bulk | Active | Through Hole, Right Angle, Vertical | SPST | On-Off | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 3.81mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
