Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PT101SSQSWITCH TOGGLE SPDT 15A 277V C&K |
4,324 |
|
Datasheet |
PT | Tray | Active | Panel Mount | SPDT | On-On | 15A (AC/DC) | 277 V | 28 V | Standard Round | 17.20mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | Sealed | -40°C ~ 85°C |
|
7401P3H3ZQESWITCH TOGGLE 4PDT 5A 120V C&K |
4,421 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | 4PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 10.92mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7401K2ZGESWITCH TOGGLE 4PDT 5A 120V C&K |
2,487 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | 4PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Locking Lever | 17.88mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

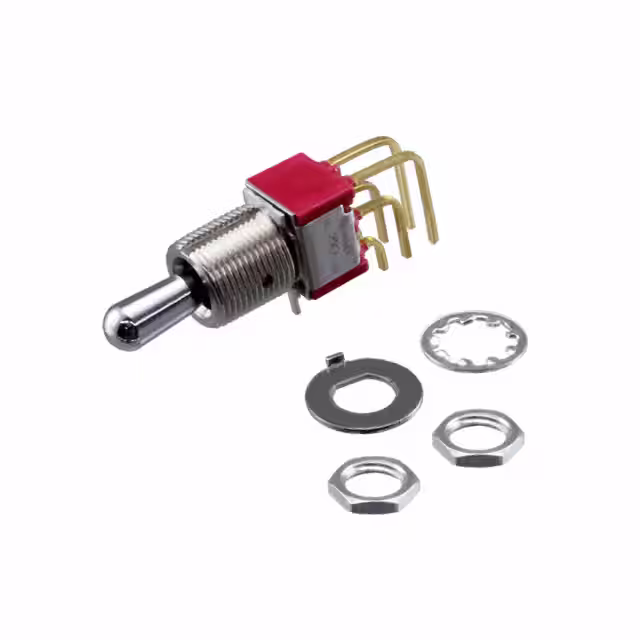

7211T1PAV2BESWITCH TOGGLE SP3T 0.4VA 20V C&K |
4,599 |
|
Datasheet |
7000 | Tray | Active | Panel Mount, Right Angle, Vertical | SP3T | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Anti-Rotation | 12.37mm | Non-Illuminated | - | - | PC Pin | Circular - 11.91mm Dia | 15/32-32 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
9201K1ZQESWITCH TOGGLE C&K |
2,657 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
7408L2PYZQESWITCH TOGGLE 4PDT 5A 120V C&K |
1,952 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | 4PDT | On-Mom | 5A (AC/DC) | 120 V | 28 V | Anti-Rotation | 13.97mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7411L40YZQESWITCH TOGGLE DP3T 5A 120V C&K |
2,129 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DP3T | On-On-On | 5A (AC/DC) | 120 V | 28 V | Lever for Cap | - | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
7413P3YZQESWITCH TOGGLE DP3T 5A 120V C&K |
1,099 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DP3T | On-On-Mom | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
7307T1PZQESWITCH TOGGLE 3PDT 5A 120V C&K |
4,335 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | 3PDT | On-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Anti-Rotation | 12.37mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7415SYWQESWITCH TOGGLE DP3T 5A 120V C&K |
2,232 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DP3T | Mom-On-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
