Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7401SDZQESWITCH TOGGLE 4PDT 5A 120V C&K |
2,576 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | 4PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 12.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7301L1D9ABESWITCH TOGGLE 3PDT 0.4VA 20V C&K |
4,650 |
|
Datasheet |
7000 | Bulk | Active | Through Hole, Right Angle | 3PDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 18.04mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
U41MHZ3QESWITCH TOGGLE 4PDT 5A 120V C&K |
2,376 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | 4PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 5.08mm | Non-Illuminated | - | - | Quick Connect - 0.062" (1.5mm) | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7207L2D9AV2BESWITCH TOGGLE DPDT 0.4VA 20V C&K |
4,287 |
|
Datasheet |
7000 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 15.75mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7201K9AV2QESWITCH TOGGLE DPDT 5A 120V C&K |
3,876 |
|
Datasheet |
7000 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Locking Lever | 17.88mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
U31SPDCGESWITCH TOGGLE 3PDT 5A 120V C&K |
3,189 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | 3PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Anti-Rotation | 12.45mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7301TZQESWITCH TOGGLE 3PDT 5A 120V C&K |
1,096 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | 3PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 17.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7201P3D9V3BESWITCH TOGGLE DPDT 0.4VA 20V C&K |
2,016 |
|
Datasheet |
7000 | Bulk | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 13.21mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7401SD9V2QESWITCH TOGGLE 4PDT 5A 120V C&K |
3,829 |
|
Datasheet |
7000 | Bulk | Active | Through Hole | 4PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 12.45mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

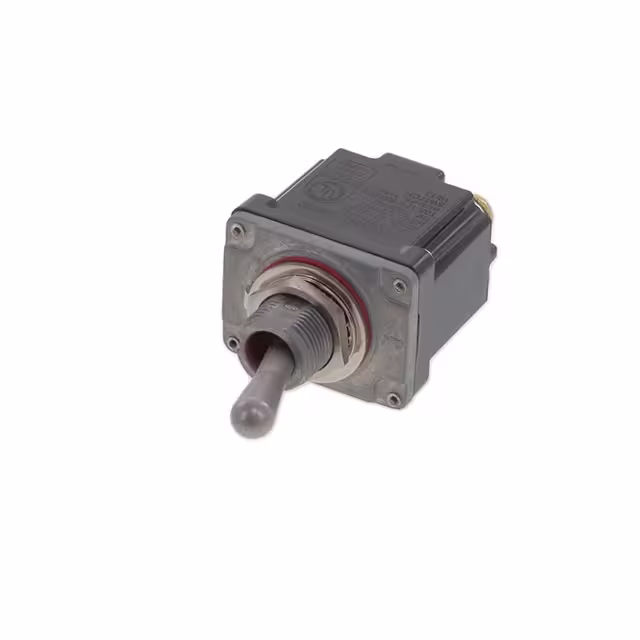

PT208SSQSWITCH TOGGLE DPDT 10A 277V C&K |
1,295 |
|
Datasheet |
PT | Bulk | Active | Panel Mount | DPDT | On-Mom | 10A (AC/DC) | 277 V | 28 V | Standard Round | 17.20mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | Sealed | -40°C ~ 85°C |
