Angle, Linear Position Measuring
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Programmable | For Measuring | Technology | Rotation Angle - Electrical, Mechanical | Linear Range | Output | Output Signal | Actuator Type | Linearity | Resistance | Resistance Tolerance | Voltage - Supply | Mounting Type | Termination Style | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6915-1003-030POT ELEMENT/WIPER 10K OHM TE Connectivity Measurement Specialties |
2,654 |
|
Datasheet |
- | 6915 | Bag | Active | - | Rotary Position | Resistive | 0° ~ 340°, Continuous | - | Resistive | Clockwise Increase | Exposed Element - Rotary | ±0.5% | 10 kOhms | ±10% | - | Custom | Wire Leads | -65°C ~ 125°C | - | - | - |
|
6015-1002-030SENSOR ROTARY 340DEG SLDR TURRET TE Connectivity Measurement Specialties |
4,019 |
|
Datasheet |
Module | 6015 | Bag | Active | - | Rotary Position | Resistive | 0° ~ 340°, Continuous | - | Resistive | Clockwise Increase | Round Shaft | ±0.5% | 5 kOhms | ±10% | - | Custom | Solder Turret | -65°C ~ 125°C | - | - | - |
|
|
6209-1002-030SENSOR ROTARY 340DEG SLDR TURRET TE Connectivity Measurement Specialties |
2,627 |
|
Datasheet |
Module, Round Shaft | 6209 | Bag | Active | - | Rotary Position | Resistive | 0° ~ 340°, Continuous | - | Resistive | Clockwise Increase | Round Shaft | ±0.5% | 5 kOhms | ±10% | - | Custom | Solder Turret | -65°C ~ 125°C | - | - | - |
|

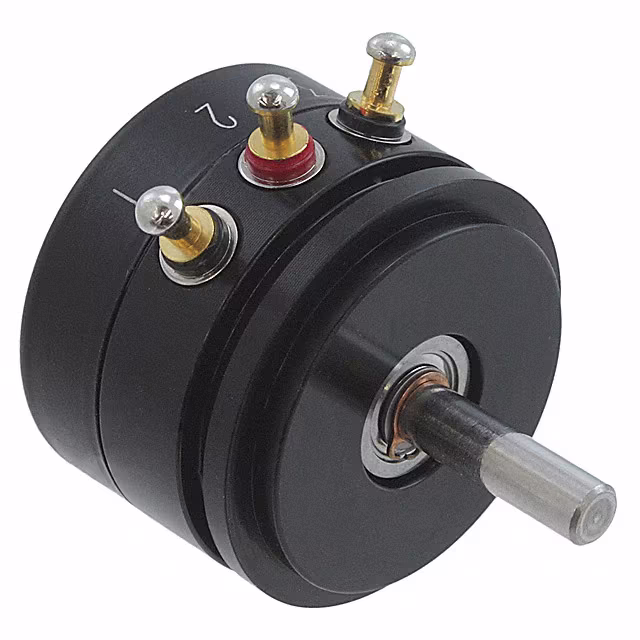

6009-1002-030SENSOR ROTARY 340DEG SLDR TURRET TE Connectivity Measurement Specialties |
1,534 |
|
Datasheet |
Module | 6009 | Bag | Active | - | Rotary Position | Resistive | 0° ~ 340°, Continuous | - | Resistive | Clockwise Increase | Round Shaft | ±0.5% | 5 kOhms | ±10% | - | Custom | Solder Turret | -65°C ~ 125°C | - | - | - |
|
|
010312370000-MCD-375-250 TE Connectivity Measurement Specialties |
1,230 |
|
Datasheet |
- | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
010312340000-MCD-375-025 TE Connectivity Measurement Specialties |
3,504 |
|
Datasheet |
- | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
6009-1003-030ROTARY POSITION 10K OHM SERVO TE Connectivity Measurement Specialties |
1,716 |
|
Datasheet |
Module | 6009 | Bag | Active | - | Rotary Position | Resistive | 0° ~ 340°, Continuous | - | Resistive | Clockwise Increase | Round Shaft | ±0.5% | 10 kOhms | ±10% | - | Custom | Solder Turret | -65°C ~ 125°C | - | - | - |
|

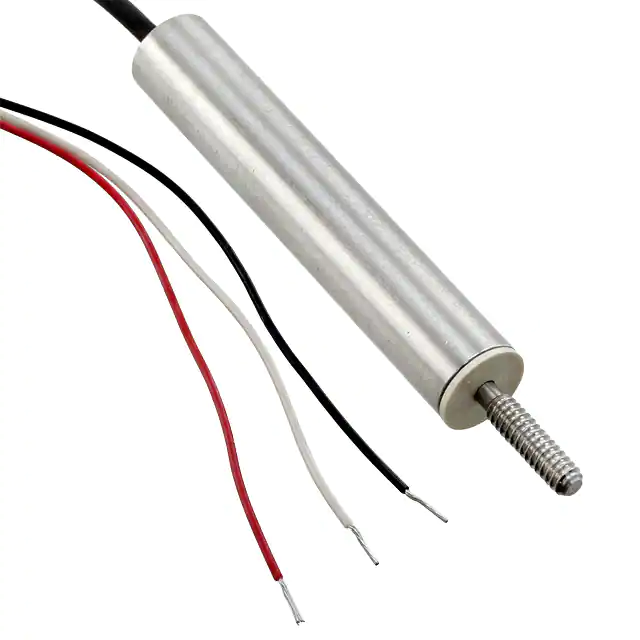

5903-1010-030POT LINEAR POSITION 10KOHM 1"D TE Connectivity Measurement Specialties |
4,183 |
|
Datasheet |
- | 5903 | Bag | Active | - | Linear Position | Resistive | - | 0 ~ 25.40mm (0 ~ 1.00") | Resistive | - | Round Shaft | ±1% | 10 kOhms | ±10% | - | Custom | Wire Leads | -65°C ~ 125°C | - | - | - |
|

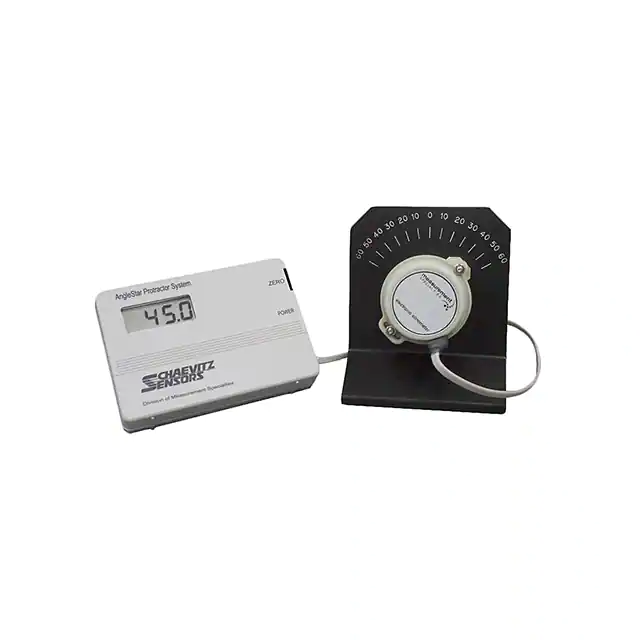

02160023-000SENSOR ANGLE 39.98DEG CBL W/CONN TE Connectivity Measurement Specialties |
1,689 |
|
Datasheet |
Module | AngleStar® | Bulk | Obsolete | - | Angle | - | 39.98° (±19.99°) | - | Digital Readout | - | - | ±1% | - | - | 9V ~ 15V | Chassis Mount | Cable with Connector | -18°C ~ 55°C | - | - | - |
|
|
02160021-000SENSOR ANGLE 90DEG CBL W/CONN TE Connectivity Measurement Specialties |
4,479 |
|
Datasheet |
Module | AngleStar® | Bulk | Obsolete | - | Angle | - | 90° (±45°) | - | Digital Readout | - | - | ±1% | - | - | 9V ~ 15V | Chassis Mount | Cable with Connector | -18°C ~ 55°C | - | - | - |
