Angle, Linear Position Measuring
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Programmable | For Measuring | Technology | Rotation Angle - Electrical, Mechanical | Linear Range | Output | Output Signal | Actuator Type | Linearity | Resistance | Resistance Tolerance | Voltage - Supply | Mounting Type | Termination Style | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

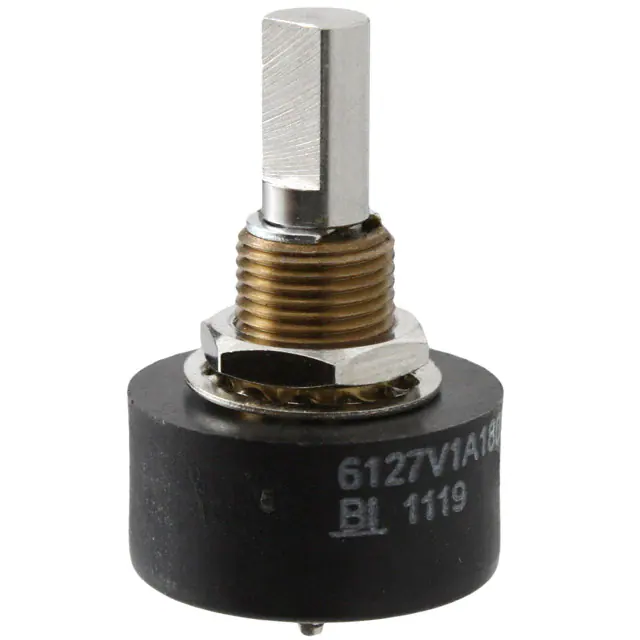

6127V1A180L.5FSSENSOR ROTARY 180DEG SLDR TURRET TT Electronics/BI |
432 |
|
Datasheet |
Module, Flatted Shaft | - | Tray | Active | - | Rotary Position | Hall Effect | 0° ~ 180°, Continuous | - | Analog Voltage | Clockwise Increase | Flatted Shaft | ±0.5% | - | - | 4.5V ~ 5.5V | Panel Mount | Solder Turret | -40°C ~ 125°C | - | - | - |
|

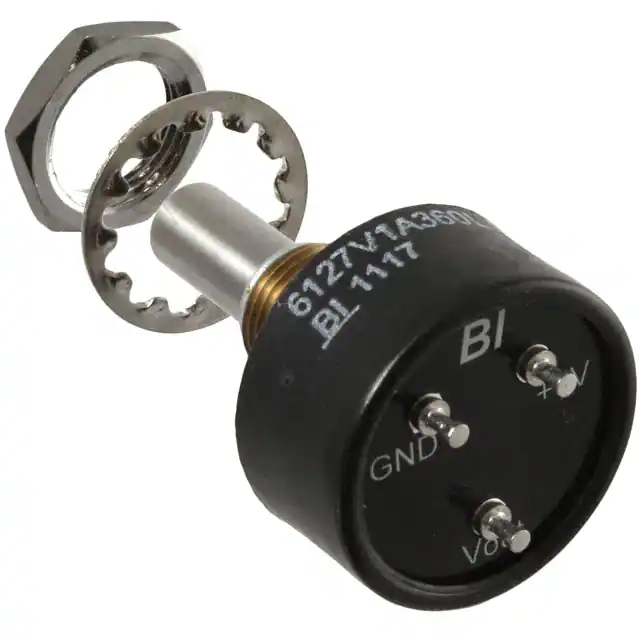

6127V1A360L.5SENSOR ROTARY 360DEG SLDR TURRET TT Electronics/BI |
4,427 |
|
Datasheet |
Module, Round Shaft | - | Tray | Active | - | Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | Analog Voltage | Clockwise Increase | Round Shaft | ±0.5% | - | - | 4.5V ~ 5.5V | Panel Mount | Solder Turret | -40°C ~ 125°C | - | - | - |
|

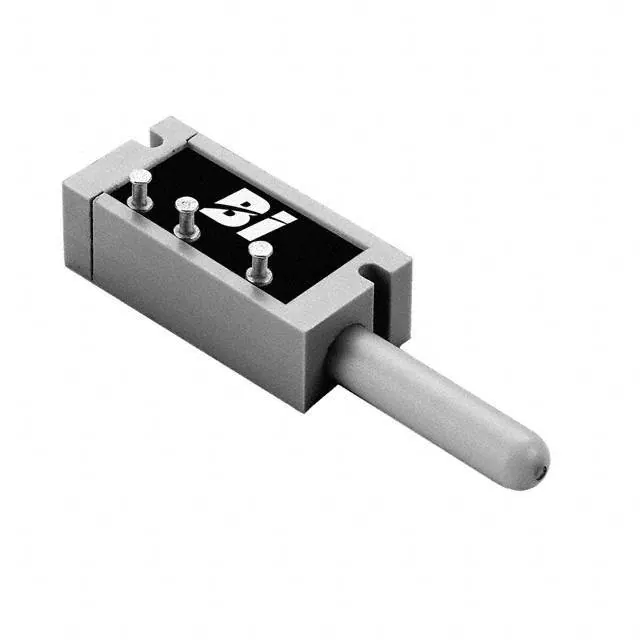

404R1KL1.0SENSOR LINEAR 12.7MM SLD TURRET TT Electronics/BI |
2,291 |
|
Datasheet |
Box with Solder Turrets | Model 404 | Bulk | Active | - | Linear Position | Resistive | - | 0 ~ 12.70mm (0 ~ 0.50") | Resistive | - | Round Shaft | ±1% | 1 kOhms | ±10% | - | Chassis Mount | Solder Turret | -40°C ~ 125°C | - | - | - |
|

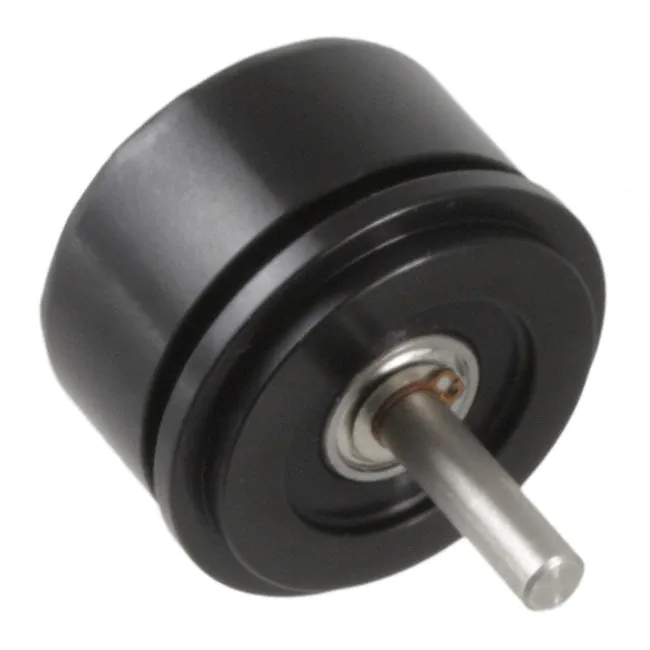

6153V1A360L.5SENSOR ROTARY 360DEG SLDR TURRET TT Electronics/BI |
2,492 |
|
Datasheet |
Module, Round Shaft | 6150 | Bulk | Active | - | Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | Analog Voltage | Clockwise Increase | Round Shaft | ±0.5% | - | - | 4.5V ~ 5.5V | Panel Mount | Solder Turret | -40°C ~ 125°C | - | - | - |
|

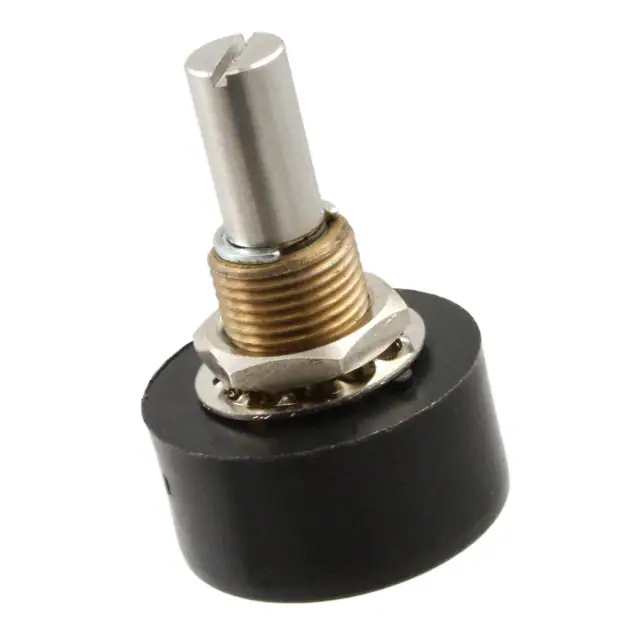

6127V1A90L.5SENSOR ROTARY 90DEG SLDR TURRET TT Electronics/BI |
4,193 |
|
Datasheet |
Module, Round Shaft | - | Tray | Active | - | Rotary Position | Hall Effect | 0° ~ 90°, Continuous | - | Analog Voltage | Clockwise Increase | Round Shaft | ±0.5% | - | - | 4.5V ~ 5.5V | Panel Mount | Solder Turret | -40°C ~ 125°C | - | - | - |
|
6127V1A90L.25FSSENSOR ROTARY 90DEG SLDR TURRET TT Electronics/BI |
2,930 |
|
Datasheet |
Module, Flatted Shaft | 6120 | Bulk | Active | - | Rotary Position | Hall Effect | 0° ~ 90°, Continuous | - | Analog Voltage | Clockwise Increase | Flatted Shaft | ±0.25% | - | - | 4.5V ~ 5.5V | Panel Mount | Solder Turret | -40°C ~ 125°C | - | - | - |
|

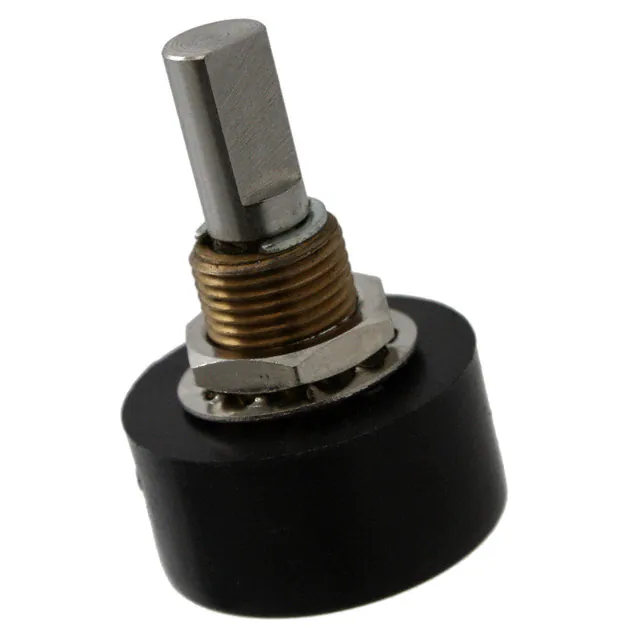

6127V1A360L.5FSSENSOR ROTARY 360DEG SLDR TURRET TT Electronics/BI |
3,210 |
|
Datasheet |
Module, Flatted Shaft | - | Tray | Active | - | Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | Analog Voltage | Clockwise Increase | Flatted Shaft | ±0.5% | - | - | 4.5V ~ 5.5V | Panel Mount | Solder Turret | -40°C ~ 125°C | - | - | - |
|
|
404R10KL1.0SENSOR LINEAR 12.7MM SLD TURRET TT Electronics/BI |
4,028 |
|
Datasheet |
Box with Solder Turrets | Model 404 | Bulk | Active | - | Linear Position | Resistive | - | 0 ~ 12.70mm (0 ~ 0.50") | Resistive | - | Round Shaft | ±1% | 10 kOhms | ±10% | - | Chassis Mount | Solder Turret | -40°C ~ 125°C | - | - | - |
|
|
404R5KL1.0SENSOR LINEAR 12.7MM SLD TURRET TT Electronics/BI |
1,512 |
|
Datasheet |
Box with Solder Turrets | Model 404 | Bulk | Active | - | Linear Position | Resistive | - | 0 ~ 12.70mm (0 ~ 0.50") | Resistive | - | Round Shaft | ±1% | 5 kOhms | ±10% | - | Chassis Mount | Solder Turret | -40°C ~ 125°C | - | - | - |
|

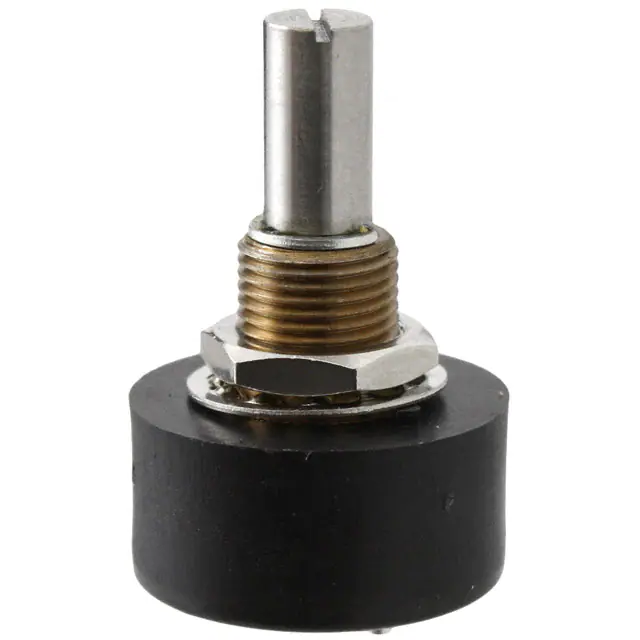

6127V1A180L.5SENSOR ROTARY 180DEG SLDR TURRET TT Electronics/BI |
4,783 |
|
Datasheet |
Module, Round Shaft | - | Tray | Active | - | Rotary Position | Hall Effect | 0° ~ 180°, Continuous | - | Analog Voltage | Clockwise Increase | Round Shaft | ±0.5% | - | - | 4.5V ~ 5.5V | Panel Mount | Solder Turret | -40°C ~ 125°C | - | - | - |
