Angle, Linear Position Measuring
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Programmable | For Measuring | Technology | Rotation Angle - Electrical, Mechanical | Linear Range | Output | Output Signal | Actuator Type | Linearity | Resistance | Resistance Tolerance | Voltage - Supply | Mounting Type | Termination Style | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

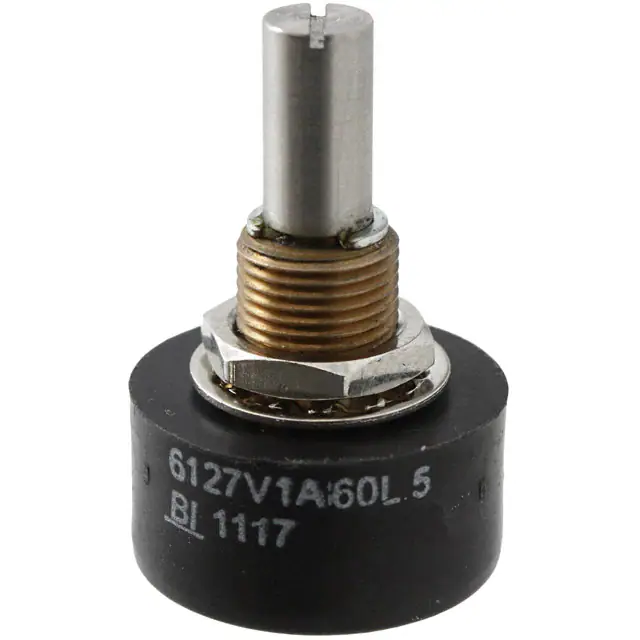

6127V1A60L.5SENSOR ROTARY 60DEG SLDR TURRET TT Electronics/BI |
4,573 |
|
Datasheet |
Module, Round Shaft | - | Tray | Active | - | Rotary Position | Hall Effect | 0° ~ 60°, Continuous | - | Analog Voltage | Clockwise Increase | Round Shaft | ±0.5% | - | - | 4.5V ~ 5.5V | Panel Mount | Solder Turret | -40°C ~ 125°C | - | - | - |
|
6153V1A90L.5SENSOR ROTARY 360DEG SLDR TURRET TT Electronics/BI |
3,214 |
|
Datasheet |
Module, Round Shaft | 6150 | Bulk | Active | - | Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | Analog Voltage | Clockwise Increase | Round Shaft | ±0.5% | - | - | 4.5V ~ 5.5V | Panel Mount | Solder Turret | -40°C ~ 125°C | - | - | - |
|
PHS07-V1B10KE1806SENSOR ROTARY 180DEG PC PIN TT Electronics/BI |
2,512 |
|
Datasheet |
3-SIP Module | PHS07 | Tray | Obsolete | - | Rotary Position | Resistive | 0° ~ 180°, Continuous | - | Resistive | - | Hole for Shaft | ±2% | - | ±20% | 5V ~ 50V | Through Hole | PC Pin | -10°C ~ 70°C | - | - | - |
|
|
PHS11-1DBR10KE120SENSOR ROTARY 120DEG SLDR TURRET TT Electronics/BI |
3,137 |
|
Datasheet |
4-SMD, Gull Wing | PHS11 | Tape & Reel (TR) | Active | - | Rotary Position | Resistive | 0° ~ 120°, Continuous | - | Resistive | - | Hole for Shaft | ±5% | - | ±20% | - | Surface Mount | Solder Turret | -40°C ~ 120°C | - | - | - |
|
|
PHS11-1DBR10KE145SENSOR ROTARY 145DEG SLDR TURRET TT Electronics/BI |
4,359 |
|
Datasheet |
4-SMD, Gull Wing | PHS11 | Tape & Reel (TR) | Active | - | Rotary Position | Resistive | 0° ~ 145°, Continuous | - | Resistive | - | Hole for Shaft | ±5% | - | ±20% | - | Surface Mount | Solder Turret | -40°C ~ 120°C | - | - | - |
|
|
PHS11-1DBR10KE180SENSOR ROTARY 180DEG SLDR TURRET TT Electronics/BI |
3,382 |
|
Datasheet |
4-SMD, Gull Wing | PHS11 | Tape & Reel (TR) | Active | - | Rotary Position | Resistive | 0° ~ 180°, Continuous | - | Resistive | - | Hole for Shaft | ±5% | - | ±20% | - | Surface Mount | Solder Turret | -40°C ~ 120°C | - | - | - |
|
|
PHS11-1DBR10KE250SENSOR ROTARY 250DEG SLDR TURRET TT Electronics/BI |
2,834 |
|
Datasheet |
4-SMD, Gull Wing | PHS11 | Tape & Reel (TR) | Active | - | Rotary Position | Resistive | 0° ~ 250°, Continuous | - | Resistive | - | Hole for Shaft | ±5% | - | ±20% | - | Surface Mount | Solder Turret | -40°C ~ 120°C | - | - | - |
|
|
PHS11-1DBR10KE300SENSOR ROTARY 300DEG SLDR TURRET TT Electronics/BI |
3,026 |
|
Datasheet |
4-SMD, Gull Wing | PHS11 | Tape & Reel (TR) | Active | - | Rotary Position | Resistive | 0° ~ 300°, Continuous | - | Resistive | - | Hole for Shaft | ±5% | - | ±20% | - | Surface Mount | Solder Turret | -40°C ~ 120°C | - | - | - |
|
|
PHS11-1DBR10KE320SENSOR ROTARY 320DEG SLDR TURRET TT Electronics/BI |
1,630 |
|
Datasheet |
4-SMD, Gull Wing | PHS11 | Tape & Reel (TR) | Active | - | Rotary Position | Resistive | 0° ~ 320°, Continuous | - | Resistive | - | Hole for Shaft | ±5% | - | ±20% | - | Surface Mount | Solder Turret | -40°C ~ 120°C | - | - | - |
|
|
PHS11-1DBR10KE333SENSOR ROTARY 333DEG SLDR TURRET TT Electronics/BI |
2,070 |
|
Datasheet |
4-SMD, Gull Wing | PHS11 | Tape & Reel (TR) | Active | - | Rotary Position | Resistive | 0° ~ 333°, Continuous | - | Resistive | - | Hole for Shaft | ±5% | - | ±20% | - | Surface Mount | Solder Turret | -40°C ~ 120°C | - | - | - |
