DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RDS3-4S-1012-3-RA-508-DSWITCH ROTARY DIP SPST 0.15A 42V Same Sky (Formerly CUI Devices) |
2,578 |
|
Datasheet |
RDS3-1012-RA | Tube | Active | SPST | - | 150mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS6-4S-1011-3-RA-254-DSWITCH ROTARY DIP SPST 0.15A 42V Same Sky (Formerly CUI Devices) |
2,056 |
|
Datasheet |
RDS6-1011-RA | Tube | Active | SPST | - | 150mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS6-4S-1011-3-RA-508-DSWITCH ROTARY DIP SPST 0.15A 42V Same Sky (Formerly CUI Devices) |
1,545 |
|
Datasheet |
RDS6-1011-RA | Tube | Active | SPST | - | 150mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS3-4S-1012-3-RA-254-DSWITCH ROTARY DIP SPST 0.15A 42V Same Sky (Formerly CUI Devices) |
4,558 |
|
Datasheet |
RDS3-1012-RA | Tube | Active | SPST | - | 150mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

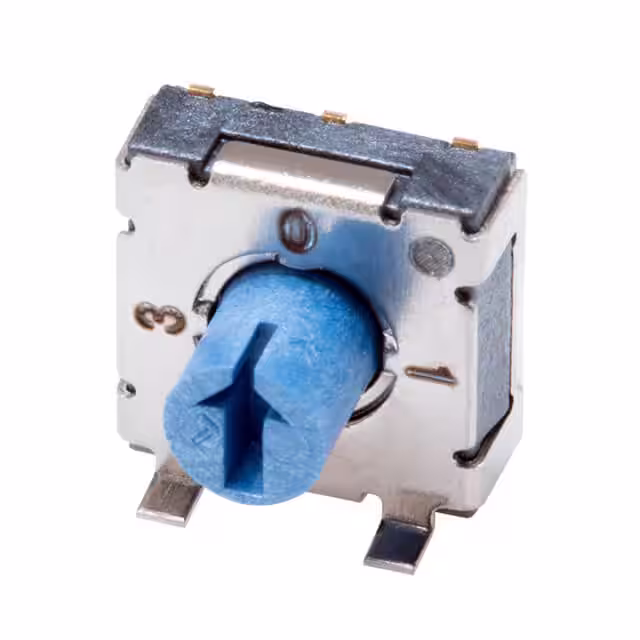

RDS-4S-7229-R-ASMT-TRSWITCH ROTARY DIP BCD 0.1A 50V Same Sky (Formerly CUI Devices) |
1,630 |
|
Datasheet |
RDS-7229-ASMT | Tape & Reel (TR) | Active | BCD | 4 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.291" (7.40mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
RDS-10S-7229-S-ASMT-TRSWITCH ROTARY DIP BCD 0.1A 50V Same Sky (Formerly CUI Devices) |
1,485 |
|
Datasheet |
RDS-7229-ASMT | Tape & Reel (TR) | Active | BCD | 10 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.291" (7.40mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|

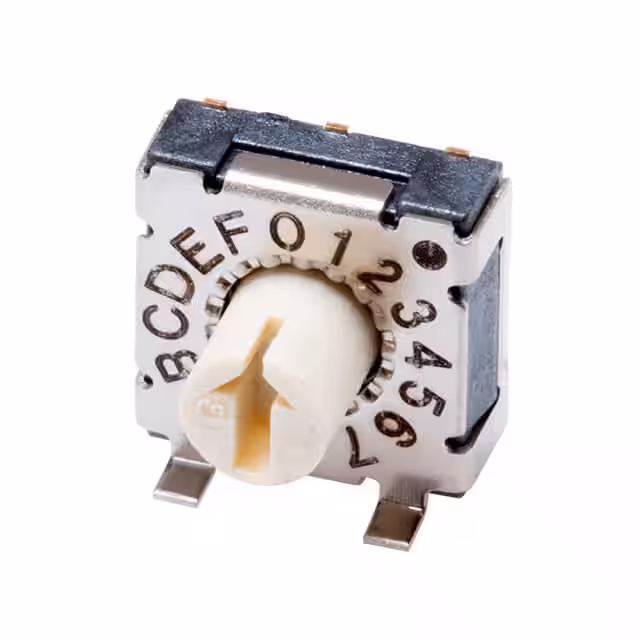

RDS-16S-7229-R-ASMT-TRSWITCH ROTARY DIP HEX 0.1A 50V Same Sky (Formerly CUI Devices) |
1,538 |
|
Datasheet |
RDS-7229-ASMT | Tape & Reel (TR) | Active | Hexadecimal | 16 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.291" (7.40mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
RDS-16S-7229-S-ASMT-TRSWITCH ROTARY DIP HEX 0.1A 50V Same Sky (Formerly CUI Devices) |
2,232 |
|
Datasheet |
RDS-7229-ASMT | Tape & Reel (TR) | Active | Hexadecimal | 16 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.291" (7.40mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|

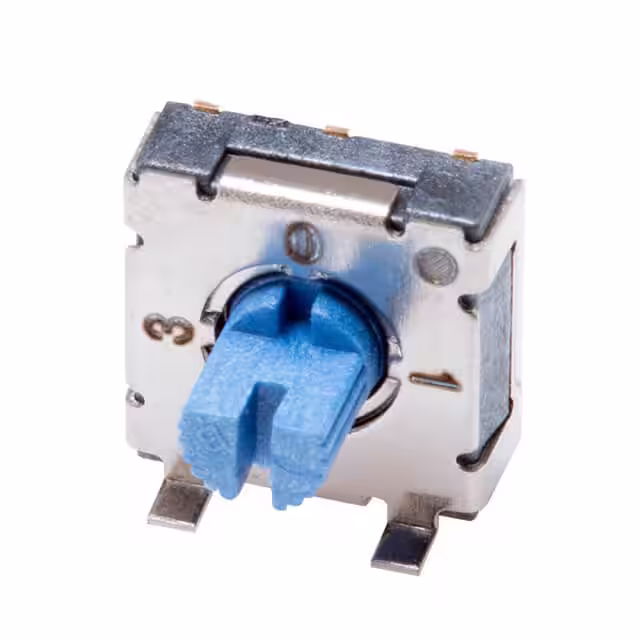

RDS-4S-7229-S-ASMT-TRSWITCH ROTARY DIP BCD 0.1A 50V Same Sky (Formerly CUI Devices) |
1,550 |
|
Datasheet |
RDS-7229-ASMT | Tape & Reel (TR) | Active | BCD | 4 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.291" (7.40mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
RDS-10S-7229-R-ASMT-TRSWITCH ROTARY DIP BCD 0.1A 50V Same Sky (Formerly CUI Devices) |
4,055 |
|
Datasheet |
RDS-7229-ASMT | Tape & Reel (TR) | Active | BCD | 10 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.291" (7.40mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
