DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RDS3-4S-1012-1-RA-254-DSWITCH ROTARY DIP SPST 0.15A 42V Same Sky (Formerly CUI Devices) |
3,304 |
|
Datasheet |
RDS3-1012-RA | Tube | Active | SPST | - | 150mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS6-4S-1011-1-RA-508-DSWITCH ROTARY DIP SPST 0.15A 42V Same Sky (Formerly CUI Devices) |
3,855 |
|
Datasheet |
RDS6-1011-RA | Tube | Active | SPST | - | 150mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS3-4S-1012-1-RA-508-DSWITCH ROTARY DIP SPST 0.15A 42V Same Sky (Formerly CUI Devices) |
4,362 |
|
Datasheet |
RDS3-1012-RA | Tube | Active | SPST | - | 150mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS3-4S-1065-2-SMT-TRSWITCH ROTARY DIP SPST 0.15A 42V Same Sky (Formerly CUI Devices) |
1,249 |
|
Datasheet |
RDS3-1065-SMT | Tape & Reel (TR) | Active | SPST | - | 150mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.638" (16.20mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS3-4S-1012-2-RA-254-DSWITCH ROTARY DIP SPST 0.15A 42V Same Sky (Formerly CUI Devices) |
2,988 |
|
Datasheet |
RDS3-1012-RA | Tube | Active | SPST | - | 150mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS6-4S-1011-2-RA-508-DSWITCH ROTARY DIP SPST 0.15A 42V Same Sky (Formerly CUI Devices) |
1,992 |
|
Datasheet |
RDS6-1011-RA | Tape & Reel (TR) | Active | SPST | - | 150mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS3-4S-1012-2-RA-508-DSWITCH ROTARY DIP SPST 0.15A 42V Same Sky (Formerly CUI Devices) |
3,995 |
|
Datasheet |
RDS3-1012-RA | Tape & Reel (TR) | Active | SPST | - | 150mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS6-4S-1011-2-RA-254-DSWITCH ROTARY DIP SPST 0.15A 42V Same Sky (Formerly CUI Devices) |
1,002 |
|
Datasheet |
RDS6-1011-RA | Tube | Active | SPST | - | 150mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
RDS-10S-7229-R-SMT-TRSWITCH ROTARY DIP BCD 0.1A 50V Same Sky (Formerly CUI Devices) |
3,981 |
|
Datasheet |
RDS-7229-SMT | Tape & Reel (TR) | Active | BCD | 10 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.236" (6.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|

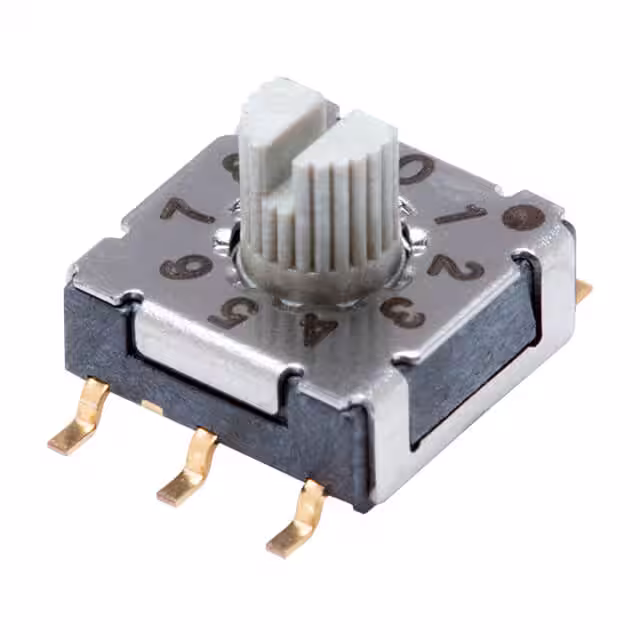

RDS-10S-7229-S-SMT-TRSWITCH ROTARY DIP BCD 0.1A 50V Same Sky (Formerly CUI Devices) |
2,492 |
|
Datasheet |
RDS-7229-SMT | Tape & Reel (TR) | Active | BCD | 10 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.236" (6.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
