DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

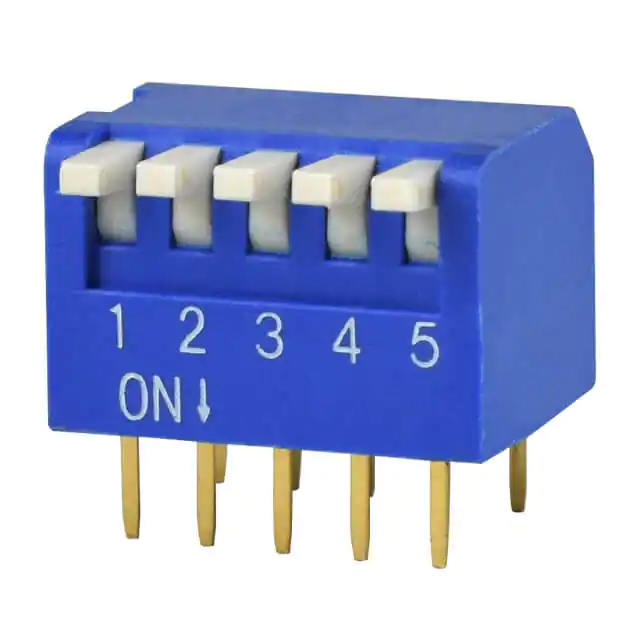

DS02C-254-1L-05BESWITCH PIANO DIP SPST 0.025A 24V Same Sky (Formerly CUI Devices) |
1,031 |
|
Datasheet |
DS02-254 | Tube | Active | SPST | 5 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
DS03-254-03BESWITCH SLIDE DIP SPST 0.025A 24V Same Sky (Formerly CUI Devices) |
560 |
|
Datasheet |
DS03-254 | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
DS01C-254-S-10BESWITCH SLIDE DIP SPST 0.025A 24V Same Sky (Formerly CUI Devices) |
989 |
|
Datasheet |
DS01-254 | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.264" (6.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

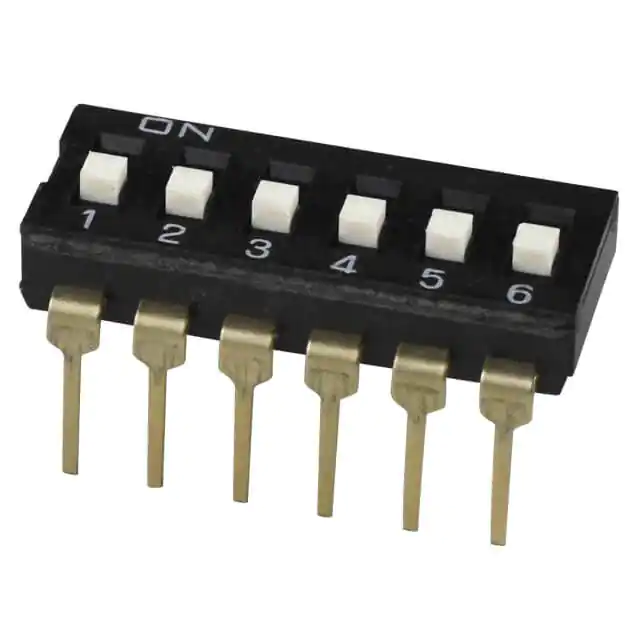

DS04-254-1L-06BKSWITCH SLIDE DIP SPST 0.025A 24V Same Sky (Formerly CUI Devices) |
1,131 |
|
Datasheet |
DS04-254 | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.166" (4.21mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

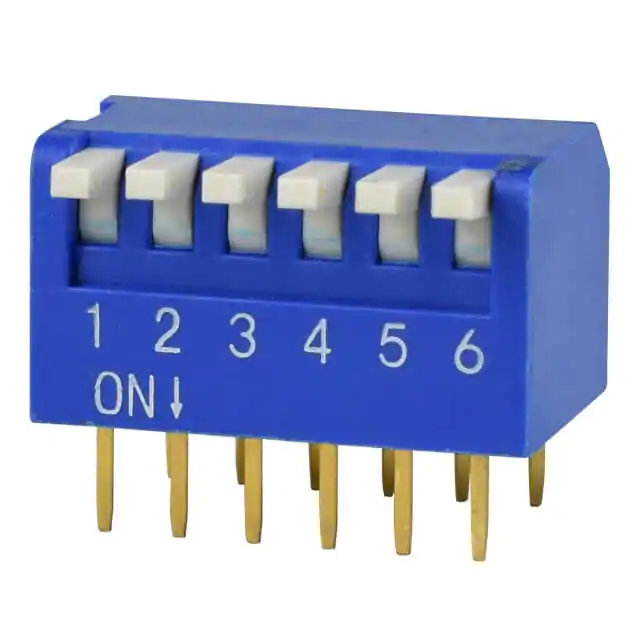

DS02C-254-1L-06BESWITCH PIANO DIP SPST 0.025A 24V Same Sky (Formerly CUI Devices) |
762 |
|
Datasheet |
DS02-254 | Tube | Active | SPST | 6 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

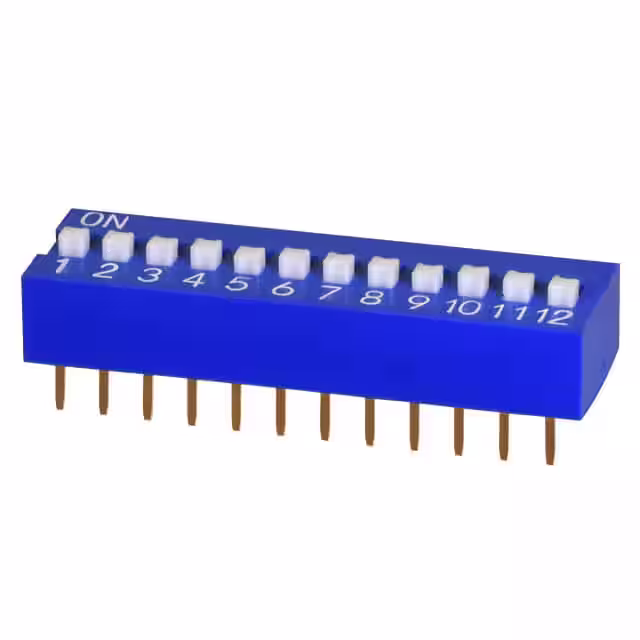

DS01C-254-L-12BESWITCH SLIDE DIP SPST 0.025A 24V Same Sky (Formerly CUI Devices) |
542 |
|
Datasheet |
DS01-254 | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.264" (6.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
DS04-254-2-07BK-SMTSWITCH SLIDE DIP SPST 0.025A 24V Same Sky (Formerly CUI Devices) |
822 |
|
Datasheet |
DS04-254-SMT | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.167" (4.25mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

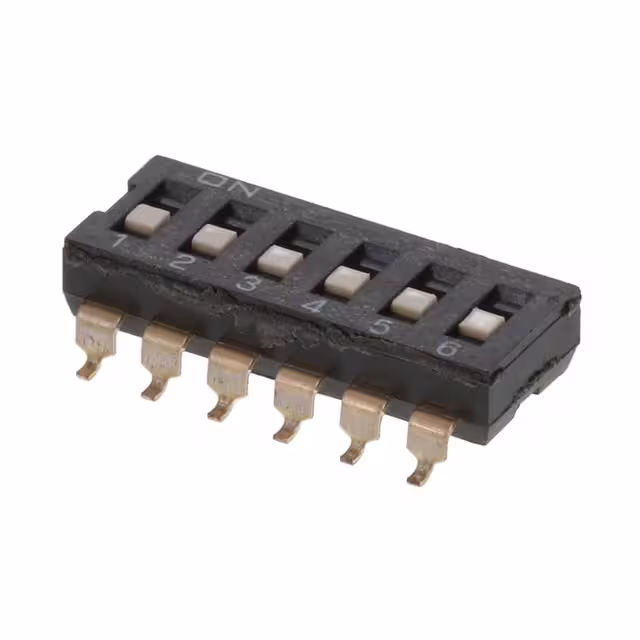

DS04-254-2-06BK-SMT-TRSWITCH SLIDE DIP SPST 0.025A 24V Same Sky (Formerly CUI Devices) |
597 |
|
Datasheet |
DS04-254-SMT | Tape & Reel (TR) | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.167" (4.25mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
DS04-254-2L-08BKSWITCH SLIDE DIP SPST 0.025A 24V Same Sky (Formerly CUI Devices) |
861 |
|
Datasheet |
DS04-254 | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.144" (3.66mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

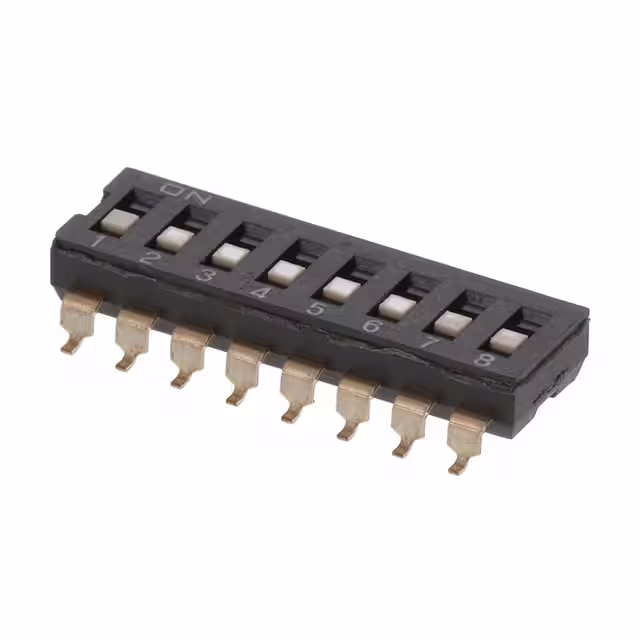

DS04-254-2-08BK-SMTSWITCH SLIDE DIP SPST 0.025A 24V Same Sky (Formerly CUI Devices) |
538 |
|
Datasheet |
DS04-254-SMT | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.167" (4.25mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
