Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

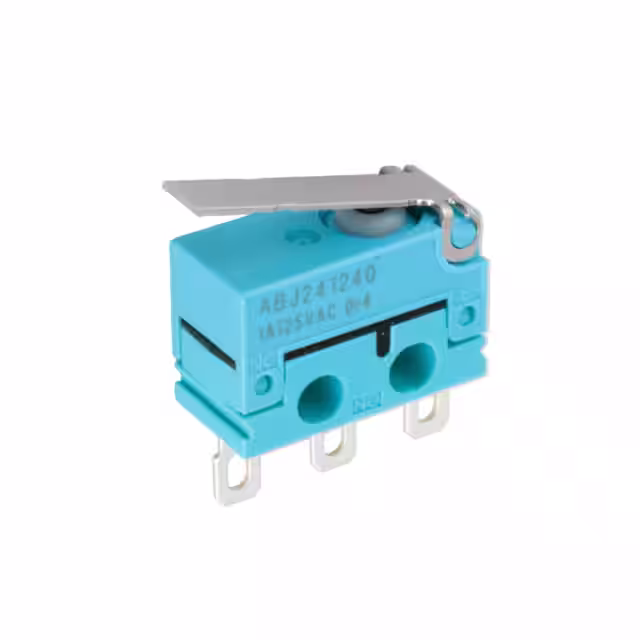

ABJ241240SWITCH SNAP ACTION SPDT 1A 125V Panasonic Electric Works |
2,938 |
|
Datasheet |
ABJ | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | IP50 - Dust Protected | - | 40gf | 3.059gf | 0.328" (8.3mm) | 0.120" (3.0mm) | 0.020" (0.5mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
|
AV3252619SWITCH SNAP ACT SPDT 0.1A 125V Panasonic Electric Works |
2,884 |
|
Datasheet |
AV3 | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Solder Lug | - | - | 20gf | 10 in-oz | 0.571" (14.5mm) | 0.100" (2.5mm) | 0.020" (0.5mm) | 0.030" (0.76mm) | -25°C ~ 85°C |
|
|
AV3852619SWITCH SNAP ACT SPDT 0.1A 125V Panasonic Electric Works |
4,903 |
|
Datasheet |
AV3 | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 20gf | 10 in-oz | 0.571" (14.5mm) | 0.100" (2.5mm) | 0.020" (0.5mm) | 0.030" (0.76mm) | -25°C ~ 85°C |
|
AM50036C43-ASWITCH SNP ACT SPST-NO 0.1A 125V Panasonic Electric Works |
4,539 |
|
Datasheet |
AM5 | Bulk | Obsolete | SPST-NO | Off-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 60gf | 10gf | 0.815" (20.7mm) | 0.125" (3.2mm) | 0.040" (1.0mm) | 0.055" (1.4mm) | -25°C ~ 105°C |
|
|
AVM3255613-ASWITCH SNAP ACTION Panasonic Electric Works |
2,559 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ASQ10817SWITCH SNAP ACTION SPDT 0.1A 30V Panasonic Electric Works |
1,643 |
|
Datasheet |
ASQ1 | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | Actuator Mounted Left Side | 173gf | - | 0.366" (9.3mm) | - | - | 0.102" (2.6mm) | -40°C ~ 85°C |
|
|
ASQ10717SWITCH SNAP ACTION SPDT 0.1A 30V Panasonic Electric Works |
1,079 |
|
- |
ASQ1 | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Straight | Through Hole | PC Pin | - | - | 173gf | - | 0.366" (9.3mm) | - | - | 0.105" (2.67mm) | -40°C ~ 85°C |
|
|
AV3604619-ASWITCH SNAP ACTION Panasonic Electric Works |
3,835 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ABS1410409SWITCH SNAP ACTION SPDT 2A 125V Panasonic Electric Works |
1,125 |
|
Datasheet |
ABS | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP50 - Dust Protected | - | 100gf | 15gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.015" (0.4mm) | -40°C ~ 85°C |
|
AVM31553-ASWITCH SNAP ACTION SPDT 5A 125V Panasonic Electric Works |
3,999 |
|
Datasheet |
AVM3 | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Solder Lug | - | Insulation Barrier | 60gf | 4.079gf | 0.571" (14.5mm) | 0.100" (2.5mm) | 0.020" (0.5mm) | 0.030" (0.76mm) | -25°C ~ 85°C |
