Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ABS1110409SWITCH SNAP ACTION SPDT 2A 125V Panasonic Electric Works |
1,778 |
|
Datasheet |
ABS | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP50 - Dust Protected | - | 100gf | 15gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.015" (0.4mm) | -40°C ~ 85°C |
|

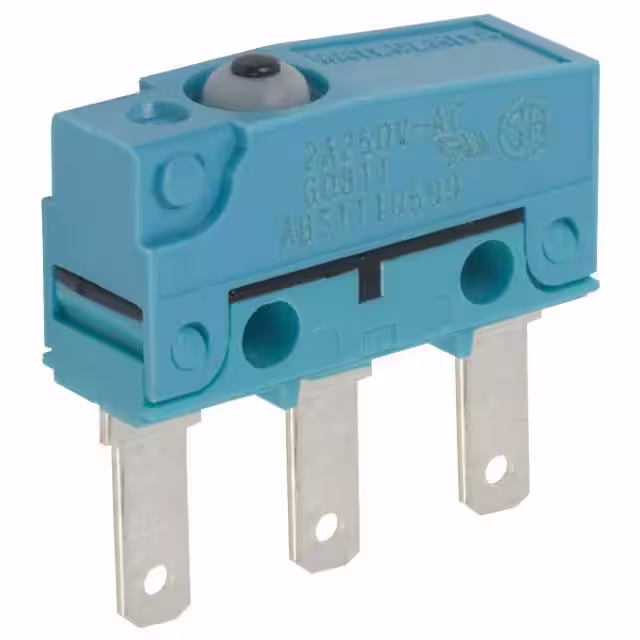

ABS1110509SWITCH SNAP ACTION SPDT 2A 125V Panasonic Electric Works |
4,227 |
|
Datasheet |
ABS | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP50 - Dust Protected | - | 150gf | 20gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.015" (0.4mm) | -40°C ~ 85°C |
|

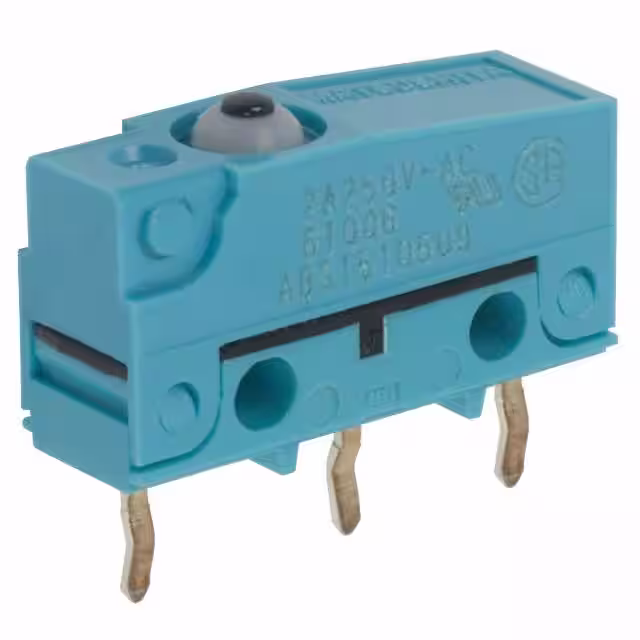

ABS1510509SWITCH SNAP ACTION SPDT 2A 125V Panasonic Electric Works |
2,802 |
|
Datasheet |
ABS | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | IP50 - Dust Protected | - | 150gf | 20gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.015" (0.4mm) | -40°C ~ 85°C |
|
AV3514613-ASWITCH SNAP ACT SPDT 0.1A 125V Panasonic Electric Works |
3,038 |
|
Datasheet |
AV3 | Bulk | Obsolete | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Through Hole | PC Pin | - | - | 40gf | 3.500gf | 0.345" (8.8mm) | 0.100" (2.5mm) | 0.020" (0.5mm) | 0.030" (0.76mm) | -25°C ~ 85°C |
|
|
ABJ141460SWITCH SNAP ACTION SPDT 2A 125V Panasonic Electric Works |
2,408 |
|
Datasheet |
ABJ | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP50 - Dust Protected | - | 65gf | 5.099gf | 0.386" (9.8mm) | 0.120" (3.0mm) | 0.020" (0.5mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
|
|
ABJ151440SWITCH SNAP ACTION SPDT 1A 125V Panasonic Electric Works |
3,888 |
|
Datasheet |
ABJ | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Through Hole | PC Pin | IP50 - Dust Protected | - | 40gf | 3.059gf | 0.386" (9.8mm) | 0.120" (3.0mm) | 0.020" (0.5mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
|
|
AH1480619-ASWITCH SNAP ACT SPDT 0.1A 125V Panasonic Electric Works |
4,948 |
|
Datasheet |
AH1 | Tube | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 74gf | 10gf | 0.217" (5.5mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.010" (0.25mm) | -25°C ~ 85°C |
|
ABS1416509SWITCH SNAP ACTION SPDT 2A 125V Panasonic Electric Works |
2,905 |
|
Datasheet |
ABS | Bulk | Obsolete | SPDT | On-Mom | 2A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Solder Lug | IP50 - Dust Protected | - | 60gf | 4.079gf | 0.571" (14.5mm) | 0.100" (2.5mm) | 0.020" (0.5mm) | 0.032" (0.81mm) | -40°C ~ 85°C |
|
|
ABS1116503SWITCH SNAP ACTION SPDT 2A 125V Panasonic Electric Works |
4,756 |
|
Datasheet |
ABS | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP50 - Dust Protected | - | 60gf | 3.977gf | 0.571" (14.50mm) | 0.100" (2.5mm) | 0.020" (0.5mm) | 0.031" (0.8mm) | -40°C ~ 85°C |
|
|
ABS1510413SWITCH SNAP ACT SPDT 0.1A 125V Panasonic Electric Works |
1,586 |
|
Datasheet |
ABS | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | IP50 - Dust Protected | - | 100gf | 15gf | 0.331" (8.40mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.015" (0.4mm) | -40°C ~ 85°C |
