Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
83111525SWITCH SNAP ACTION CLIPS |
3,080 |
|
Datasheet |
83111 | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EX-10907LIMIT SWITCH |
4,373 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D4N-2A72SWITCH SNAP ACTION DPST 3A 240V |
3,624 |
|
Datasheet |
D4N | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Lever, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 510gf | 82gf | 1.063" (27.0mm) | 0.157" (4.0mm) | - | 0.197" (5.0mm) | -30°C ~ 70°C |
|
|
D4N-2B62SWITCH SNAP ACT DPST-NC 3A 240V |
4,005 |
|
Datasheet |
D4N | Bulk | Active | DPST-NC | On-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Lever, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 510gf | 82gf | 1.457" (37.0mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.197" (5.0mm) | -30°C ~ 70°C |
|
|
D4N-2B72SWITCH SNAP ACT DPST-NC 3A 240V |
4,153 |
|
Datasheet |
D4N | Bulk | Active | DPST-NC | On-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Lever, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 510gf | 82gf | 1.063" (27.0mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.197" (5.0mm) | -30°C ~ 70°C |
|
8658SWITCH AIR PRESSURE |
3,748 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
23SX39-T2SWITCH SNAP ACTION SPDT 1A 125V |
1,283 |
|
Datasheet |
SX | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 141gf | 28gf | 0.320" (8.13mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.004" (0.1mm) | -53°C ~ 85°C |
|
|
BZ-RMX4-A29SWITCH SNAP ACTION SPDT 15A 125V |
2,172 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-On | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | - | Reset Plunger on Bottom | - | - | 0.750" (19.1mm) | - | - | 0.062" (1.6mm) | -55°C ~ 85°C |
|

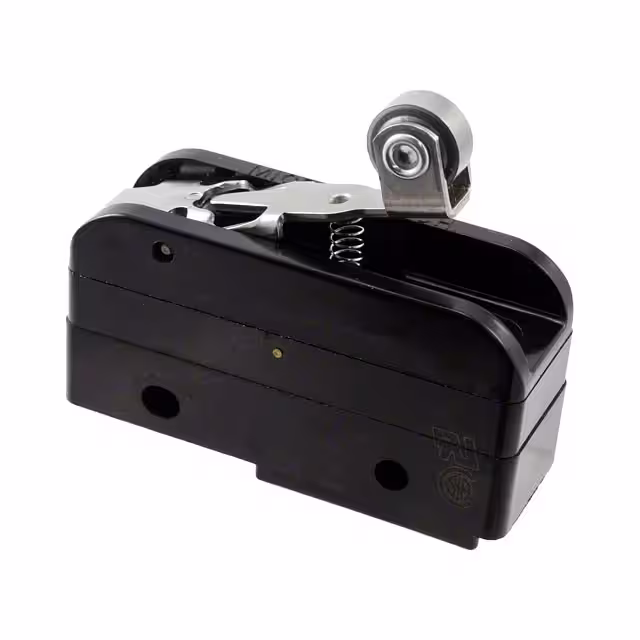

BZ-2GW822SWITCH SNAP ACTION SPDT 10A 125V |
2,012 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 10A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Solder Lug | - | - | 184gf | 43gf | 1.188" (30.2mm) | - | 0.145" (3.7mm) | 0.094" (2.4mm) | -55°C ~ 85°C |
|
|
NGCPB02AX01A1BSWITCH COMPACT LIMIT |
2,543 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
Z-5GW2255-B7-KSWITCH BASIC |
1,680 |
|
Datasheet |
Z | Bulk | Last Time Buy | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BA-2SV22TSWITCH BASIC LARGE |
3,770 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
NGCPB10AX01A6BSWITCH LIMIT |
4,810 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

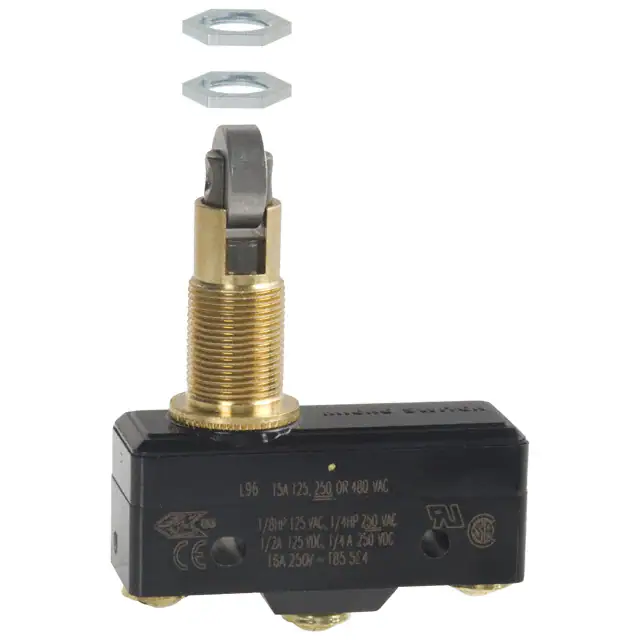

BZ-2RQ181-A2SWITCH SNAP ACTION SPDT 15A 125V |
3,742 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Roller Plunger | Panel Mount | Screw Terminal | - | - | 255 ~ 368gf | 113gf | 1.313" (33.4mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.141" (3.6mm) | -55°C ~ 85°C |
|
|
6AS270SWITCH LARGE BASIC |
3,282 |
|
- |
6AS | Bulk | Obsolete | - | - | - | - | - | - | Chassis Mount | Screw Terminal | - | - | - | - | - | - | - | - | -55°C ~ 85°C |
|
|
NGCPB00NX01A2ASWITCH LIMIT |
4,181 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

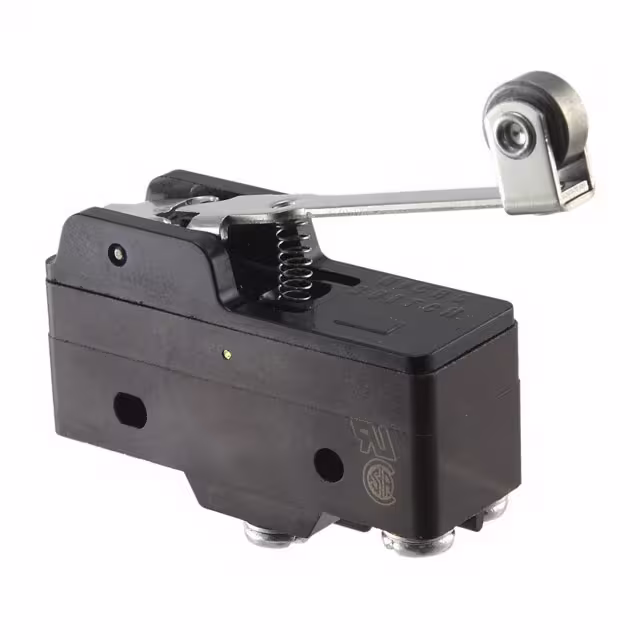

BZ-2AW82TSWITCH SNAP ACTION SPDT 15A 125V |
2,062 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 15A (AC), 1A (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | - | - | 127gf | 21gf | 1.188" (30.2mm) | - | 0.015" (0.38mm) | 0.156" (3.96mm) | -55°C ~ 85°C |
|
|
12SM83SWITCH SNAP ACTION SPDT 1A 125V |
4,768 |
|
Datasheet |
SM | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 141gf | 28gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.004" (0.1mm) | 0.003" (0.076mm) | -55°C ~ 125°C |
|

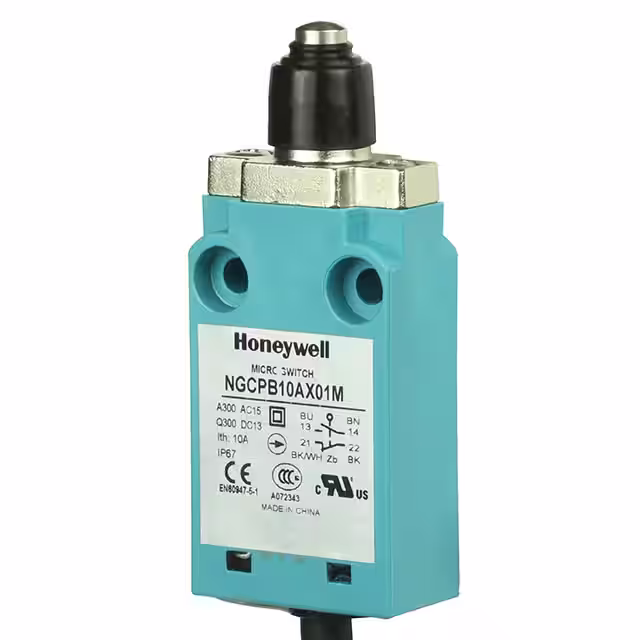

NGCPB10AX01MSWITCH SNAP ACTION DPST 6A 120V |
1,633 |
|
Datasheet |
NGC | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Actuator Seal Boot | 1122gf | 306gf | 0.083" (2.1mm) | 0.083" (2.1mm) | 0.047" (1.2mm) | 0.193" (4.9mm) | -25°C ~ 75°C |
|
|
BZ-2RQ18-D5SWITCH SNAP ACTION SPDT 15A 125V |
4,654 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Roller Plunger | Panel Mount | Quick Connect - 0.250" (6.3mm) | - | - | 255 ~ 368gf | 113gf | 1.313" (33.4mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.141" (3.6mm) | -55°C ~ 85°C |
