Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
160E56PWR XFMR LAMINATED 1.2VA TH Hammond Manufacturing |
3,030 |
|
Datasheet |
160 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 28V, Series 56V | Parallel 40mA, Series 20mA | Dual | Single, Multiple Taps | No | 1.2VA | Through Hole | PC Pin | 35.05mm L x 30.23mm W | 30.99mm | 2000Vrms | 0.19 lb (86.18 g) |
|
160J10PWR XFMR LAMINATED 10VA TH Hammond Manufacturing |
3,439 |
|
Datasheet |
160 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 2A, Series 1A | Dual | Single, Multiple Taps | No | 10VA | Through Hole | PC Pin | 49.26mm L x 36.58mm W | 42.93mm | 2000Vrms | 0.59 lb (267.62 g) |
|
6K215HF-BULKTools/Equipment/Hardware Hammond Manufacturing |
2,978 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
183F16PWR XFMR LAMINATED 5VA TH Hammond Manufacturing |
4,731 |
|
Datasheet |
183 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 620mA, Series 310mA | Dual | Dual | No | 5VA | Through Hole | PC Pin | 41.28mm L x 36.50mm W | 34.93mm | 4000Vrms | 0.37 lb (167.83 g) |
|
|
6K270HFPWR XFMR Hammond Manufacturing |
3,707 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
6K36HF-BULKPWR XFMR Hammond Manufacturing |
4,731 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
229E20PWR XFMR SEMI-TORO 2VA TH Hammond Manufacturing |
1,721 |
|
Datasheet |
229 | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 10V, Series 20V | Parallel 250mA, Series 125mA | Dual | Dual | No | 2VA | Through Hole | PC Pin | 39.62mm L x 47.75mm W | 16.51mm | 1750Vrms | 0.2 lb (90.72 g) |
|
|
6K215HFTools/Equipment/Hardware Hammond Manufacturing |
1,148 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
162H12PWR XFMR LAMINATED 20VA TH Hammond Manufacturing |
2,805 |
|
Datasheet |
162 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 3.2A, Series 1.6A | Dual | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.52mm | 2500Vrms | 0.8 lb (362.87 g) |
|

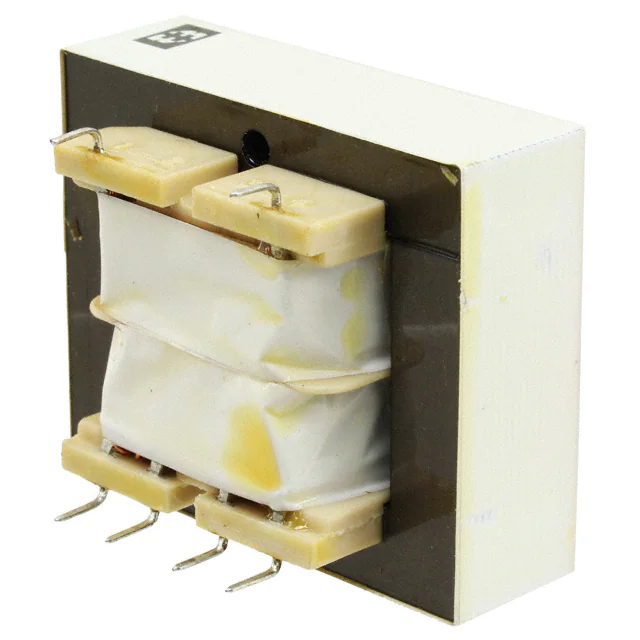

164H16PWR XFMR LAMINATED 20VA TH Hammond Manufacturing |
3,048 |
|
Datasheet |
164 | Bulk | Active | Laminated Core | 115V | Parallel 8V, Series 16V | Parallel 2.5A, Series 1.25A | Single | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.52mm | 2500Vrms | 0.8 lb (362.87 g) |
