Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
162H120PWR XFMR LAMINATED 20VA TH Hammond Manufacturing |
4,528 |
|
Datasheet |
162 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 60V, Series 120V | Parallel 320mA, Series 160mA | Dual | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.52mm | 2500Vrms | 0.8 lb (362.87 g) |
|
229B24PWR XFMR SEMI-TORO 12VA TH Hammond Manufacturing |
3,016 |
|
Datasheet |
229 | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 1A, Series 500mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 50.80mm L x 63.50mm W | 27.18mm | 1750Vrms | 0.7 lb (317.51 g) |
|
|
229B20PWR XFMR SEMI-TORO 12VA TH Hammond Manufacturing |
2,636 |
|
Datasheet |
229 | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 10V, Series 20V | Parallel 1.2A, Series 600mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 50.80mm L x 63.50mm W | 27.18mm | 1750Vrms | 0.62 lb (281.23 g) |
|
185C24PWR XFMR LAMINATED 25VA CHAS MT Hammond Manufacturing |
3,673 |
|
Datasheet |
185 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 2A, Series 1A | Dual | Dual | No | 25VA | Chassis Mount | Solder, Quick Connect | 71.37mm L x 56.39mm W | 58.67mm | 4000Vrms | 1.3 lbs (589.7 g) |
|
166L12PWR XFMR LAMINATED 31.5VA CHAS Hammond Manufacturing |
4,541 |
|
Datasheet |
166 | Bulk | Active | Laminated Core | 115V | 12.6V | 2.5A | Single | Single | Yes | 31.5VA | Chassis Mount | Wire Leads | 82.55mm L x 50.80mm W | 50.80mm | 2000Vrms | 1.4 lbs (635 g) |
|

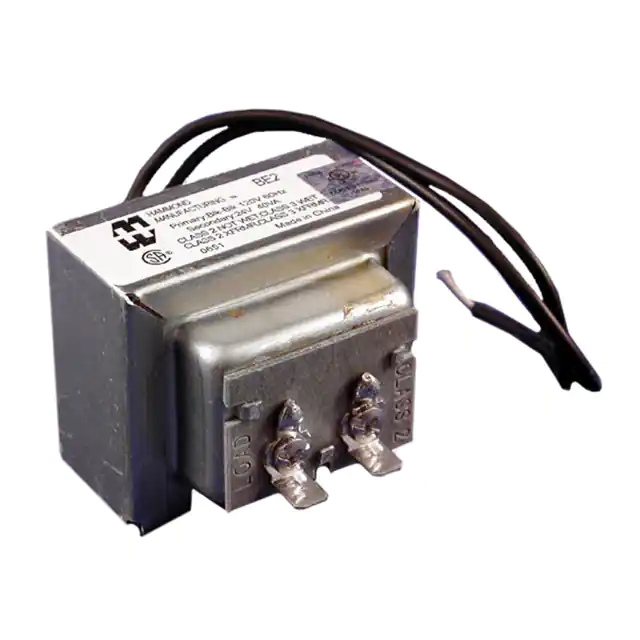

BE2FPWR XFMR LAMINATED 40VA CHAS MT Hammond Manufacturing |
1,462 |
|
Datasheet |
BE | Bulk | Active | Laminated Core | 120V | 16.5V | 2.42A | Single | Single | No | 40VA | Chassis Mount | Wire Leads, Quick Connect | 59.18mm L x 66.04mm W | 50.29mm | - | 1.5 lbs (680.4 g) |
|

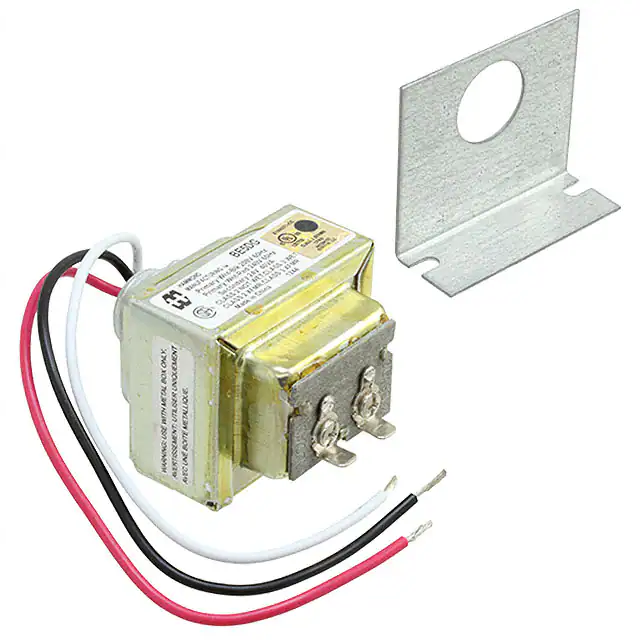

BE5DGPWR XFMR LAMINATED 40VA CHAS MT Hammond Manufacturing |
1,131 |
|
Datasheet |
BE | Bulk | Active | Laminated Core | 208V, 240V | 24V | 1.67A | Single | Single | No | 40VA | Chassis Mount | Wire Leads, Quick Connect | 59.18mm L x 66.04mm W | 50.29mm | - | 1.5 lbs (680.4 g) |
|
162J120PWR XFMR LAMINATED 36VA TH Hammond Manufacturing |
4,712 |
|
Datasheet |
162 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 60V, Series 120V | Parallel 600mA, Series 300mA | Dual | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.70mm | 2500Vrms | 1.1 lbs (499 g) |
|
|
166L16PWR XFMR LAMINATED 35.2VA CHAS Hammond Manufacturing |
4,017 |
|
Datasheet |
166 | Bulk | Active | Laminated Core | 115V | 16V | 2.2A | Single | Single | Yes | 35.2VA | Chassis Mount | Wire Leads | 82.55mm L x 50.80mm W | 50.80mm | 2000Vrms | 1.4 lbs (635 g) |
|
|
166G9PWR XFMR LAMINATED 4.5VA CHAS MT Hammond Manufacturing |
4,811 |
|
Datasheet |
166 | Bulk | Active | Laminated Core | 115V | 9V | 500mA | Single | Single | Yes | 4.5VA | Chassis Mount | Wire Leads | 60.45mm L x 35.05mm W | 35.05mm | 2000Vrms | 0.4 lb (181.44 g) |
