Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
166L8PWR XFMR LAMINATED 17VA CHAS MT Hammond Manufacturing |
1,013 |
|
Datasheet |
166 | Bulk | Active | Laminated Core | 115V | 8.5V | 2A | Single | Single | Yes | 17VA | Chassis Mount | Wire Leads | 71.37mm L x 38.10mm W | 42.93mm | 2000Vrms | 0.9 lb (408.23 g) |
|
186F24PWR XFMR LAMINATED 96VA CHAS MT Hammond Manufacturing |
4,759 |
|
Datasheet |
186 | Box | Active | Laminated Core | 115V, 230V | 24V | 4A | Dual | Single | Yes | 96VA | Chassis Mount | Solder, Quick Connect | 102.36mm L x 66.68mm W | 65.02mm | 2000Vrms | 2.6 lbs (1.2 kg) |
|
|
166M18PWR XFMR LAMINATED 54VA CHAS MT Hammond Manufacturing |
1,853 |
|
Datasheet |
166 | Bulk | Active | Laminated Core | 115V | 18V | 3A | Single | Single | Yes | 54VA | Chassis Mount | Wire Leads | 93.73mm L x 54.10mm W | 58.67mm | 2000Vrms | 2 lbs (907.2 g) |
|
|
166M25PWR XFMR LAMINATED 75VA CHAS MT Hammond Manufacturing |
1,738 |
|
Datasheet |
166 | Bulk | Active | Laminated Core | 115V | 25V | 3A | Single | Single | Yes | 75VA | Chassis Mount | Wire Leads | 102.36mm L x 57.15mm W | 66.80mm | 2000Vrms | 2.5 lbs (1.1 kg) |
|
|
166G100PWR XFMR LAMINATED 50VA CHAS MT Hammond Manufacturing |
1,578 |
|
Datasheet |
166 | Bulk | Active | Laminated Core | 115V | 100V | 500mA | Single | Single | Yes | 50VA | Chassis Mount | Wire Leads | 93.73mm L x 54.10mm W | 58.67mm | 2000Vrms | 2 lbs (907.2 g) |
|
|
166N24PWR XFMR LAMINATED 96VA CHAS MT Hammond Manufacturing |
2,154 |
|
Datasheet |
166 | Bulk | Active | Laminated Core | 115V | 24V | 4A | Single | Single | Yes | 96VA | Chassis Mount | Wire Leads | 114.30mm L x 63.50mm W | 76.20mm | 2000Vrms | 3.5 lbs (1.6 kg) |
|

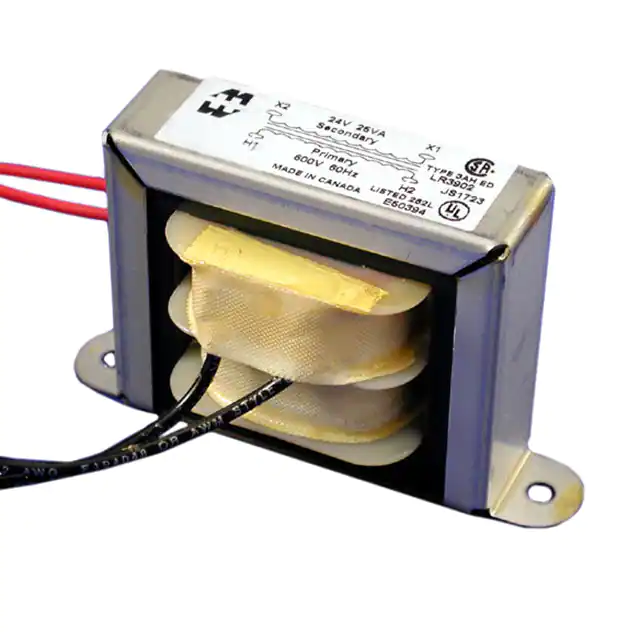

PHC25AGAPWR XFMR LAMINATED 25VA CHAS MT Hammond Manufacturing |
3,608 |
|
Datasheet |
PHC | Box | Active | Laminated Core | 600V | 24V | 1.04A | Single | Single | No | 25VA | Chassis Mount | Wire Leads | 58.67mm L x 93.73mm W | 58.67mm | - | 1.4 lbs (635 g) |
|
1182E110PWR XFMR TOROIDAL 30VA CHAS MT Hammond Manufacturing |
2,905 |
|
Datasheet |
1182 | Box | Active | Toroidal | 117V, 234V | Parallel 110V, Series 220V | Parallel 272mA, Series 136mA | Dual | Dual | No | 30VA | Chassis Mount | Wire Leads | 76.20mm Dia | - | 4000Vrms | 1.1 lbs (499 g) |
|
|
1182D240PWR XFMR TOROIDAL 30VA CHAS MT Hammond Manufacturing |
2,256 |
|
Datasheet |
1182 | Box | Active | Toroidal | 117V, 234V | 240V | 125mA | Dual | Single | No | 30VA | Chassis Mount | Wire Leads | 76.20mm Dia | 31.75mm | 4000Vrms | 1.1 lbs (499 g) |
|
269EXPWR XFMR LAMINATED 43VA CHAS MT Hammond Manufacturing |
3,451 |
|
Datasheet |
269 | Bulk | Active | Laminated Core | 115V | 380V, 6.3V | 71mA, 2.5A | Single | Dual | Yes | 43VA | Chassis Mount | Wire Leads | 55.63mm L x 66.80mm W | 66.80mm | 2000Vrms | 1.8 lbs (816.5 g) |
