Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
272BXPWR XFMR LAMINATED 95VA CHAS MT Hammond Manufacturing |
1,203 |
|
Datasheet |
272 | Bulk | Active | Laminated Core | 115V | 600V, 6.3V, 5V | 115mA, 3A, 2A | Single | Triple | Yes | 95VA | Chassis Mount | Wire Leads | 63.50mm L x 82.55mm W | 77.72mm | 2000Vrms | 3.5 lbs (1.6 kg) |
|
363AXPWR XFMR LAMINATED 32VA CHAS MT Hammond Manufacturing |
3,503 |
|
Datasheet |
300 | Bulk | Active | Laminated Core | 100V, 110V, 120V, 200V, 220V, 240V | 200V, 5V | 115mA, 2A | Dual, Multiple Taps | Dual | Yes | 32VA | Chassis Mount | Wire Leads | 69.85mm L x 63.50mm W | 77.72mm | 2000Vrms | 40 lbs (18.1 kg) |
|
369GXPWR XFMR LAMINATED 50VA CHAS MT Hammond Manufacturing |
4,909 |
|
Datasheet |
300 | Bulk | Active | Laminated Core | 100V, 110V, 120V, 200V, 220V, 240V | 450V, 6.3V | 75mA, 2.5A | Dual, Multiple Taps | Dual | Yes | 50VA | Chassis Mount | Wire Leads | 63.50mm L x 69.85mm W | 77.72mm | 2000Vrms | 2.4 lbs (1.1 kg) |
|
|
263CXPWR XFMR LAMINATED 116VA CHAS MT Hammond Manufacturing |
1,037 |
|
Datasheet |
263 | Bulk | Active | Laminated Core | 115V | 360V, 5V | 287mA, 3A | Single | Triple | Yes | 116VA | Chassis Mount | Wire Leads | 63.50mm L x 95.25mm W | 77.72mm | 2000Vrms | 4.4 lbs (2 kg) |
|
|
369BXPWR XFMR LAMINATED 39VA CHAS MT Hammond Manufacturing |
1,280 |
|
Datasheet |
300 | Bulk | Active | Laminated Core | 100V, 110V, 120V, 200V, 220V, 240V | 300V, 6.3V | 86mA, 2A | Dual, Multiple Taps | Dual | Yes | 39VA | Chassis Mount | Wire Leads | 63.50mm L x 69.85mm W | 77.72mm | 2000Vrms | 2.3 lbs (1 kg) |
|

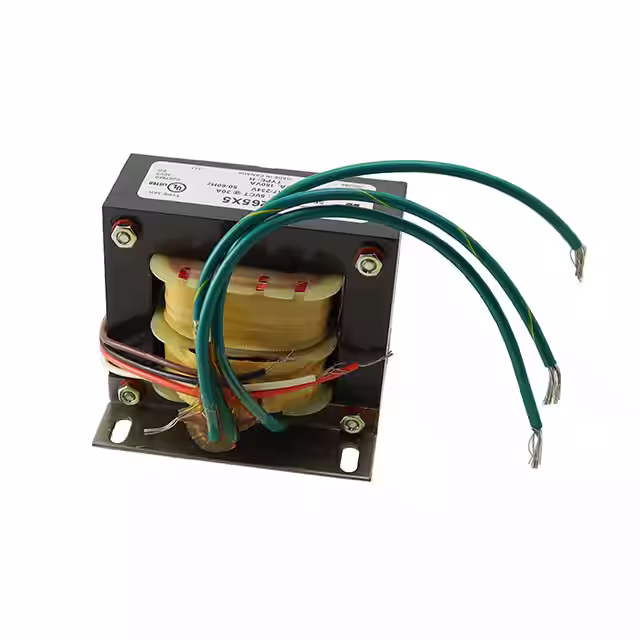

265X5PWR XFMR LAMINATED CHAS MT Hammond Manufacturing |
1,456 |
|
Datasheet |
265 | Bulk | Active | Laminated Core | 117V | 5V | 30A | Dual | Single | Yes | - | Chassis Mount | Wire Leads | - | 79.38mm | - | - |
|
165T22PWR XFMR LAMINATED 264VA CHAS MT Hammond Manufacturing |
3,273 |
|
Datasheet |
165 | Bulk | Active | Laminated Core | 115V | 22V | 12A | Single | Single | Yes | 264VA | Chassis Mount | Wire Leads | 114.30mm L x 88.90mm W | 95.25mm | 2000Vrms | 8.2 lbs (3.7 kg) |
|
266P24PWR XFMR LAMINATED 120VA CHAS MT Hammond Manufacturing |
3,526 |
|
Datasheet |
266 | Box | Active | Laminated Core | 117V, 234V | Parallel 12V, Series 24V | Parallel 10A, Series 5A | Dual | Dual | No | 120VA | Chassis Mount | Wire Leads | 79.50mm L x 72.64mm W | 96.77mm | 2000Vrms | 5.2 lbs (2.4 kg) |
|
1182S15PWR XFMR TOROIDAL 300VA CHAS MT Hammond Manufacturing |
3,171 |
|
Datasheet |
1182 | Box | Active | Toroidal | 117V, 234V | Parallel 15V, Series 30V | Parallel 20A, Series 10A | Dual | Dual | No | 300VA | Chassis Mount | Wire Leads | 127.00mm Dia | 47.75mm | 4000Vrms | 6 lbs (2.7 kg) |
|
|
1182K240PWR XFMR TOROIDAL 300VA CHAS MT Hammond Manufacturing |
2,809 |
|
Datasheet |
1182 | Box | Active | Toroidal | 117V, 234V | 240V | 1.25A | Dual | Single | No | 300VA | Chassis Mount | Wire Leads | 127.00mm Dia | 47.75mm | 4000Vrms | 6 lbs (2.7 kg) |
