Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1182L60PWR XFMR TOROIDAL 300VA CHAS MT Hammond Manufacturing |
2,487 |
|
Datasheet |
1182 | Box | Active | Toroidal | 117V, 234V | Parallel 60V, Series 120V | Parallel 5A, Series 2.5A | Dual | Dual | No | 300VA | Chassis Mount | Wire Leads | 127.00mm Dia | 47.75mm | 4000Vrms | 6 lbs (2.7 kg) |
|
290BXPWR XFMR LAMINATED CHAS MT Hammond Manufacturing |
2,471 |
|
Datasheet |

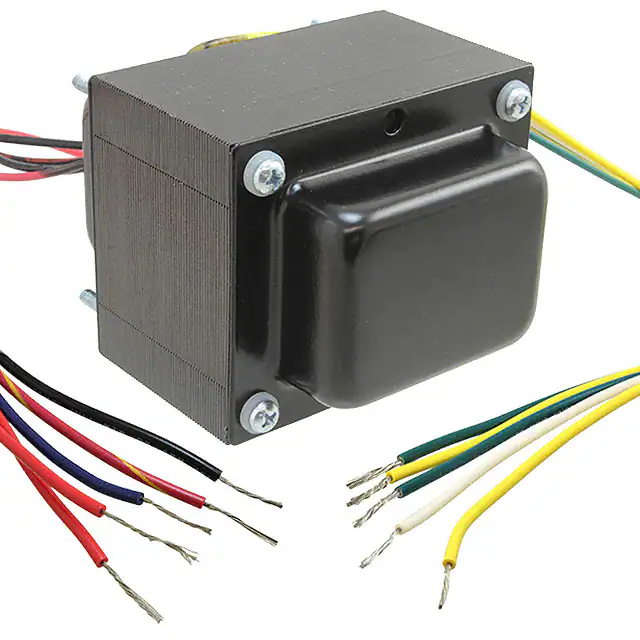

290 | Box | Active | Laminated Core | 120V | 660V, 6V, 5V | 138mA, 3A, 3A | Single | Triple | Yes | - | Chassis Mount | Wire Leads | 71.45mm L x 103.20mm W | 87.33mm | - | 5.4 lbs (2.4 kg) |
|
228HPWR XFMR SEMI-TORO 10VA TH Hammond Manufacturing |
1,923 |
|
Datasheet |
228 | Bulk | Active | Semi-Toroidal | 115V | Parallel 20V, Series 40V | Parallel 500mA, Series 250mA | Single | Dual | No | 10VA | Through Hole | PC Pin | 69.85mm L x 56.64mm W | 30.99mm | - | 0.91 lb (412.77 g) |
|
|
227RPWR XFMR SEMI-TORO 40VA TH Hammond Manufacturing |
1,155 |
|
Datasheet |
227 | Bulk | Active | Semi-Toroidal | 115V | Parallel 15V, Series 30V | Parallel 2.66A, Series 1.33A | Single | Dual | No | 40VA | Through Hole | PC Pin | 51.31mm L x 41.40mm W | 26.67mm | - | 0.38 lb (172.37 g) |
|
266L48PWR XFMR LAMINATED 96VA CHAS MT Hammond Manufacturing |
3,008 |
|
Datasheet |
266 | Bulk | Active | Laminated Core | 117V, 234V | Parallel 24V, Series 48V | Parallel 4A, Series 2A | Dual | Dual | No | 96VA | Chassis Mount | Wire Leads | 71.37mm L x 77.72mm W | 85.85mm | 2000Vrms | 4.5 lbs (2 kg) |
|
|
1182M110PWR XFMR TOROIDAL 300VA CHAS MT Hammond Manufacturing |
2,572 |
|
Datasheet |
1182 | Box | Active | Toroidal | 117V, 234V | Parallel 110V, Series 220V | Parallel 2.72A, Series 1.36A | Dual | Dual | No | 300VA | Chassis Mount | Wire Leads | 127.00mm Dia | 47.75mm | 4000Vrms | 6 lbs (2.7 kg) |
|
|
227PPWR XFMR SEMI-TORO 40VA TH Hammond Manufacturing |
2,840 |
|
Datasheet |
227 | Bulk | Active | Semi-Toroidal | 115V | Parallel 13V, Series 26V | Parallel 3.08A, Series 1.54A | Single | Dual | No | 40VA | Through Hole | PC Pin | 51.31mm L x 41.40mm W | 26.67mm | - | 0.38 lb (172.37 g) |
|
|
226RPWR XFMR SEMI-TORO 20VA TH Hammond Manufacturing |
2,230 |
|
Datasheet |
226 | Bulk | Active | Semi-Toroidal | 115V | Parallel 15V, Series 30V | Parallel 1.33A, Series 670mA | Single | Dual | No | 20VA | Through Hole | PC Pin | 43.94mm L x 34.29mm W | 20.32mm | - | 0.22 lb (99.79 g) |
|
|
266V6BPWR XFMR LAMINATED 126VA CHAS MT Hammond Manufacturing |
1,482 |
|
Datasheet |
266 | Box | Active | Laminated Core | 117V, 234V | Parallel 3.15V, Series 6.3V | Parallel 40A, Series 20A | Dual | Dual | No | 126VA | Chassis Mount | Wire Leads | 79.50mm L x 90.42mm W | 96.77mm | 2000Vrms | 6.4 lbs (2.9 kg) |
|
370AXPWR XFMR LAMINATED 44VA CHAS MT Hammond Manufacturing |
1,891 |
|
Datasheet |
300 | Bulk | Active | Laminated Core | 100V, 110V, 120V, 200V, 220V, 240V | 480V, 6.3V | 58mA, 2.5A | Dual, Multiple Taps | Dual | Yes | 44VA | Chassis Mount | Wire Leads | 63.50mm L x 69.85mm W | 77.72mm | 2000Vrms | 2.3 lbs (1 kg) |
