Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BV030-7150.0PWR XFMR LAMINATED 1.5VA TH Pulse Electronics |
4,982 |
|
Datasheet |
- | - | Obsolete | Laminated Core | 115V | 6V | 250mA | Single | Single | No | 1.5VA | Through Hole | PC Pin | 32.50mm L x 27.50mm W | 24.00mm | - | 0.133 lb (60.33 g) |
|
|
BV030-7152.0PWR XFMR LAMINATED 1.5VA TH Pulse Electronics |
2,189 |
|
Datasheet |
- | - | Obsolete | Laminated Core | 115V | 15V | 100mA | Single | Single | No | 1.5VA | Through Hole | PC Pin | 32.50mm L x 27.50mm W | 24.00mm | - | 0.133 lb (60.33 g) |
|
|
BV030-7153.0PWR XFMR LAMINATED 1.5VA TH Pulse Electronics |
3,001 |
|
Datasheet |
- | - | Obsolete | Laminated Core | 115V | 18V | 83mA | Single | Single | No | 1.5VA | Through Hole | PC Pin | 32.50mm L x 27.50mm W | 24.00mm | - | 0.133 lb (60.33 g) |
|
|
BV030-7154.0PWR XFMR LAMINATED 1.5VA TH Pulse Electronics |
3,437 |
|
Datasheet |
- | - | Obsolete | Laminated Core | 115V | 24V | 62mA | Single | Single | No | 1.5VA | Through Hole | PC Pin | 32.50mm L x 27.50mm W | 24.00mm | - | 0.133 lb (60.33 g) |
|

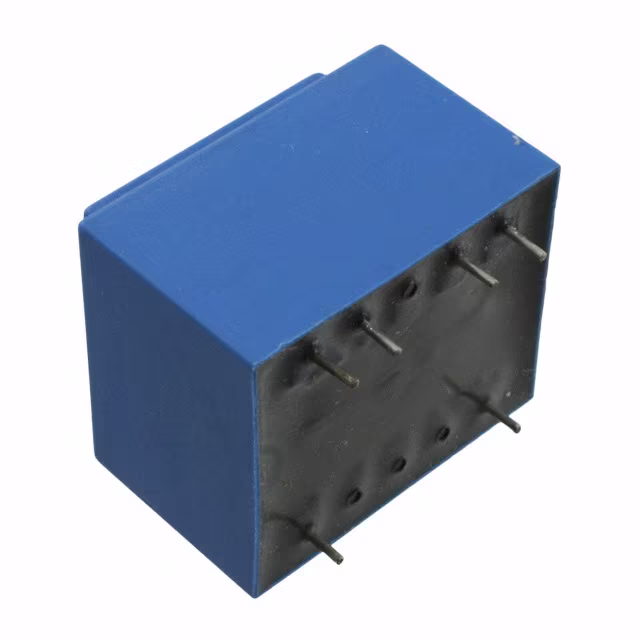

BV030-7155.0PWR XFMR LAMINATED 1.5VA TH Pulse Electronics |
3,185 |
|
Datasheet |
- | - | Obsolete | Laminated Core | 115V | Parallel 6V, Series 12V | Parallel 250mA, Series 125mA | Single | Dual | No | 1.5VA | Through Hole | PC Pin | 32.50mm L x 27.50mm W | 24.00mm | - | 0.133 lb (60.33 g) |
|
|
BV030-7161.0PWR XFMR LAMINATED 1.5VA TH Pulse Electronics |
4,613 |
|
Datasheet |
- | - | Obsolete | Laminated Core | 230V | 6V | 250mA | Single | Single | No | 1.5VA | Through Hole | PC Pin | 32.50mm L x 27.50mm W | 24.00mm | - | 0.133 lb (60.33 g) |
|
|
BV030-7163.0PWR XFMR LAMINATED 1.5VA TH Pulse Electronics |
4,510 |
|
Datasheet |
- | - | Obsolete | Laminated Core | 230V | 15V | 100mA | Single | Single | No | 1.5VA | Through Hole | PC Pin | 32.50mm L x 27.50mm W | 24.00mm | - | 0.133 lb (60.33 g) |
|
|
BV030-7164.0PWR XFMR LAMINATED 1.5VA TH Pulse Electronics |
3,712 |
|
Datasheet |
- | - | Obsolete | Laminated Core | 230V | 18V | 83mA | Single | Single | No | 1.5VA | Through Hole | PC Pin | 32.50mm L x 27.50mm W | 24.00mm | - | 0.133 lb (60.33 g) |
|
|
BV030-7165.0PWR XFMR LAMINATED 1.5VA TH Pulse Electronics |
4,030 |
|
Datasheet |
- | - | Obsolete | Laminated Core | 230V | 24V | 62mA | Single | Single | No | 1.5VA | Through Hole | PC Pin | 32.50mm L x 27.50mm W | 24.00mm | - | 0.133 lb (60.33 g) |
|
|
BV030-7166.0PWR XFMR LAMINATED 1.5VA TH Pulse Electronics |
4,017 |
|
Datasheet |
- | - | Obsolete | Laminated Core | 230V | Parallel 6V, Series 12V | Parallel 250mA, Series 125mA | Single | Dual | No | 1.5VA | Through Hole | PC Pin | 32.50mm L x 27.50mm W | 24.00mm | - | 0.133 lb (60.33 g) |
