Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

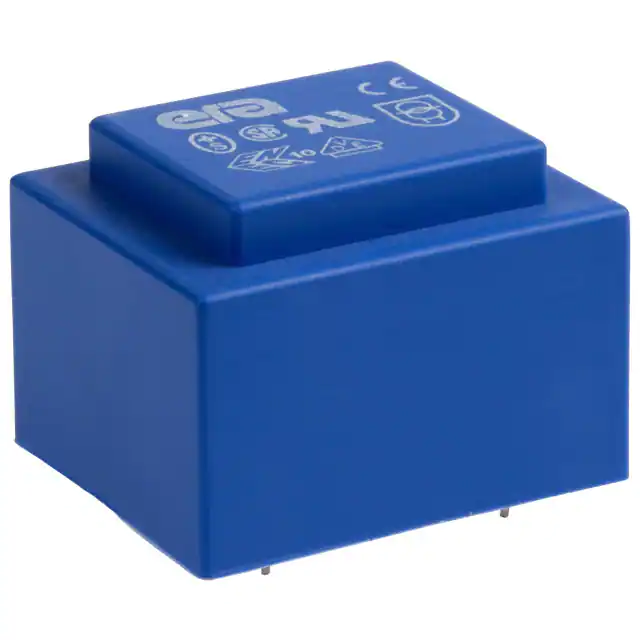

BV042-5190.0PWR XFMR LAMINATED 5VA TH Pulse Electronics |
3,449 |
|
Datasheet |
- | - | Obsolete | Laminated Core | 230V | 9V | 556mA | Single | Single | No | 5VA | Through Hole | PC Pin | 45.50mm L x 38.50mm W | 32.00mm | - | 0.133 lb (60.33 g) |
|

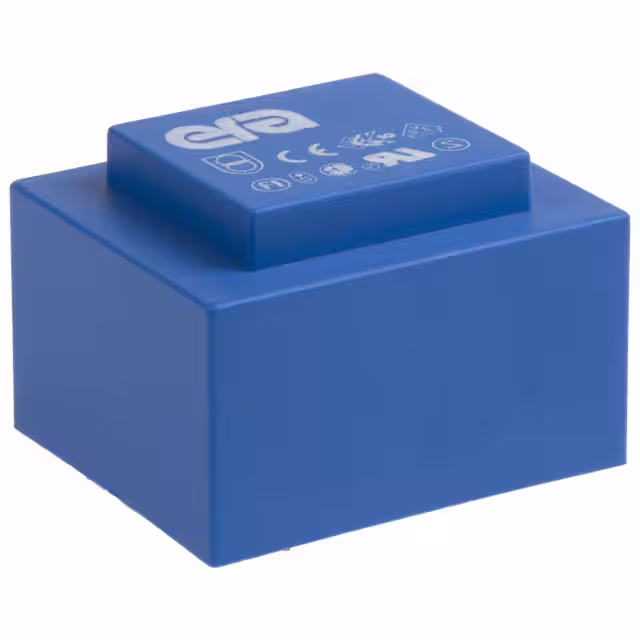

BV048-5216.0PWR XFMR LAMINATED 10VA TH Pulse Electronics |
3,243 |
|
Datasheet |
- | - | Obsolete | Laminated Core | 230V | Parallel 12V, Series 24V | Parallel 832mA, Series 416mA | Single | Dual | No | 10VA | Through Hole | PC Pin | 50.50mm L x 42.50mm W | 34.50mm | - | 0.133 lb (60.33 g) |
|
BV030-7007.0PWR XFMR LAMINATED 6VA TH Pulse Electronics |
4,867 |
|
Datasheet |
- | - | Obsolete | Laminated Core | 115V, 230V | Parallel 9V, Series 18V | Parallel 666mA, Series 333mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 53.00mm L x 44.00mm W | 22.00mm | - | 0.133 lb (60.33 g) |
|
BV030-7079.0PWR XFMR LAMINATED 10VA TH Pulse Electronics |
1,607 |
|
Datasheet |
- | - | Obsolete | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 832mA, Series 416mA | Dual | Dual | No | 10VA | Through Hole | PC Pin | 53.00mm L x 44.00mm W | 28.00mm | - | 0.133 lb (60.33 g) |
|
BV030-6941.0PWR XFMR LAMINATED 4VA TH Pulse Electronics |
4,434 |
|
Datasheet |
- | - | Obsolete | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 332mA, Series 166mA | Dual | Dual | No | 4VA | Through Hole | PC Pin | 53.00mm L x 44.00mm W | 19.00mm | - | 0.133 lb (60.33 g) |
|

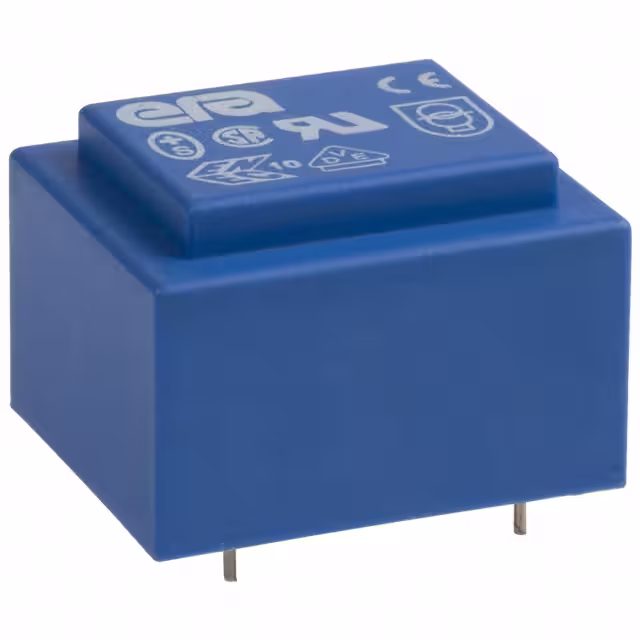

BV020-5371.0PWR XFMR LAMINATED 0.5VA TH Pulse Electronics |
4,349 |
|
Datasheet |
- | - | Obsolete | Laminated Core | 115V | 9V | 55mA | Single | Single | No | 0.5VA | Through Hole | PC Pin | 22.00mm L x 23.00mm W | 19.00mm | - | 0.077 lb (34.93 g) |
|
|
BV020-5373.0PWR XFMR LAMINATED 0.5VA TH Pulse Electronics |
3,444 |
|
Datasheet |
- | - | Obsolete | Laminated Core | 115V | 15V | 34mA | Single | Single | No | 0.5VA | Through Hole | PC Pin | 22.00mm L x 23.00mm W | 19.00mm | - | 0.077 lb (34.93 g) |
|
|
BV020-5374.0PWR XFMR LAMINATED 0.5VA TH Pulse Electronics |
3,172 |
|
Datasheet |
- | - | Obsolete | Laminated Core | 115V | 18V | 28mA | Single | Single | No | 0.5VA | Through Hole | PC Pin | 22.00mm L x 23.00mm W | 19.00mm | - | 0.077 lb (34.93 g) |
|
|
BV020-5383.0PWR XFMR LAMINATED 0.5VA TH Pulse Electronics |
4,528 |
|
Datasheet |
- | - | Obsolete | Laminated Core | 230V | 9V | 55mA | Single | Single | No | 0.5VA | Through Hole | PC Pin | 22.00mm L x 23.00mm W | 19.00mm | - | 0.077 lb (34.93 g) |
|
|
BV020-5385.0PWR XFMR LAMINATED 0.5VA TH Pulse Electronics |
4,127 |
|
Datasheet |
- | - | Obsolete | Laminated Core | 230V | 15V | 34mA | Single | Single | No | 0.5VA | Through Hole | PC Pin | 22.00mm L x 23.00mm W | 19.00mm | - | 0.077 lb (34.93 g) |
