Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE-68866NLXFRMR 1:1/1.26 / 1:2CT 1.5/1.2MH Pulse Electronics |
4,501 |
|
Datasheet |
- | Tube | Obsolete | T1/E1 (Dual) | 1.2mH, 1.5mH | - | 1:1/1.26, 1:2CT | Surface Mount | 0.675" L x 0.456" W (17.15mm x 11.58mm) | 0.340" (8.64mm) | 0°C ~ 70°C | - | - |
|
|
PE-68836NLXFRMR 1:1/1.26 / 1:1/1.26 SMD Pulse Electronics |
1,192 |
|
Datasheet |
- | Tube | Active | T1/E1 (Dual) | 1.5mH, 1.5mH | - | 1:1/1.26, 1:1/1.26 | Surface Mount | 0.675" L x 0.456" W (17.15mm x 11.58mm) | 0.340" (8.64mm) | 0°C ~ 70°C | - | - |
|
|
PE-68864NLXFRMR 1CT:2CT/1:1 1.2/1.2MH SMD Pulse Electronics |
3,455 |
|
Datasheet |
- | Tube | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:2CT, 1:1 | Surface Mount | 0.675" L x 0.456" W (17.15mm x 11.58mm) | 0.340" (8.64mm) | 0°C ~ 70°C | - | - |
|
|
PE-68882NLXFRMR 1CT:1.15CT/1CT:1CT SMD Pulse Electronics |
4,700 |
|
Datasheet |
- | Tube | Obsolete | T1/E1 (Dual) | 1.6mH, 1.6mH | - | 1CT:1.15CT, 1CT:1CT | Surface Mount | 0.675" L x 0.456" W (17.15mm x 11.58mm) | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
|

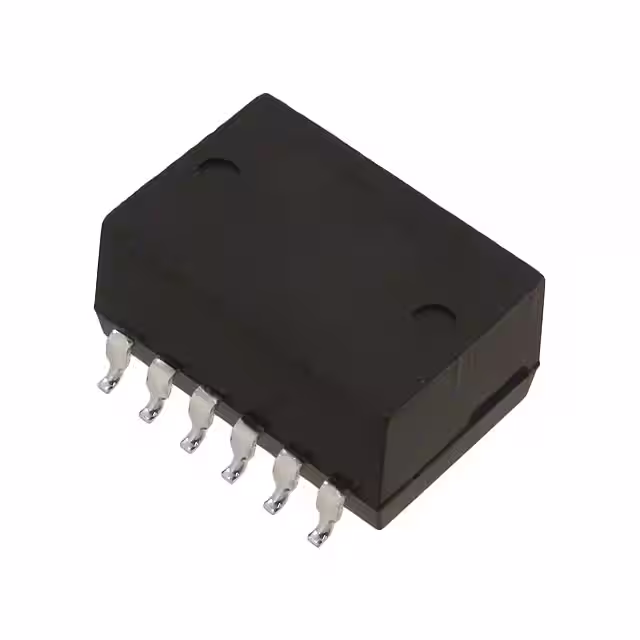

PE-68826NLXFRMR 1:1/1.26 / 1:2CT 1.2/1.2MH Pulse Electronics |
4,138 |
|
Datasheet |
- | Tube | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1:1/1.26, 1:2CT | Surface Mount | 0.675" L x 0.456" W (17.15mm x 11.58mm) | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
|
|
TX1192NLMODULE 1CT:2.42CT 1.2MH SMD Pulse Electronics |
1,588 |
|
Datasheet |
- | Tube | Obsolete | T1/E1 (Dual) | 1.2mH | - | 1CT:2.42CT Transmitter, 1CT:2.42CT Receiver | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.20mm) | 0.227" (5.76mm) | -40°C ~ 85°C | - | - |
|
|
TX3047NLXFRMR OCTAL 1:1 100UH SMD Pulse Electronics |
2,528 |
|
- |
- | Tube | Obsolete | T3/E3 (Octal) | 100µH | - | 1:1 | Surface Mount | 1.000" L x 0.310" W (25.40mm x 7.87mm) | 0.295" (7.49mm) | -40°C ~ 85°C | - | - |
|
E2457NLXFRMR ISOL 10BASE-T 1:1.41 SMD Pulse Electronics |
2,875 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | 140µH, 140µH | - | 1CT:1.41CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.241" (6.12mm) | - | - | - |
|
|
T5005NLXFRM ISDN-S 1:2.5/1:2.5 22MH SMD Pulse Electronics |
1,794 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | 22mH | - | 1:2.5, 1:2.5 | Surface Mount | 0.950" L x 0.580" W (24.13mm x 14.73mm) | 0.300" (7.62mm) | 0°C ~ 70°C | - | - |
|
|
BX2577LNLXFRMR ADSL FOR GLOBESPAN CPE CHP Pulse Electronics |
3,344 |
|
- |
- | Tray | Active | ADSL | 701µH | - | 1:4 Transmitter, 1:2 Receiver | Surface Mount | 0.537" L x 0.622" W (13.65mm x 15.80mm) | 0.492" (12.50mm) | -40°C ~ 85°C | - | - |
