Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

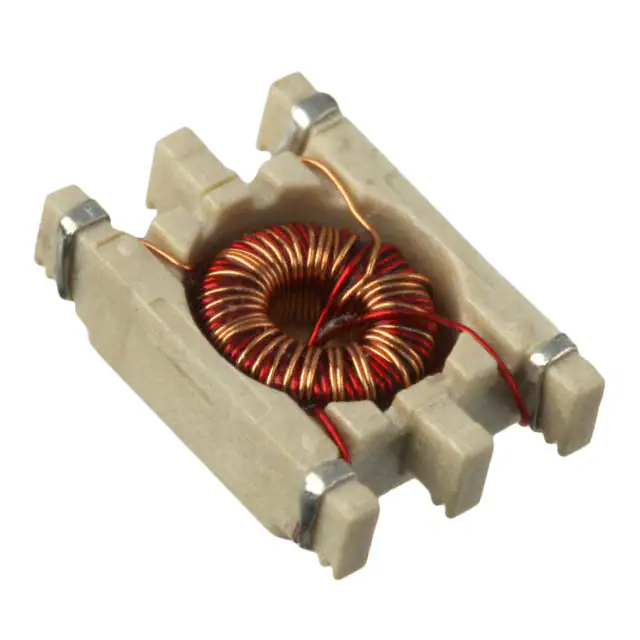

PA2001NLTPULSE XFMR 1:1 403UH Pulse Electronics |
1,671 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 403µH | 12VµS | 1:1 | Surface Mount | 0.340" L x 0.265" W (8.64mm x 6.73mm) | 0.098" (2.49mm) | -40°C ~ 130°C | - | - |
|
PH9384.034NLTXFMR GATE-DR 3T:4CT SMT NPB Pulse Electronics |
1,065 |
|
Datasheet |
PH9384 | Tape & Reel (TR) | Active | - | - | - | - | Surface Mount | 0.492" L x 0.362" W (12.50mm x 9.20mm) | 0.299" (7.60mm) | - | - | - |
|
|
PE-68386NLTPULSE XFMR 1:1 785UH Pulse Electronics |
2,036 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 785µH | 9.7VµS | 1:1 | Surface Mount | 0.340" L x 0.265" W (8.64mm x 6.73mm) | 0.098" (2.49mm) | -40°C ~ 130°C | - | - |
|

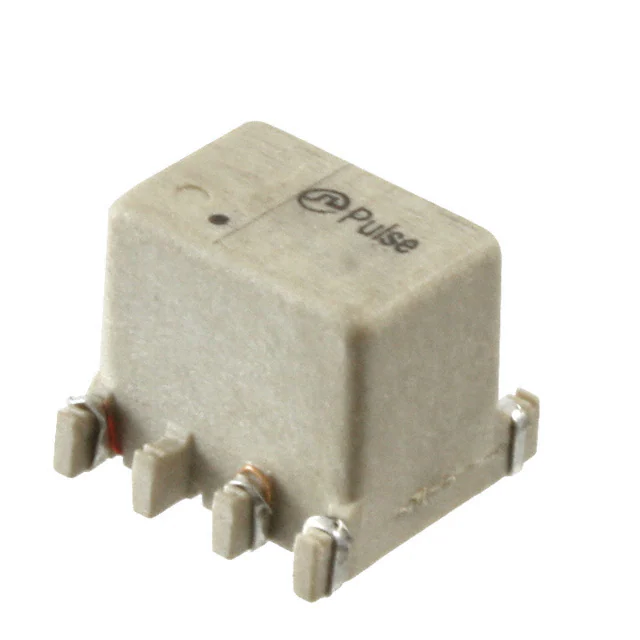

PA2002NLTPULSE XFMR 1:1:1 1.8MH Pulse Electronics |
5,897 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 1.8mH | 60VµS | 1:1:1 | Surface Mount | 0.355" L x 0.340" W (9.02mm x 8.64mm) | 0.300" (7.62mm) | -40°C ~ 130°C | - | - |
|
|
PE-68386NLPULSE XFMR 1:1 785UH Pulse Electronics |
1,415 |
|
Datasheet |
- | Tube | Active | - | 785µH | 9.7VµS | 1:1 | Surface Mount | 0.340" L x 0.265" W (8.64mm x 6.73mm) | 0.098" (2.49mm) | -40°C ~ 130°C | - | - |
|
PA0297NLTPULSE XFMR 2:1:1 1200UH Pulse Electronics |
680 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 1.2mH | 27.2VµS | 2:1:1 | Surface Mount | 0.355" L x 0.340" W (9.02mm x 8.64mm) | 0.300" (7.62mm) | -40°C ~ 130°C | - | - |
|

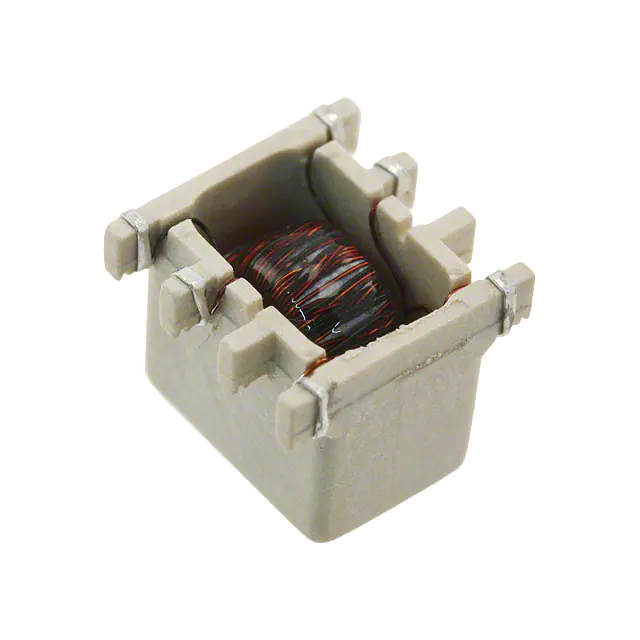

P0544NLTPULSE XFMR 1:1:1 3.3MH Pulse Electronics |
2,472 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 3.3mH | 45.1VµS | 1:1:1 | Surface Mount | 0.355" L x 0.340" W (9.02mm x 8.64mm) | 0.300" (7.62mm) | -40°C ~ 130°C | - | - |
|

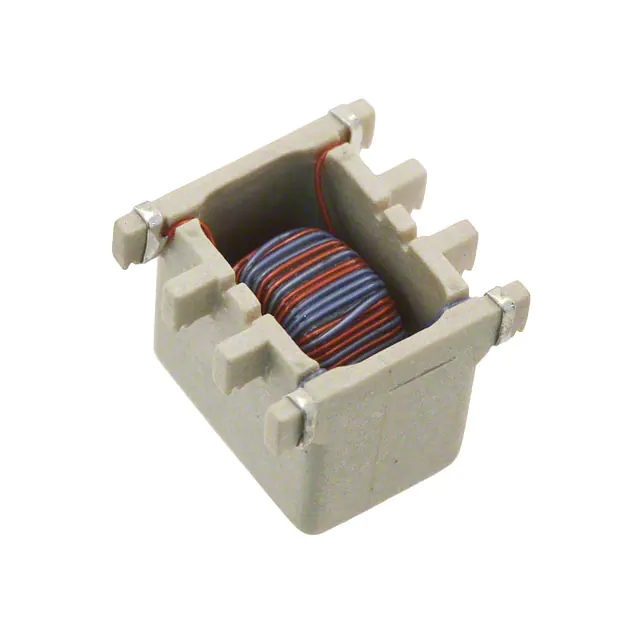

PA0184NLTPULSE XFMR 1:1 1.2MH Pulse Electronics |
2,942 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 1.2mH | 27.2VµS | 1:1 | Surface Mount | 0.355" L x 0.340" W (9.02mm x 8.64mm) | 0.300" (7.62mm) | -40°C ~ 130°C | - | - |
|

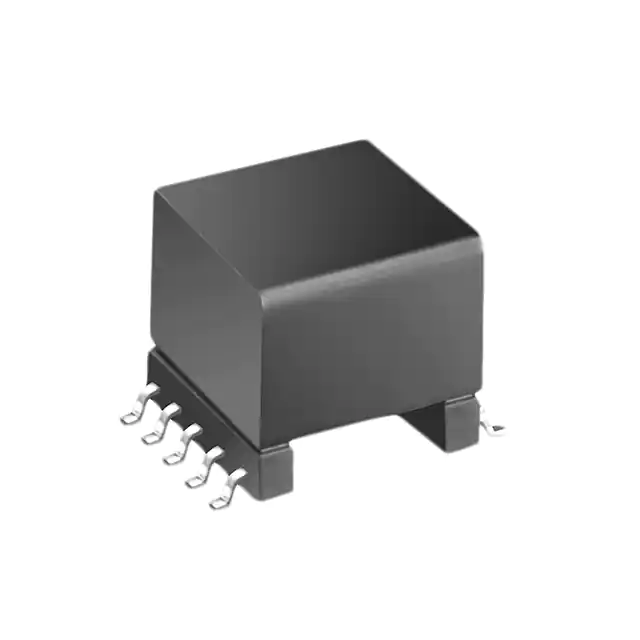

PA1284NLTXFRMR 12V 7W 155UH POE EP10 SMD Pulse Electronics |
406 |
|
Datasheet |
EP10 | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 155µH | - | 1:0.682:0.682 | Surface Mount | 0.515" L x 0.600" W (13.08mm x 15.24mm) | 0.451" (11.45mm) | -40°C ~ 125°C | - | - |
|
HX1188NLTXFRMR MAGNETIC 1PORT 1:1 10/100 Pulse Electronics |
3,634 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
