Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM2185.089NLTXFMR GATE-DR 8CT:9CT SM NPB Pulse Electronics |
1,612 |
|
Datasheet |
PM2185.XXXNL | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 538µH | 24VµS | 8CT:9CT | Surface Mount | 0.362" L x 0.323" W (9.20mm x 8.20mm) | 0.299" (7.60mm) | -40°C ~ 125°C | - | - |
|
|
PM2185.038NLTXFMR GATE-DR 3CT:8CT SM NPB Pulse Electronics |
2,290 |
|
Datasheet |
PM2185.XXXNL | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 538µH | 27VµS | 3CT:8CT | Surface Mount | 0.362" L x 0.323" W (9.20mm x 8.20mm) | 0.299" (7.60mm) | -40°C ~ 125°C | - | - |
|
|
PM2185.043NLTXFMR GATE-DR 4CT:3CT SM NPB Pulse Electronics |
1,617 |
|
Datasheet |
PM2185.XXXNL | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 538µH | 24VµS | 4CT:3CT | Surface Mount | 0.362" L x 0.323" W (9.20mm x 8.20mm) | 0.299" (7.60mm) | -40°C ~ 125°C | - | - |
|
PM2180.035NLTXFMR GATE-DR 3CT:5CT SM NPB Pulse Electronics |
4,216 |
|
Datasheet |
PM2180.XXXNL | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 1.02mH | 22VµS | 3CT:5CT | Surface Mount | 0.319" L x 0.280" W (8.10mm x 7.10mm) | 0.200" (5.08mm) | -40°C ~ 125°C | - | - |
|
|
PM2180.021NLTXFMR GATE-DR 2CT:1CT SM NPB Pulse Electronics |
3,229 |
|
Datasheet |
PM2180.XXXNL | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 1.16mH | 23.6VµS | 2CT:1CT | Surface Mount | 0.319" L x 0.280" W (8.10mm x 7.10mm) | 0.200" (5.08mm) | -40°C ~ 125°C | - | - |
|
|
PM2185.035NLTXFMR GATE-DR 3CT:5CT SM NPB Pulse Electronics |
2,498 |
|
Datasheet |
PM2185.XXXNL | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 680µH | 27VµS | 3CT:5CT | Surface Mount | 0.362" L x 0.323" W (9.20mm x 8.20mm) | 0.299" (7.60mm) | -40°C ~ 125°C | - | - |
|
|
PM2185.021NLTXFMR GATE-DR 2CT:1CT SM NPB Pulse Electronics |
1,804 |
|
Datasheet |
PM2185.XXXNL | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 538µH | 24VµS | 2CT:1CT | Surface Mount | 0.362" L x 0.323" W (9.20mm x 8.20mm) | 0.299" (7.60mm) | -40°C ~ 125°C | - | - |
|
|
PM2185.083NLTXFMR GATE-DR 8CT:3CT SM NPB Pulse Electronics |
4,526 |
|
Datasheet |
PM2185.XXXNL | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 538µH | 24VµS | 8CT:3CT | Surface Mount | 0.362" L x 0.323" W (9.20mm x 8.20mm) | 0.299" (7.60mm) | -40°C ~ 125°C | - | - |
|

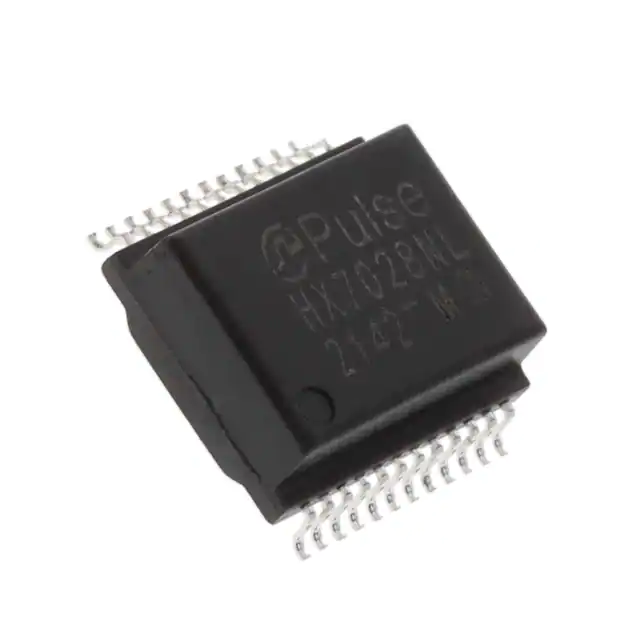

HX7028NLMDL SIN 10G 1:1 GEN2 SM TU Pulse Electronics |
1,411 |
|
Datasheet |
HX7028NL | Tube | Obsolete | LAN 10G Base-T | - | - | - | Surface Mount | 0.537" L x 0.480" W (13.64mm x 12.19mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
HC1002NLMODULE TRANSFORMER Pulse Electronics |
4,476 |
|
- |
- | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - |
