Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA1283NLPULSE XFMR 155UH Pulse Electronics |
359 |
|
Datasheet |
- | Tray | Active | - | 155µH | - | - | Surface Mount | 0.515" L x 0.600" W (13.08mm x 15.24mm) | 0.451" (11.45mm) | -40°C ~ 125°C | - | - |
|

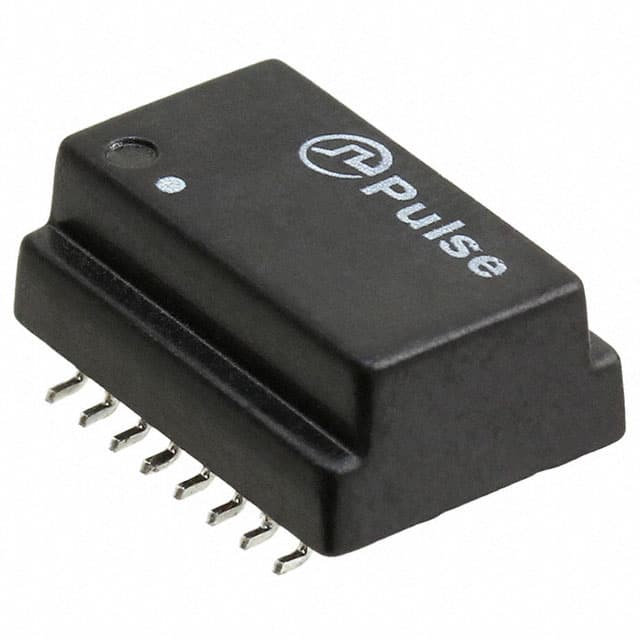

H1197FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
597 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | 1.2mH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | 0°C ~ 70°C | - | - |
|
|
HB6601NLMOD DUAL 1GP 1:1 EXT HF 48P Pulse Electronics |
864 |
|
Datasheet |
HB6 | Tube | Active | LAN 100/1000 Base-T | 350µH | - | 1CT:1CT | Through Hole | 1.106" L x 0.437" W (28.10mm x 11.10mm) | 0.433" (11.00mm) | 0°C ~ 70°C | - | - |
|
|
PA2669NLPULSE XFMR 17.3UH Pulse Electronics |
740 |
|
Datasheet |
- | Tray | Active | - | 17.3µH | - | - | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
|
|
HB5609NLMOD DUAL 1GD 1:1 HF 36P Pulse Electronics |
1,120 |
|
Datasheet |
HB5 | Tube | Active | LAN 100/1000 Base-T | 350µH | - | 1CT:1CT | Through Hole | 1.280" L x 0.335" W (32.50mm x 8.50mm) | 0.457" (11.60mm) | 0°C ~ 70°C | - | - |
|
|
HB5608NLMOD DUAL 1GD 1:1 HF 36P Pulse Electronics |
1,120 |
|
Datasheet |
HB5 | Tube | Active | LAN 100/1000 Base-T | 350µH | - | 1CT:1CT | Through Hole | 1.280" L x 0.335" W (32.50mm x 8.50mm) | 0.457" (11.60mm) | 0°C ~ 70°C | - | - |
|
|
HB5605NLMOD DUAL 1GD 1:1 HF 48P Pulse Electronics |
864 |
|
Datasheet |
HB5 | Tube | Active | LAN 100/1000 Base-T | 350µH | - | 1CT:1CT | Through Hole | 1.106" L x 0.437" W (28.10mm x 11.10mm) | 0.433" (11.00mm) | 0°C ~ 70°C | - | - |
|
|
HB5606NLMOD DUAL 1GD 1:1 HF 48P Pulse Electronics |
864 |
|
Datasheet |
HB5 | Tube | Active | LAN 100/1000 Base-T | 350µH | - | 1CT:1CT | Through Hole | 1.106" L x 0.437" W (28.10mm x 11.10mm) | 0.433" (11.00mm) | 0°C ~ 70°C | - | - |
|
|
PA1309NLTPULSE XFMR 16.4UH Pulse Electronics |
445 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 16.4µH | - | - | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
|
|
PA2456NLPULSE XFMR 24UH Pulse Electronics |
313 |
|
Datasheet |
- | Tray | Active | - | 24µH | - | - | Surface Mount | 0.515" L x 0.600" W (13.08mm x 15.24mm) | 0.451" (11.45mm) | -40°C ~ 130°C | - | - |
