Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA2669NLTPULSE XFMR 17.3UH Pulse Electronics |
2,272 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 17.3µH | - | - | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
|
|
PA2725NLPULSE XFMR 139.5UH Pulse Electronics |
4,194 |
|
Datasheet |
- | Tray | Active | - | 139.5µH | - | - | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
|
|
PA1769NLPULSE XFMR 6.7UH Pulse Electronics |
3,123 |
|
Datasheet |
- | Tray | Active | - | 6.7µH | - | - | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
|

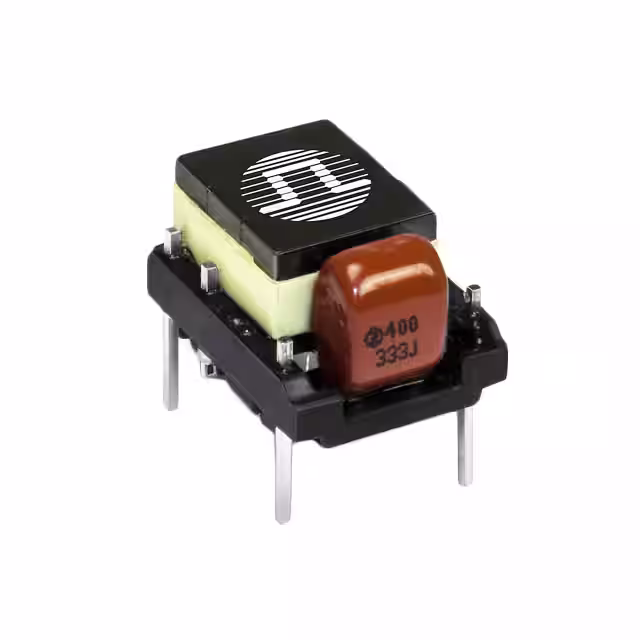

B8891NLPULSE XFMR XDSL 600 OHM NPB Pulse Electronics |
4,801 |
|
Datasheet |
SmartER Splitter™ | Tray | Active | ADSL, VDSL | - | - | - | Through Hole | 0.701" L x 0.492" W (17.80mm x 12.50mm) | 0.512" (13.00mm) | - | - | - |
|
|
AVP2014RMDL SMD 2.5G SINGLE PORT N/A Pulse Electronics |
3,684 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - |
|
|
LG1P109NAM LFMDL 1G DIP SINGLE PORT N/A Pulse Electronics |
3,139 |
|
Datasheet |
- | Tube | Active | LAN 1000 Base-T | 350µH | - | 1:1CT Transmitter, 1:1CT Receiver | Through Hole | 0.661" L x 0.335" W (16.80mm x 8.50mm) | 0.457" (11.60mm) | -40°C ~ 85°C | - | - |
|
|
PA1279NLPULSE XFMR 310UH Pulse Electronics |
4,019 |
|
Datasheet |
- | Tray | Active | - | 310µH | - | - | Surface Mount | 0.421" L x 0.525" W (10.70mm x 13.34mm) | 0.365" (9.27mm) | -40°C ~ 125°C | - | - |
|
|
PA1281NLXFMR FLYBACK EP7 SM 8 PIN NPB Pulse Electronics |
3,900 |
|
- |
PA1281NL | Tray | Active | Isolation and Data Interface (Encapsulated) | 310µH | - | - | Surface Mount | 0.420" L x 0.370" W (10.67mm x 9.40mm) | 0.360" (9.14mm) | -40°C ~ 130°C | - | - |
|
PE-65723NLTTRANSFORMER 2000VRMS 75UH SMD Pulse Electronics |
1,293 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 75µH | 1.8VµS | 1:1 | Surface Mount | 0.500" L x 0.285" W (12.70mm x 7.24mm) | 0.210" (5.33mm) | 0°C ~ 70°C | - | - |
|
|
PA1861NLTPULSE XFMR 115.5UH Pulse Electronics |
2,887 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 115.5µH | - | - | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
