Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HW1B-M4P11W22MM MOMENTARY PUSHBUTTON WHT IDEC |
4,839 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button, Mushroom | - | White | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW1B-M4P11R22MM MOMENTARY PUSHBUTTON RED IDEC |
3,202 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button, Mushroom | - | Red | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW1B-M4P11B22MM MOMENTARY PUSHBUTTON BLK IDEC |
4,493 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button, Mushroom | - | Blue | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW1B-M4P11Y22MM MOMENTARY PUSHBUTTON YEL IDEC |
3,861 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button, Mushroom | - | Yellow | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW1B-M4P11G22MM MOMENTARY PUSHBUTTON GRN IDEC |
4,826 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button, Mushroom | - | Green | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|

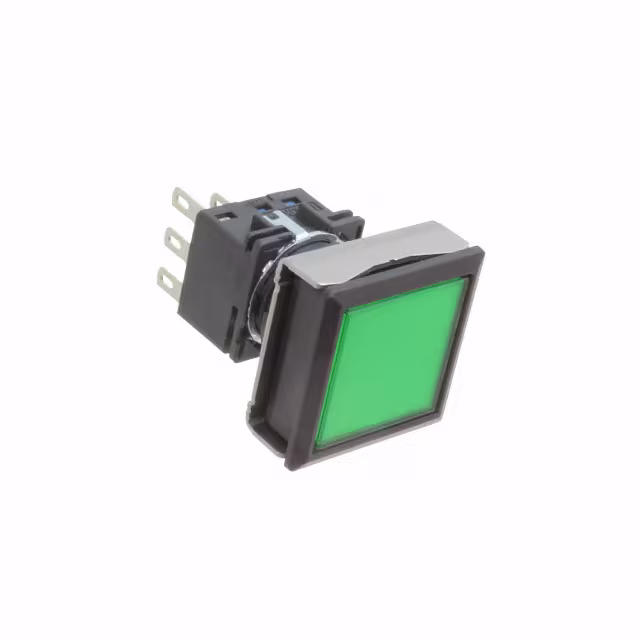

LBW7L-M1T54GLBW FLUSH ILLD PB MOME. GREEN IDEC |
2,312 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Clear | LED, Green | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 55°C |
|
|
LBW6L-M1T14ALBW FLUSH ILLD PB MOME. AMBER IDEC |
3,712 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Clear | LED, Amber | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
LBW6L-M1T14GLBW FLUSH ILLD PB MOME. GREEN IDEC |
2,336 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Clear | LED, Green | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
LBW6L-M1T14RLBW FLUSH ILLD PB MOME. RED IDEC |
3,542 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Clear | LED, Red | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
LBW6L-M1T14VALBW FLUSH ILLD PB MOME. AMBER IDEC |
1,705 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Clear | LED, Amber | 24 VAC/DC | PC Pin | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
