Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LBW7L-M1T14VRLBW FLUSH ILLD PB MOME. RED IDEC |
1,280 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Clear | LED, Red | 24 VAC/DC | PC Pin | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 55°C |
|
|
LBW7L-M1T14VYLBW FLUSH ILLD PB MOME. YELLOW IDEC |
3,532 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Yellow | LED, Yellow | 24 VAC/DC | PC Pin | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 55°C |
|
|
LBW7L-M1T14YLBW FLUSH ILLD PB MOME. YELLOW IDEC |
4,819 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Yellow | LED, Yellow | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 55°C |
|
|
LBW7L-M1T54YLBW FLUSH ILLD PB MOME. YELLOW IDEC |
4,499 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Yellow | LED, Yellow | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 55°C |
|

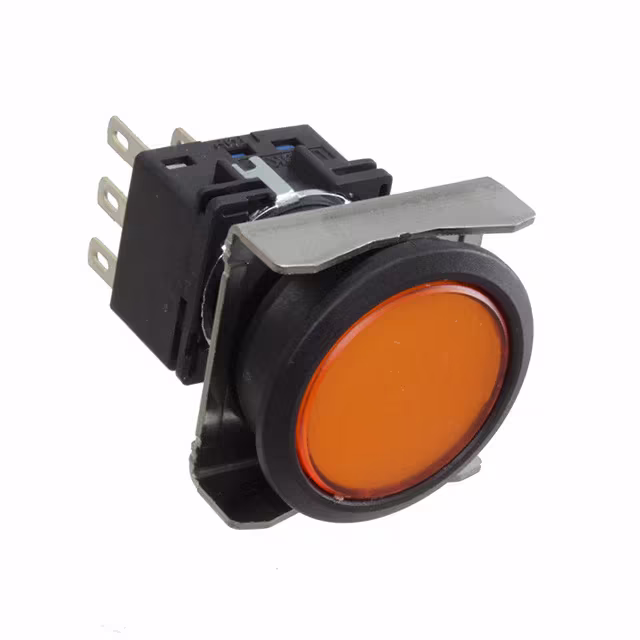

LBW6L-M1T54ALBW FLUSH ILLD PB MOME. AMBER IDEC |
3,039 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Clear | LED, Amber | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|

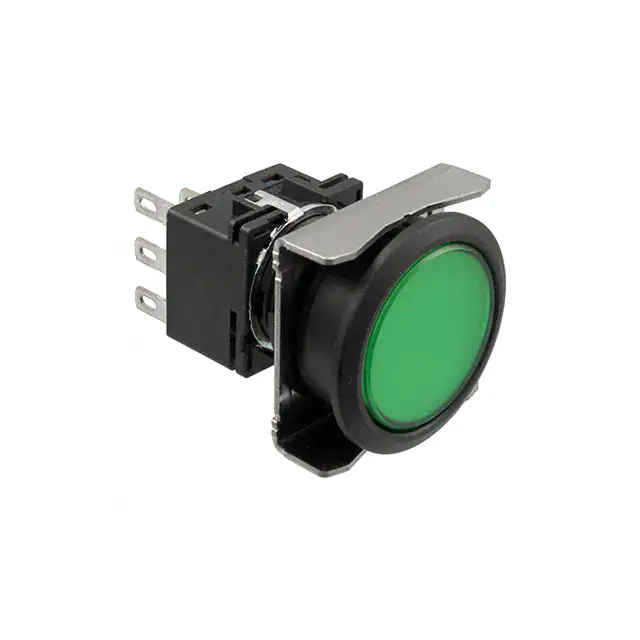

LBW6L-M1T54GLBW FLUSH ILLD PB MOME. GREEN IDEC |
4,699 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Clear | LED, Green | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
LBW6L-M1T54RLBW FLUSH ILLD PB MOME. RED IDEC |
1,380 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Clear | LED, Red | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|

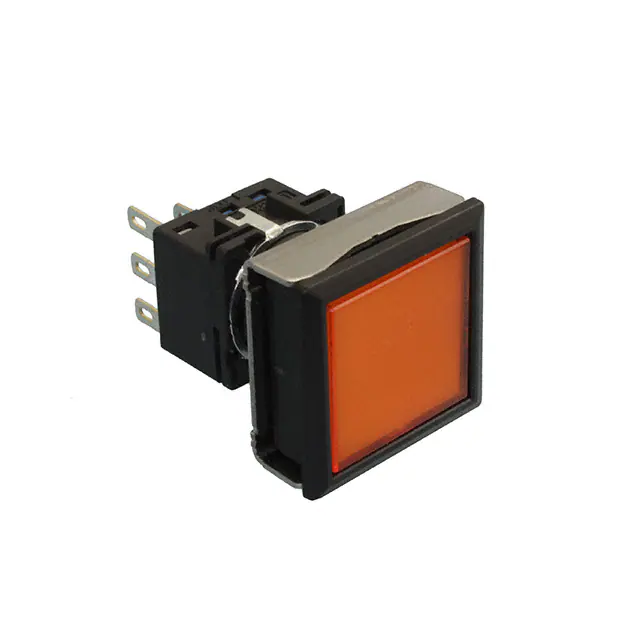

LBW7L-M1T54ALBW FLUSH ILLD PB MOME. AMBER IDEC |
3,801 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Clear | LED, Amber | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 55°C |
|
|
LW2B-A2C6-B22MM PUSHBUTTON BLACK IDEC |
2,064 |
|
Datasheet |
LW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Square, Button | - | Black | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
LW2B-A2C6-G22MM PUSHBUTTON GREEN IDEC |
2,521 |
|
Datasheet |
LW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Square, Button | - | Green | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
