Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UB25KKW015C-CCSWITCH PUSHBUTTON DPDT 5A 125V NKK Switches |
2,012 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Red | LED, Red | 1.85 VDC | Solder Lug | - | Spot LED | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
HB16SKW01-5F-FBSWITCH PUSH SPDT 0.1A 30V NKK Switches |
4,876 |
|
Datasheet |
HB | Box | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 100mA (AC/DC) | 30 V | 30 V | Square, Button | No Marking | Green | LED, Green | 2.1 VDC | Solder Lug | - | - | Circular - 8.00mm Dia | -25°C ~ 50°C |
|
LP0125CCKW01CSWITCH PUSHBUTTON DPDT 3A 125V NKK Switches |
3,230 |
|
Datasheet |
LP01 | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Red | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|

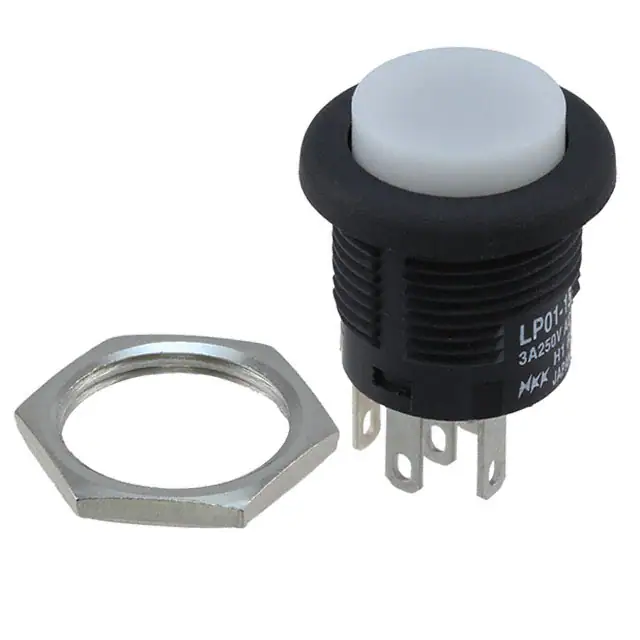

LP0115CCKW015CBSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
4,485 |
|
Datasheet |
LP01 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | White | LED, Red | 2.05 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 16.00mm Dia | -10°C ~ 50°C |
|
LB26RKW01SWITCH PUSHBUTTON DPDT 3A 125V NKK Switches |
4,372 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 22.40mm x 16.20mm | -25°C ~ 70°C |
|
LB15CKW01-5C-JCSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
3,917 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 1.9 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
|

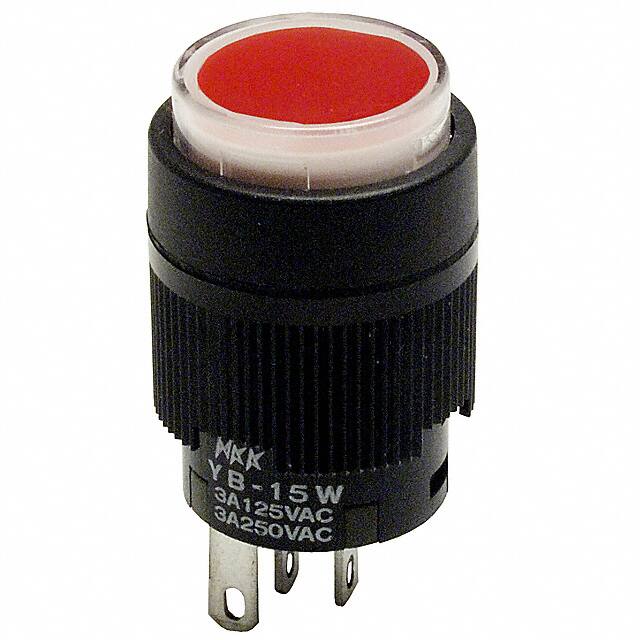

YB15WCKW01-5C-JCSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
2,485 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 1.9 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
YB15MKW01-6G-JBSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
4,358 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue | 3.6 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 50°C |
|

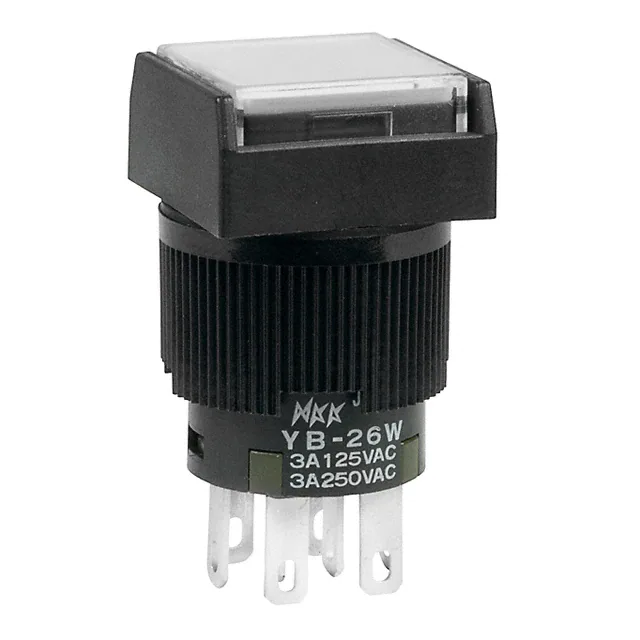

YB26WSKW01-1F05-JASWITCH PUSHBUTTON DPDT 3A 125V NKK Switches |
3,370 |
|
Datasheet |
YB | Bulk | Last Time Buy | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Black Filter/Diffuser) | LED, Green | 5 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Voltage Reduction Lighting | Circular - 16.00mm Dia | -25°C ~ 50°C |
|

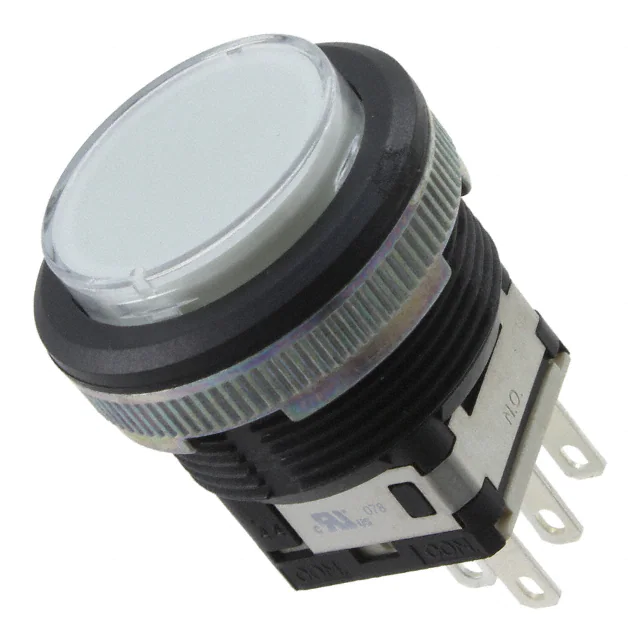

LB15WKW01-6B-JBSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
3,190 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, White | 3.3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
